IR Dome camera 1/2.9 CMOS 1.0Mp/720p 2.8-12mm lens 8pcs LED 49ft IR

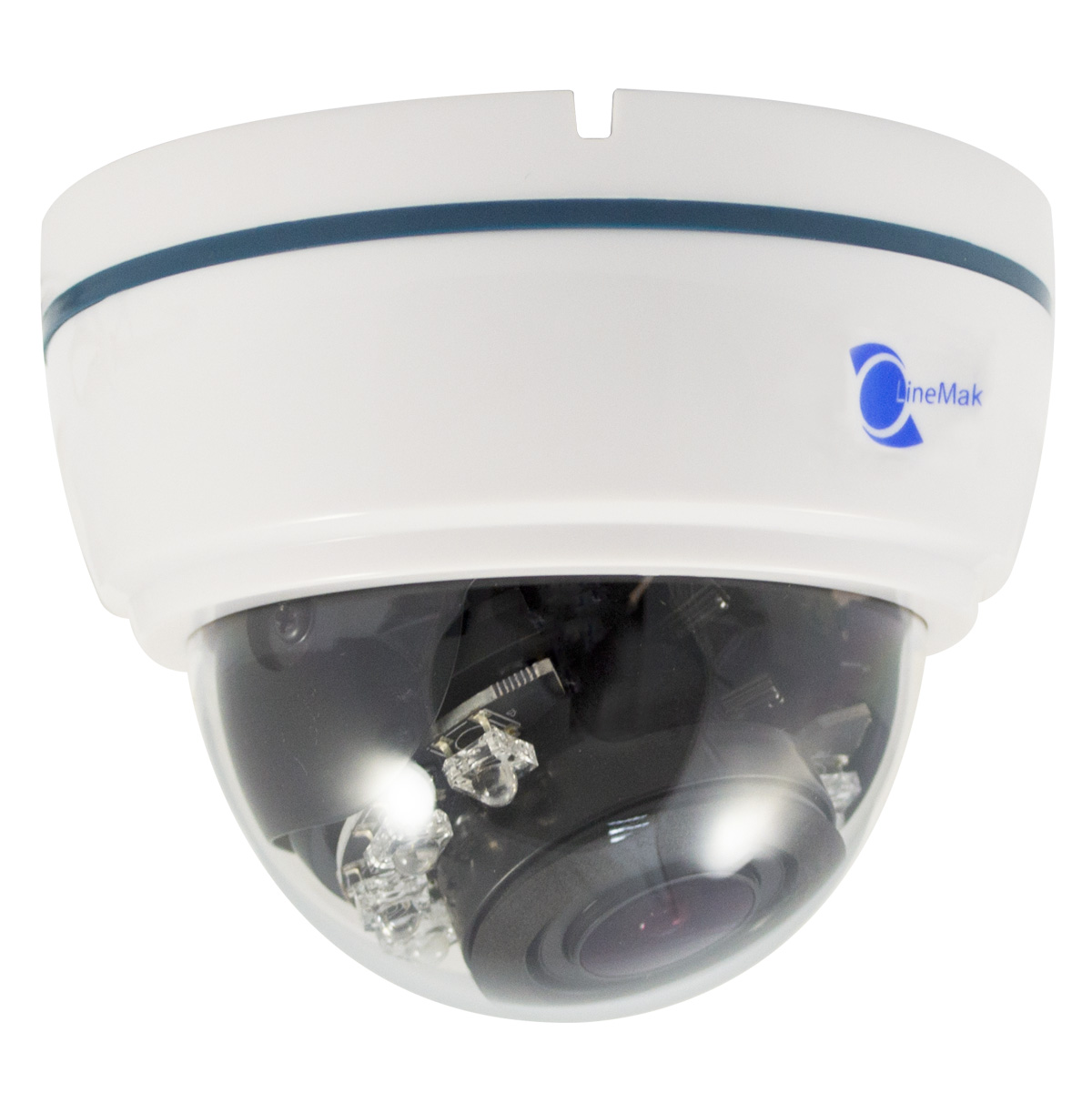

  • IR Dome camera 1/2.9 CMOS 1.0Mp/720p 2.8-12mm lens 8pcs LED 49ft IR - Image 1

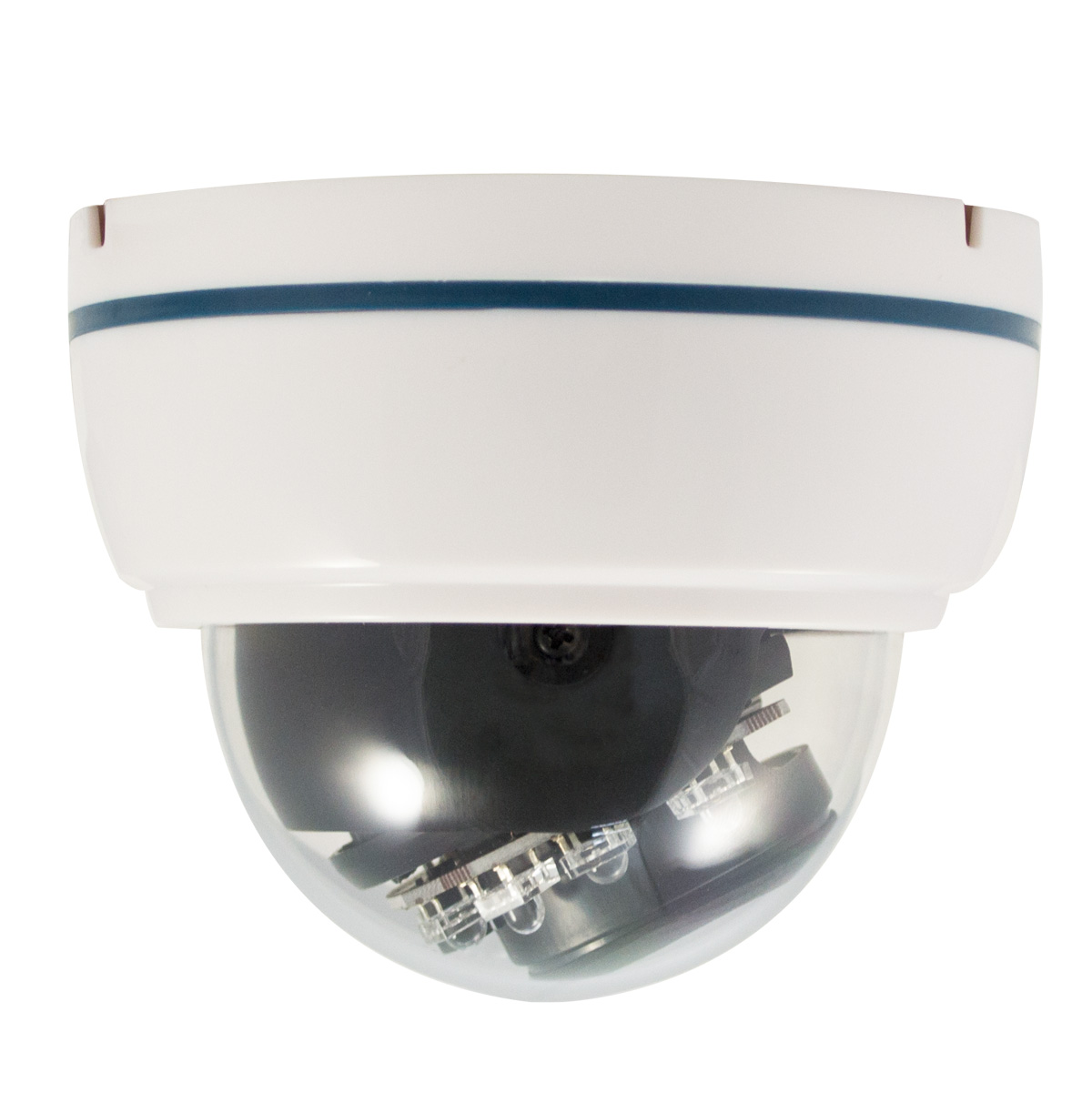

  • IR Dome camera 1/2.9 CMOS 1.0Mp/720p 2.8-12mm lens 8pcs LED 49ft IR - Image 2

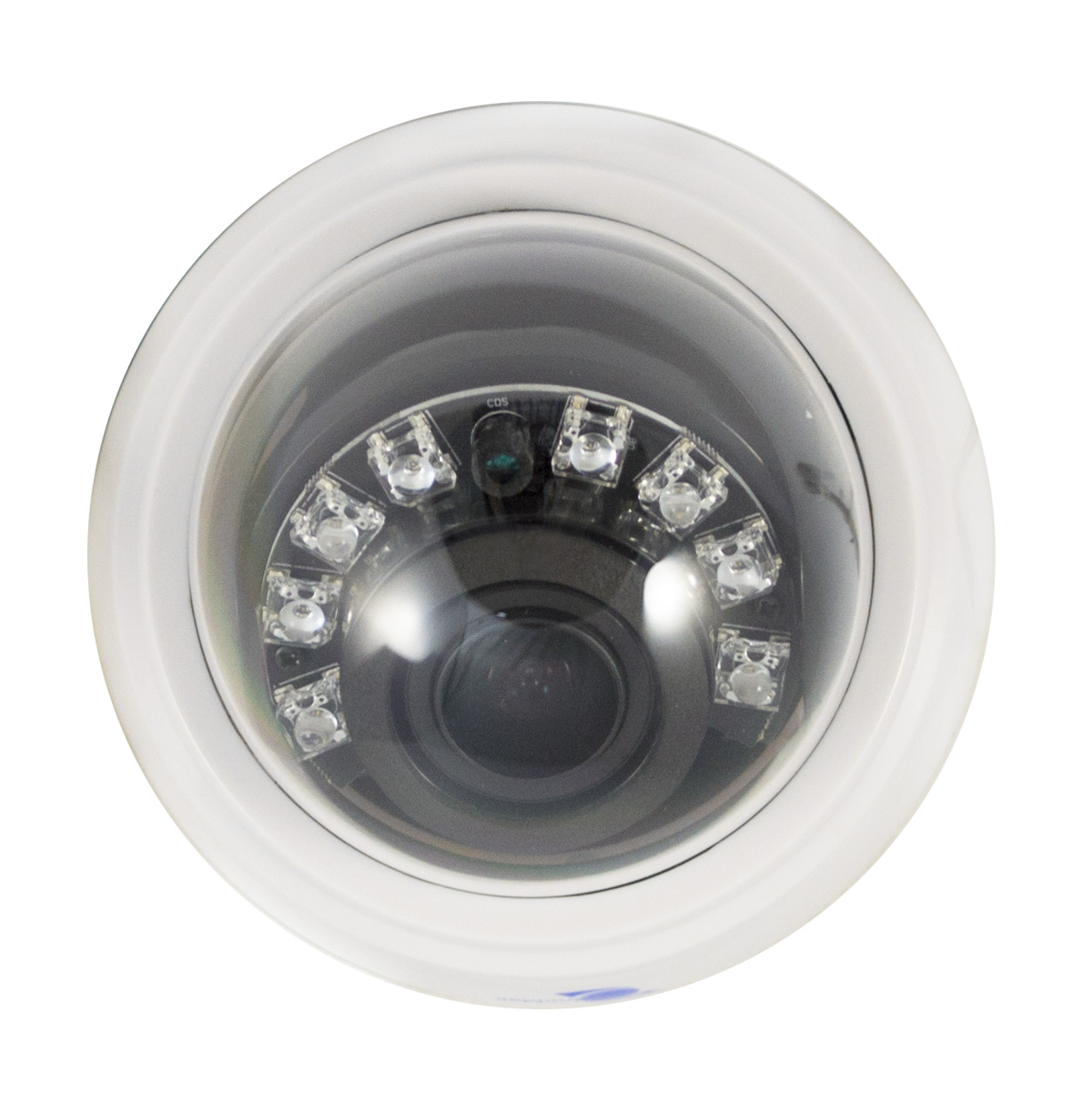

  • IR Dome camera 1/2.9 CMOS 1.0Mp/720p 2.8-12mm lens 8pcs LED 49ft IR - Image 3
  • - 1/3" CMOS Sensor, 1.0Mp/720P.
  • - 8pcs LEDs, 49ft IR distance.
  • - AWB and AGC functions.
  • - Power adapter not included.
  • - 2.8-12mm varifocal lens.
  • - 25°~115° viewing angle.
Products recommendaded to work with this item:
ir dome camera 1/2.9 cmos 1.0mp/720p 2.812mm lens 8pcs led 49ft ir
+
bnc crimpeable connector
+
dc12v 1a power adapter specially for security cameras
Price for all 3: $65.97
  • IR plastic dome camera high-resolution, with a 2.8~12mm varifocal lens and a viewing angle of 115°~25º which has a 49ft IR range night vision, and 8pcs piranha LEDs.

    This equipment can be easily installed anywhere going unnoticed thanks to its size. Due to its slightly tilted crystal, the IR is not reflected on the surface. Its resolution, sensitivity and wide opening angle are perfect for monitoring stores, offices, shops, warehouses and anywhere with little or no light.

    Use any of our servers and Digital Video Recorders (DVR) for best results regarding image quality. See this camera online through any of our recording systems.

    Power adapter not included.
    This camera does not include power supply since it depends on the installer or the consumer on how they will supply power. We sell individual power supply with different amps and centralized power supply. It all depends on the requirements needed for the installation. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.
    HD video
    HD video
    Large areas are covered by a single lens which straight-up great picture quality, design and features.
    True Day/Night for round-the-clock surveillance
    Our day/night cameras with true day/night (ICR) deliver a sharp image in low light and nighttime conditions. There is also real solution to day and night surveillance applications with lenses that deliver clear and sharp color images in daylight and black and white images in darkness using near infrared illumination, without the need to refocus the lens.
    True Day/Night for round-the-clock surveillance
    Automatic Gain Control (AGC)
    Automatic Gain Control (AGC)
    Automatic gain control boosts the video signal coming from the imager to amplify and improve scene illumination.
    IR illumination gives your cameras night vision
    IR illumination provides an extra source of invisible infrared light for surveillance when existing ambient light is either not present or too dim. And it is designed to be easily integrated into the IP network surveillance system and powered by PoE.
    IR illumination gives your cameras night vision
    Varifocal
    Varifocal
    Rely on our lenses with the capability of varying its focal length in order to zoom in on images. Adjust their focal length anywhere between their designated range. Varifocal lenses offer more flexibility, which allow the field of view to be adjusted manually. You can also get the view required rather than the limited by the constraints of the fixed Lens.
    Auto White Balance (AWB)
    Function seeking to compensate the backlight events in order to prevent the camera from dazzling with great intensity of light received and so produce an unsatisfactory image. AWB may be entirely sufficient for camera positions with non-traditional environmental illumination changes.
    Auto White Balance (AWB)
    Automatic Electronic Shutter (AES)
    Automatic Electronic Shutter (AES)
    To determine the overall video brightness, it is necessary for cameras to be able to measure an actual scene illumination, being auto-iris the most advanced and commonly used method nowadays. In order to get this, the camera measures the light level and then adjusts the motorized iris in the auto-iris Lens.
    Warranty: One (1) Year
  • IR Dome camera 1/2.9 CMOS 1.0Mp/720p 2.8-12mm lens 8pcs LED 49ft IR
    General
    Brand LineMak
    Model LS-NCDETIRHCV100
    Sensor
    Resolution 1.0MP / 720p
    Sensor 1/3" CMOS
    Effective pixels 1280*720
    Video
    Frame rate PAL: 1280*720@25fps / 1280*720@50fps
    NTSC: 1280*720@30fps / 1280*720@60fps
    Lens
    Lens 2.8mm - 12mm Varifocal
    IR Range 49ft night vision
    LEDs 8pcs LEDs Piranha
    Minimum illumination 0.01Lux (F1.2, with AGC ON)
    0 Lux (with LED on)
    Viewing angle 25° ~ 115°
    IR Power ON CDS Auto Control
    IR Status Under 10 Lux by CDS
    Environment
    Operation temperature -10°C ~ 45°C
    14ºF ~ 113ºF
    Storage temperature -30°C ~ 60°C
    -22ºF ~ 140ºF
    Power
    Power supply DC 12V
    Power consumption 150mA
    Appearance
    Size 4.3(L) * 3.9(H) * 4.3 (W) inches
    Weight 7.77 pounds
    Special function
    Auto White Balance (AWB) Yes
    Electronic shutter speed (AES) 4/25s~1/45,000s
    Auto Gain Control (AGC) Yes
