Bullet camera 1/4 HD Sensor 700TVL 3.6mm lens 24 LEDs 33-49ft IR IP66

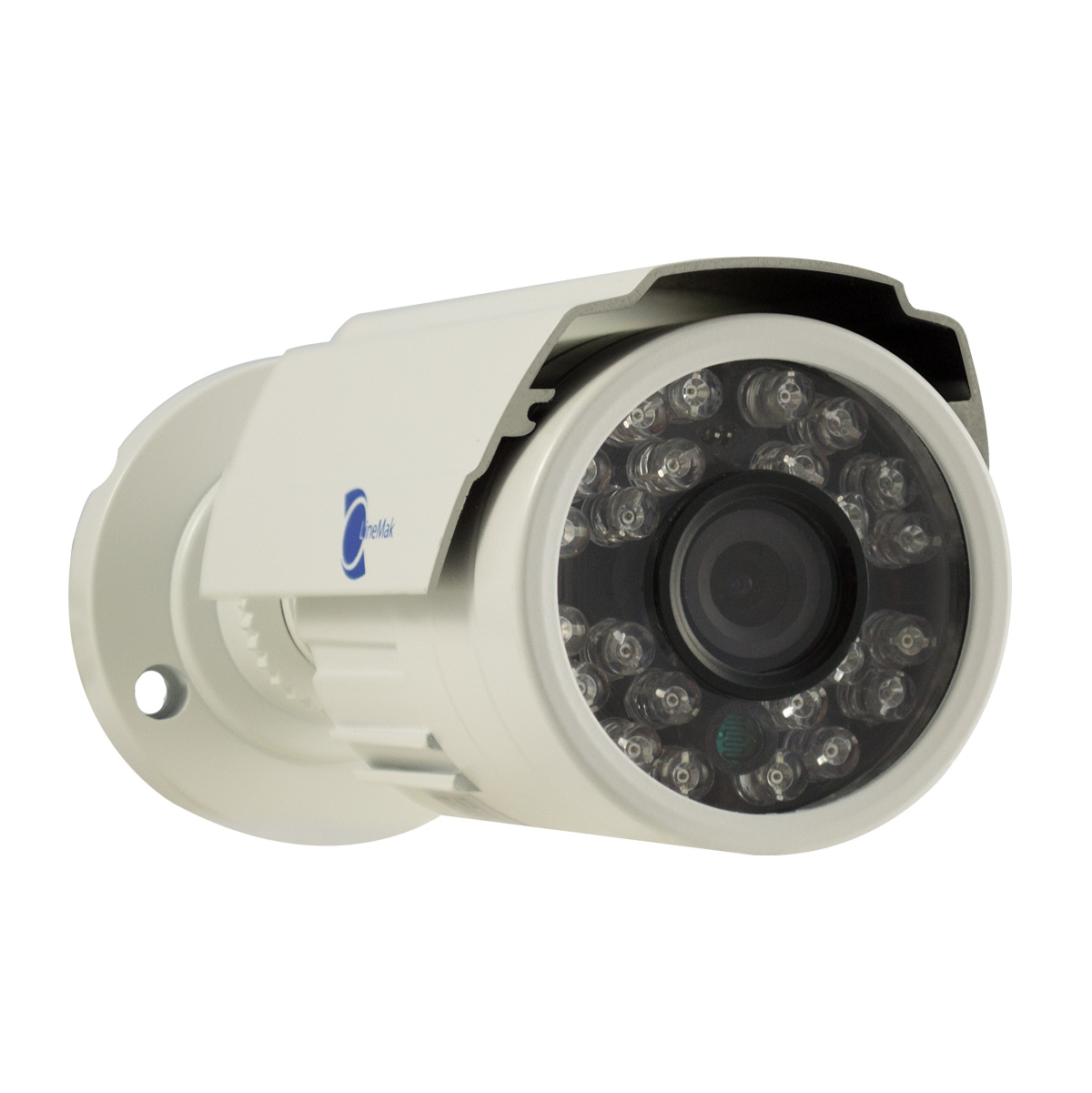

  • Bullet camera 1/4 HD Sensor 700TVL 3.6mm lens 24 LEDs 33-49ft IR IP66 - Image 1

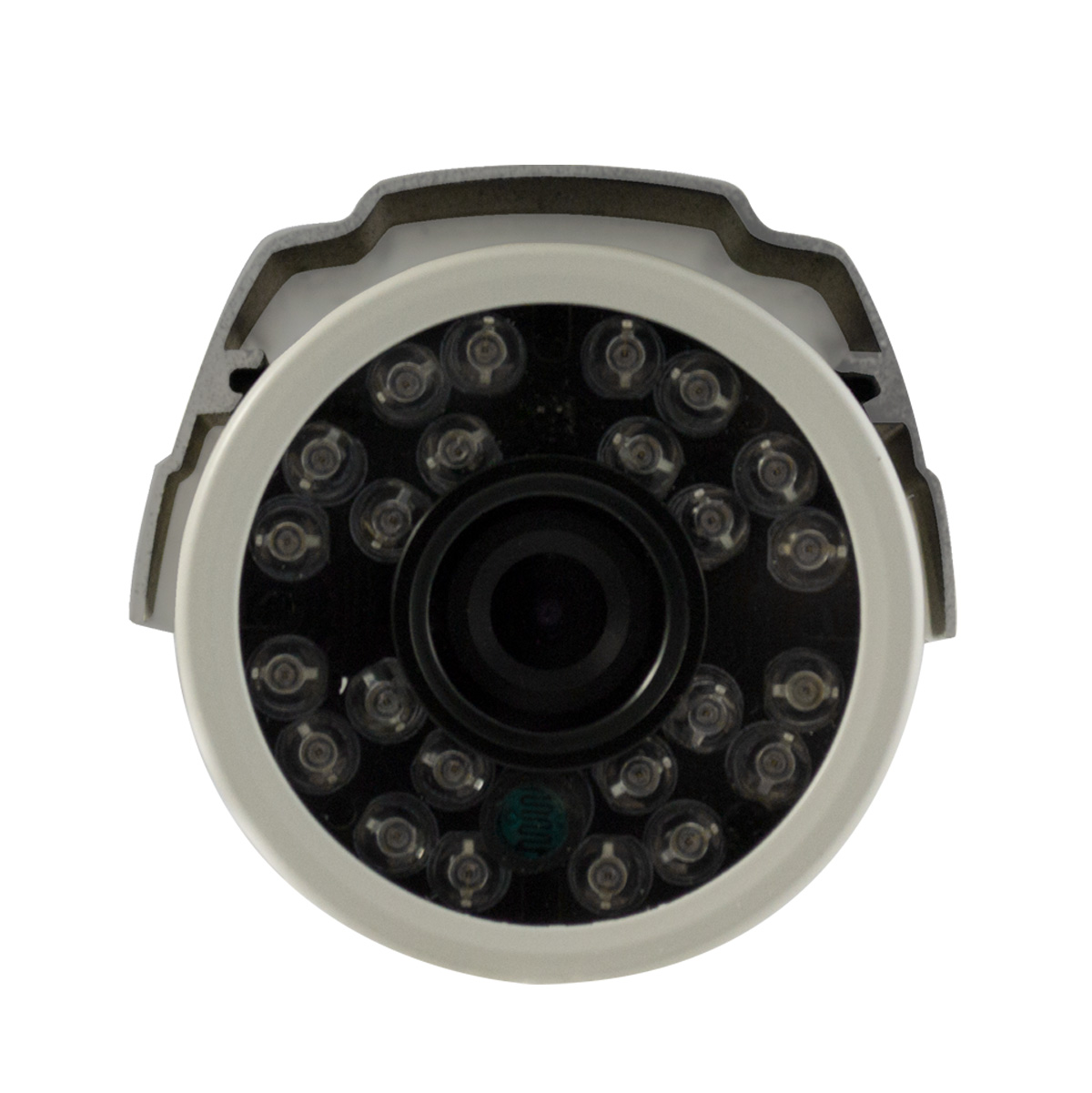

  • Bullet camera 1/4 HD Sensor 700TVL 3.6mm lens 24 LEDs 33-49ft IR IP66 - Image 2

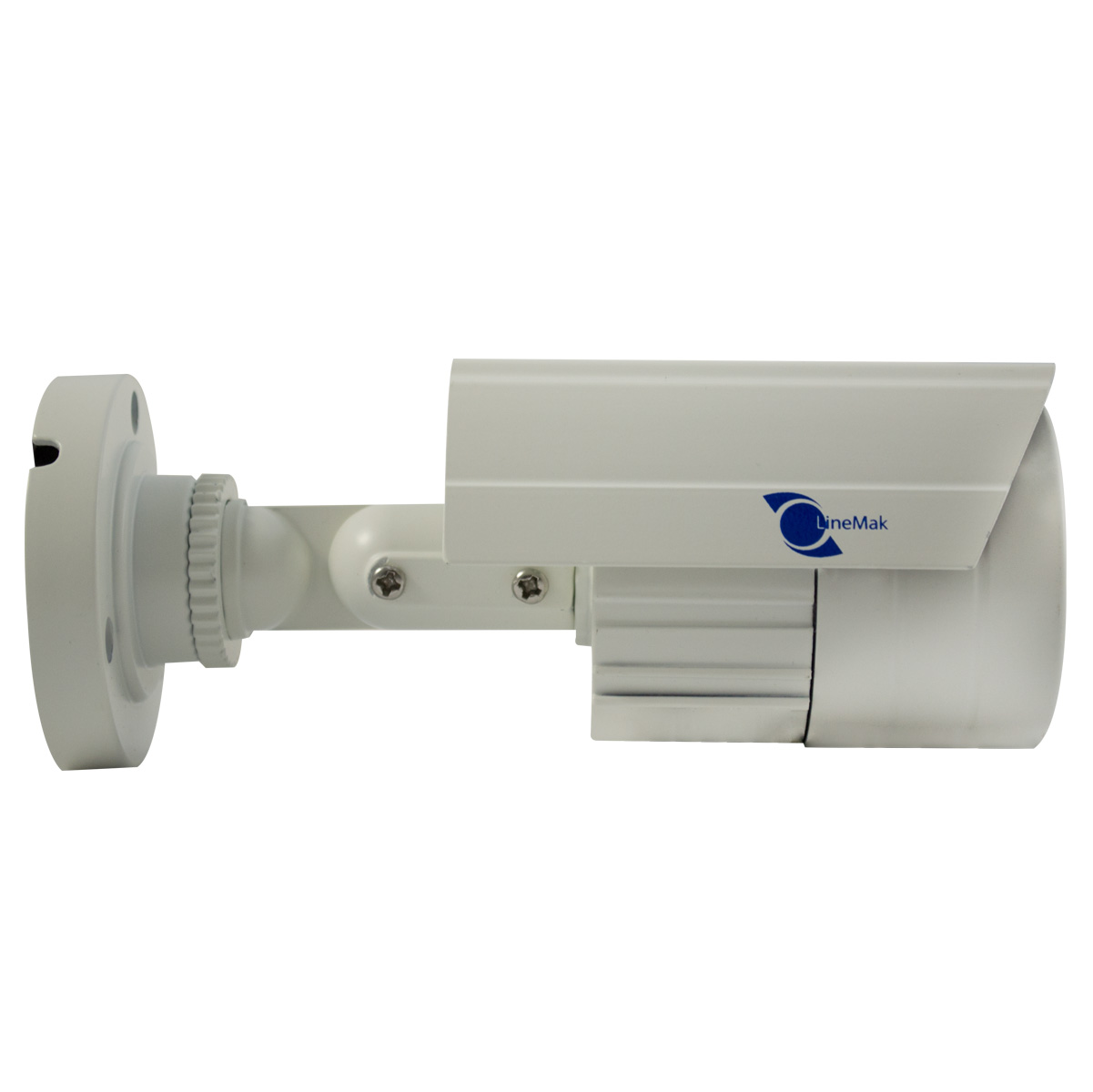

  • Bullet camera 1/4 HD Sensor 700TVL 3.6mm lens 24 LEDs 33-49ft IR IP66 - Image 3
  • - AES, AGC, AWB, BLC and mirror function.
  • - IP66 Weatherproof
  • - 24pcs LEDs, 33ft ~ 49ft IR distance.
  • - Power adapter not included.
  • - 3.6mm lens. 70° viewing angle
  • - Real day/night feature.
Products recommendaded to work with this item:
bullet camera 1/4 hd sensor 700tvl 3.6mm lens 24 leds 3349ft ir ip66
+
video balun passive 2000ft, contains 6 pairs 12 pcs.
+
16ch dvr, h264/g711a, vga/bnc/hdmi output, cif resolution, pentaplex
+
dc12v 1a power adapter specially for security cameras
Price for all 4: $151.96
  • Metal IR waterproof high-resolution bullet camera with a 3.6mm lens, a viewing angle of 70° which has a 33ft ~ 49ft range of infrared night vision and 24pcs LEDs.

    Top of the line equipment regarding sensor and driver.

    This equipment is designed for outdoors usage and can be easily installed anywhere going unnoticed thanks to its size.

    Its resolution, sensitivity and wide opening angle are perfect for monitoring stores, offices, shops, warehouses and anywhere with little or no light.

    For best results, regarding image quality, use our servers and digital video recorders (DVR). See this camera online through any of our recording systems.

    Hinged base included.

    Power adapter not included.
    This camera does not include power supply since it depends on the installer or the consumer on how they will supply power. We sell individual power supply with different amps and centralized power supply. It all depends on the requirements needed for the installation. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.

    Main features:
    - Weatherproof IR camera.
    - 24pcs LED (5mm each).
    - 33ft to 49ft IR distance.
    - Water resistance: IP66.
    - Real day/night feature.
    - 3.6mm Lens.
    - AWB support function: high color reproduction and real image.
    - BLC support function: suitable for objects monitoring under backlight environment.
    - AES support function: adapt to different monitoring environment.
    - AGC support function: adaptive brightness.
    - It uses an advanced double loop glass design for clearer images.
    Weatherproof cameras in a year-round protection
    Weatherproof cameras in a year-round protection
    Our outdoor weatherproof cameras feature at least an IP66 weather rating. These outdoor cameras are built to keep out small particles such as dust and water, and are unaffected by a range of weather conditions including heavy rain and snow.
    IR illumination gives your cameras night vision
    IR illumination provides an extra source of invisible infrared light for surveillance when existing ambient light is either not present or too dim. And it is designed to be easily integrated into the IP network surveillance system and powered by PoE.
    IR illumination gives your cameras night vision
    Automatic Gain Control (AGC)
    Automatic Gain Control (AGC)
    Automatic gain control boosts the video signal coming from the imager to amplify and improve scene illumination.
    Automatic Electronic Shutter (AES)
    To determine the overall video brightness, it is necessary for cameras to be able to measure an actual scene illumination, being auto-iris the most advanced and commonly used method nowadays. In order to get this, the camera measures the light level and then adjusts the motorized iris in the auto-iris Lens.
    Automatic Electronic Shutter (AES)
    Back Light Compensation (BLC)
    Back Light Compensation (BLC)
    In the security cameras, the BLC is a function that seeks to compensate the backlight situations to prevent the camera dazzles with great intensity of light received and produce an unsatisfactory image.
    Auto White Balance (AWB)
    Function seeking to compensate the backlight events in order to prevent the camera from dazzling with great intensity of light received and so produce an unsatisfactory image. AWB may be entirely sufficient for camera positions with non-traditional environmental illumination changes.
    Auto White Balance (AWB)
    True Day/Night for round-the-clock surveillance
    True Day/Night for round-the-clock surveillance
    Our day/night cameras with true day/night (ICR) deliver a sharp image in low light and nighttime conditions. There is also real solution to day and night surveillance applications with lenses that deliver clear and sharp color images in daylight and black and white images in darkness using near infrared illumination, without the need to refocus the lens.
    Waterproof
    Waterproofing, defined as the resistance of the passage of water under hydrostatic head pressure, provide reliable solutions for all waterproofing designs and conditions.
    Waterproof
    Warranty: One (1) Year
  • Bullet camera 1/4 HD Sensor 700TVL 3.6mm lens 24 LEDs 33-49ft IR IP66
    General
    Brand LineMak
    Model LS-CI341H
    Sensor
    Resolution 700TVL
    Sensor 1/4" HD Digital
    Effective pixels PAL: 752*582
    NTSC: 768*494
    Video
    Video format PAL / NTSC
    Video output 1.0Vp-p, 75ohm
    Lens
    Lens 3.6mm
    IR Range 33ft ~ 49ft night vision
    LEDs 24pcs (5mm each)
    IR-CUT Filter Yes
    Minimum illumination 0 Lux (with LED on)
    Viewing angle 70°
    Environment
    Operation temperature -20ºC ~ 50ºC
    4ºF ~ 122ºF
    Weatherproof standard IP66 (protection against dust and strong water pressure)
    Power
    Power supply DC 12V
    Power consumption 500mA
    Appearance
    Color White
    Size 5.91(L) * 2.17(H) * 2.17(W) inches
    Weight 9.52 ounces
    Special function
    Back Light Compensation (BLC) Included
    Auto White Balance (AWB) Included
    Electronic shutter speed (AES) PAL: 1/50 ~ 1/100,000 sec
    NTSC: 1/60 ~ 1/100,000 sec
    Auto Gain Control (AGC) Included
    Standard
    Scanning system 2:1 Interlace
    Synchronizing system Internal
    S/N Ratio >48dB
    Gamma correction >0.45
  • Instrucción
    File Size: 493.56 Kb
    Languages: Spanish
    File Type: PDF
    Instructions
    File Size: 448.41 Kb
    Languages: English
    File Type: PDF
