16Ch DVR, H264, BNC/VGA/HDMI outputs, 960H resolution, Pentaplex, DVR

COMING SOON

- 960H resolution.
- P2P cloud services.
- Mobile surveillance: iOS, Windows Mobile, BlackBerry, Symbian and Android.
- Hard drive not included.
- 3G dialing with Wi-Fi module extension support.
- Multiple web browsers support.

Products recommendaded to work with this item:

ir dome camera, cmos sensor, 900tvl, 3.6mm lens, 1 led array, 49ft ir

ir dome camera 1/3 hd sensor, 900tvl, 3.6mm lens 24 led 65ft ir ircut

seagate barracuda 1 tb hdd sata 6 gb/s ncq 64mb cache

Price for all 4: $343.96

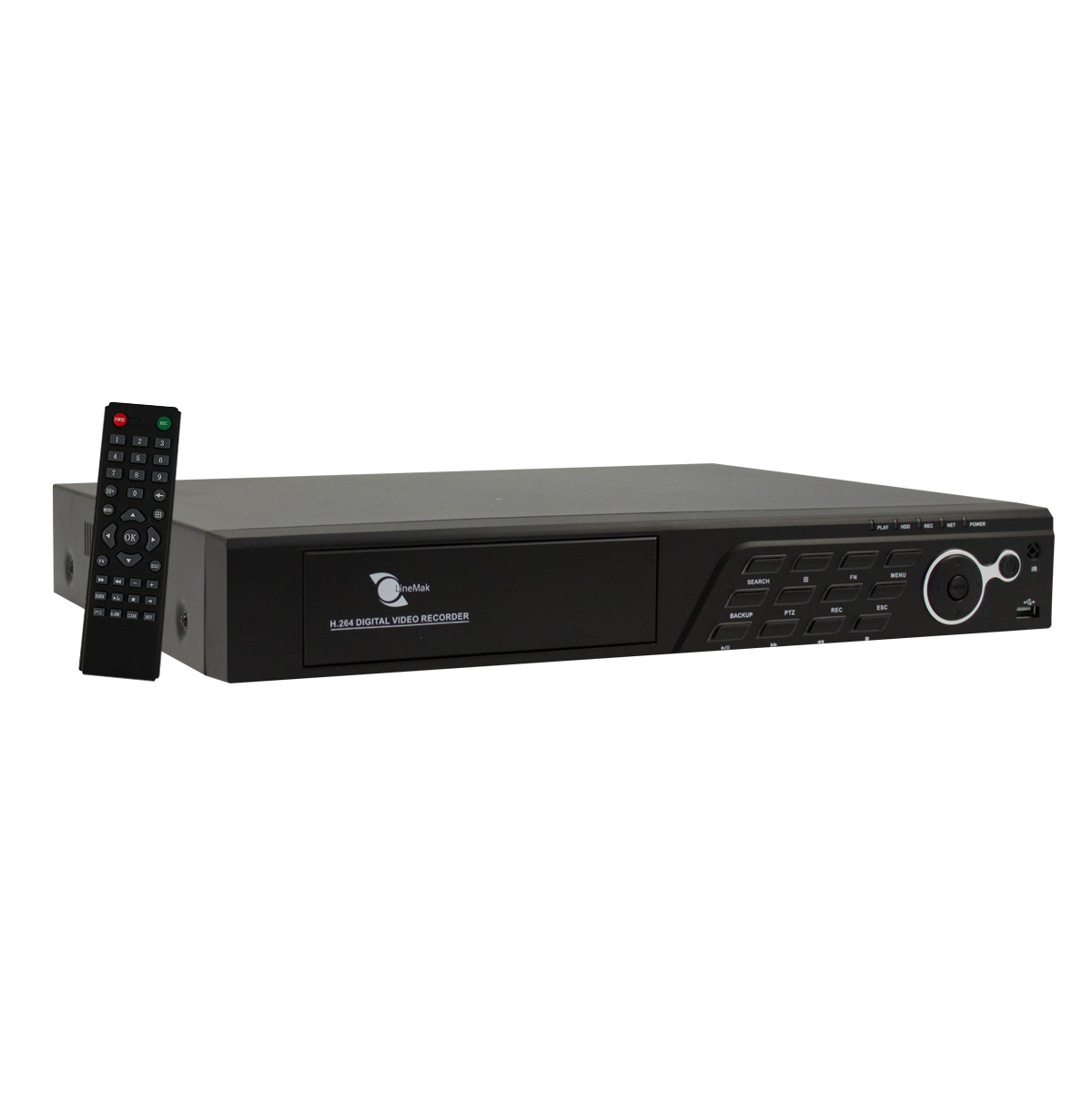

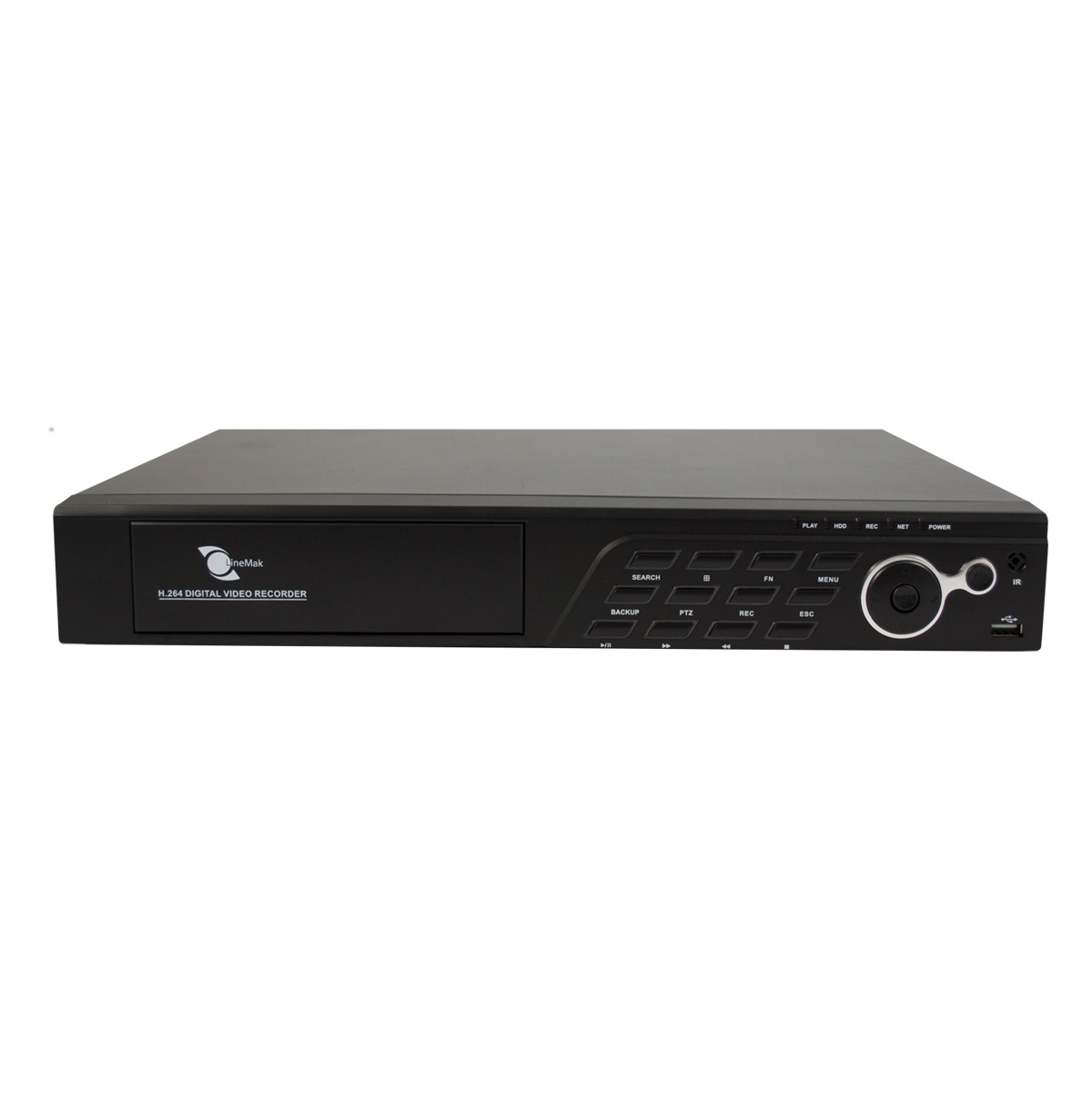

16Ch DVR, H264, BNC/VGA/HDMI outputs, 960H resolution, Pentaplex

IR Dome Camera, CMOS Sensor, 900TVL, 3.6mm lens, 1 LED Array, 49ft IR

IR dome camera 1/3 HD Sensor, 900TVL, 3.6mm lens 24 LED 65ft IR IR-CUT

Seagate Barracuda 1 TB HDD SATA 6 Gb/s NCQ 64MB Cache

Product Features Specifications Download

This easy to use DVR (Digital Video Recorder) features an English menu and motion detection recording. Monitor your cameras on the internet from anywhere through your PC, mobile cellphone (Android, iPhone) or tablet (Android, iPad) in real time. Mouse and remote control included.

This video surveillance equipment can record images registered by their cameras and is very easy to use.

Multiple recording modes: Manual, timing, motion detection, video blind and video loss recording.
Control method: USB control, front panel, network control and remote control.
Compatible with WIN98 / WIN2000 / WIN XP / WIN VISTA / WIN SEVEN.

Main features:
- Easy access to the Internet for remote monitoring via P2P cloud services. No multifarious network settings needed.
- 3G dialing support, Wi-Fi module extension and multifarious of mobile phone monitoring (iPhone, Windows Mobile, BlackBerry, Symbian and Android).
- Multiple web browsers support (IE, Chrome, Firefox and Safari).
- 2 USB port to support mouse, backup, burn and upgrade etc.
- Over 20 different languages (English, Finnish, French, German, Greek, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai, Chinese, traditional Chinese and Turkish, etc.).
- Flexible display and free replacement boot interface.

Hard drive not included.
This Recorder does not include Hard Drive since it depends on the installer or the consumer on what requirement of Hard Drive capacity they are in need. We sell various types of Hard Drives. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.

HDMI delivers enhanced image clarity

HDMI supports standard, enhanced or HD video. This recorder features an HDMI output which delivers enhanced image clarity with crisp images and enables you to view your security camera video in HD on your HDTV screen. HD images can be reproduced with the HDMI support for HD display.

H.264 video compression reduces storage requirements

H.264 compression greatly reduces the size of your digital video files without compromising image quality. H.264 is a stable, proven compression technology which offers unbeatable recording picture quality and saves you valuable hard drive storage space.

Keep everything under watch with multiple recording modes

Multiple selectable recording options are available such as motion detection, continuous and scheduled recording. This enables you to choose the appropriate recording type for your security needs and to maximize the number of hours of video you can record and store on your hard drive.

Motion detection

Pre-define zones within the area covered by each camera so that the DVR only starts recording when motion is detected within the zone. This saves hard drive space and reduces the amount of video recorded, making it easier to find the video you need if there is an event.

Monitoring 3G

Monitors 3G work like a standard baby monitor system with an iOS device serving as a monitor in the baby's room or anywhere else the baby may be and a second device as the parent's listening station. Since having a baby requires constant monitoring, with a baby monitor 3g you will be able to watch over and provide them with safety and happiness

Remote monitoring Surveillance

Rely on our current and advanced technology by using any top-of-line wireless sensing device for remotely monitoring your goods or property from everywhere, every time. Be able to manipulate your security system through a simple click and have it all watched like you were nearby.

Save money with no contracts and no monthly fees

Once your system is installed, you have the peace of mind that your property is protected with the added advantage of no binding contracts and no recurring monthly subscription fees.

Warranty: One (1) Year

16Ch DVR, H264, BNC/VGA/HDMI outputs, 960H resolution, Pentaplex
General
Brand	LineMak
Model	LS-NTR6616G3
System
Operating system	Embedded Linux
System resources	Multi-channel real time recording and playback,multiple network operation and USB backup
Display
Display area	1/4/8/9/16 (according to the input mode you choose)
Graphic user interface (GUI)	Voice user interface
Video
Resolution	960H
Video format	NTSC
Compression format	H.264
Encode capacity	16ch real time
Decode capacity	16ch real time
Streams	Can be set up in each channel
Recording & Playback
Recording mode	Manual, timing, motion detection, video blind and video loss recording
Local playback	1~16ch playback simultaneously
Search mode	Time, date, motion and channel detection

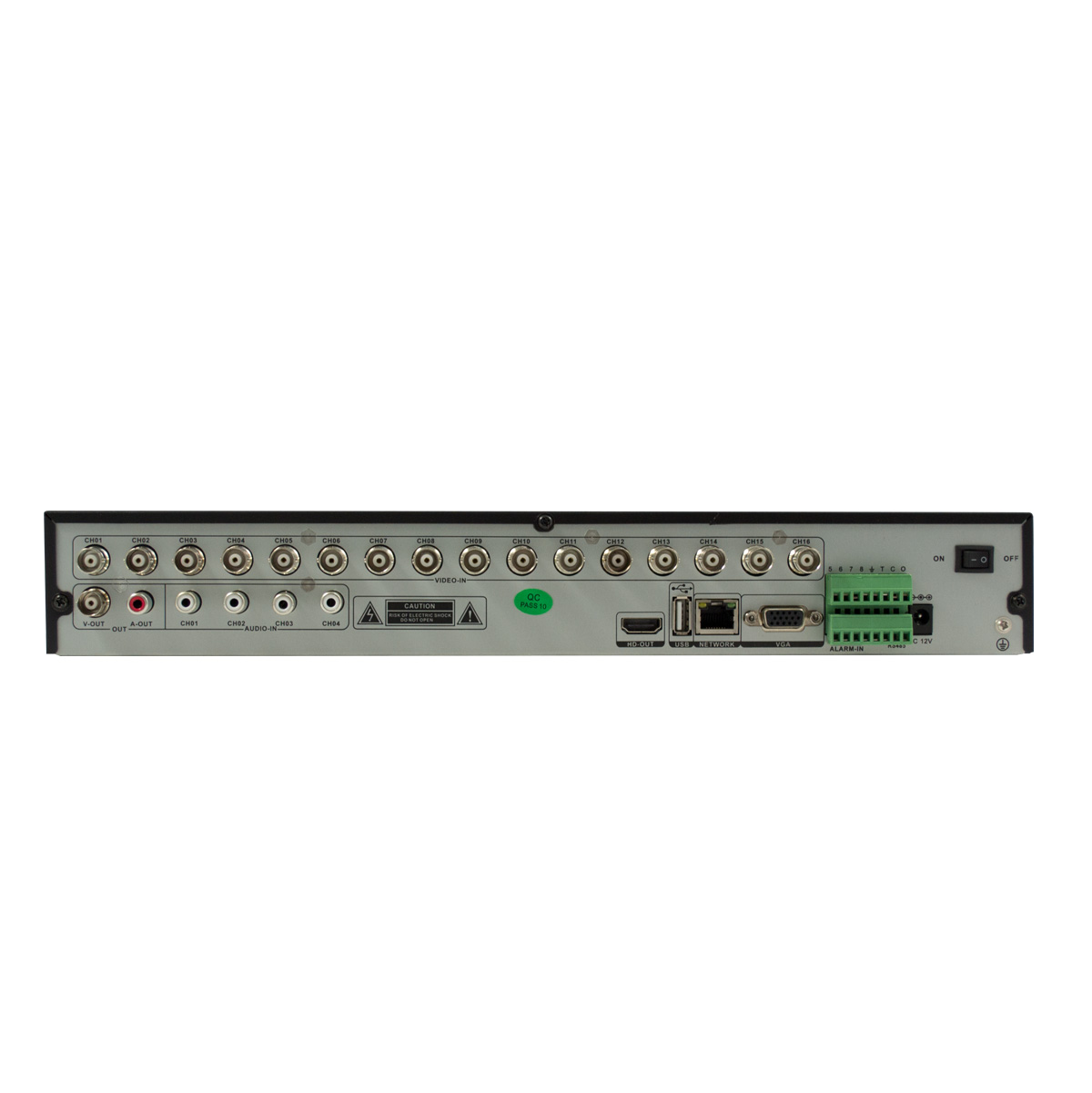

Interface
Video input/output	Input: 16-Ch BNC Output: 1-Ch BNC (1.0Vp-p,75phm), 1-Ch VGA and 1-Ch HDMI
Audio input/output	Input: 4-Ch RCA Output: 1-Ch RCA
Alarm input/output	Input: 8-Ch Output: 1-Ch
PTZ Control	1 RS485 port
USB Port	2 USB 2.0 ports
HDD Port	2 SATA port (up to 3TB each)
Network interface	1 RJ-45,10M/100M self-adaption Ethernet port
Mode control
Operating mode	USB control, front panel, network control, and remote control
Environment
Operation temperature	-10Â°C ~ 55Â°C 14ÂºF ~ 131ÂºF
Working humidity	10% ~ 90%
Power
Power supply	DC 12V/4A
Appearance
Size	12.21(L) * 2.17(H) * 14.97(W) inches
Weight	4.05 pounds

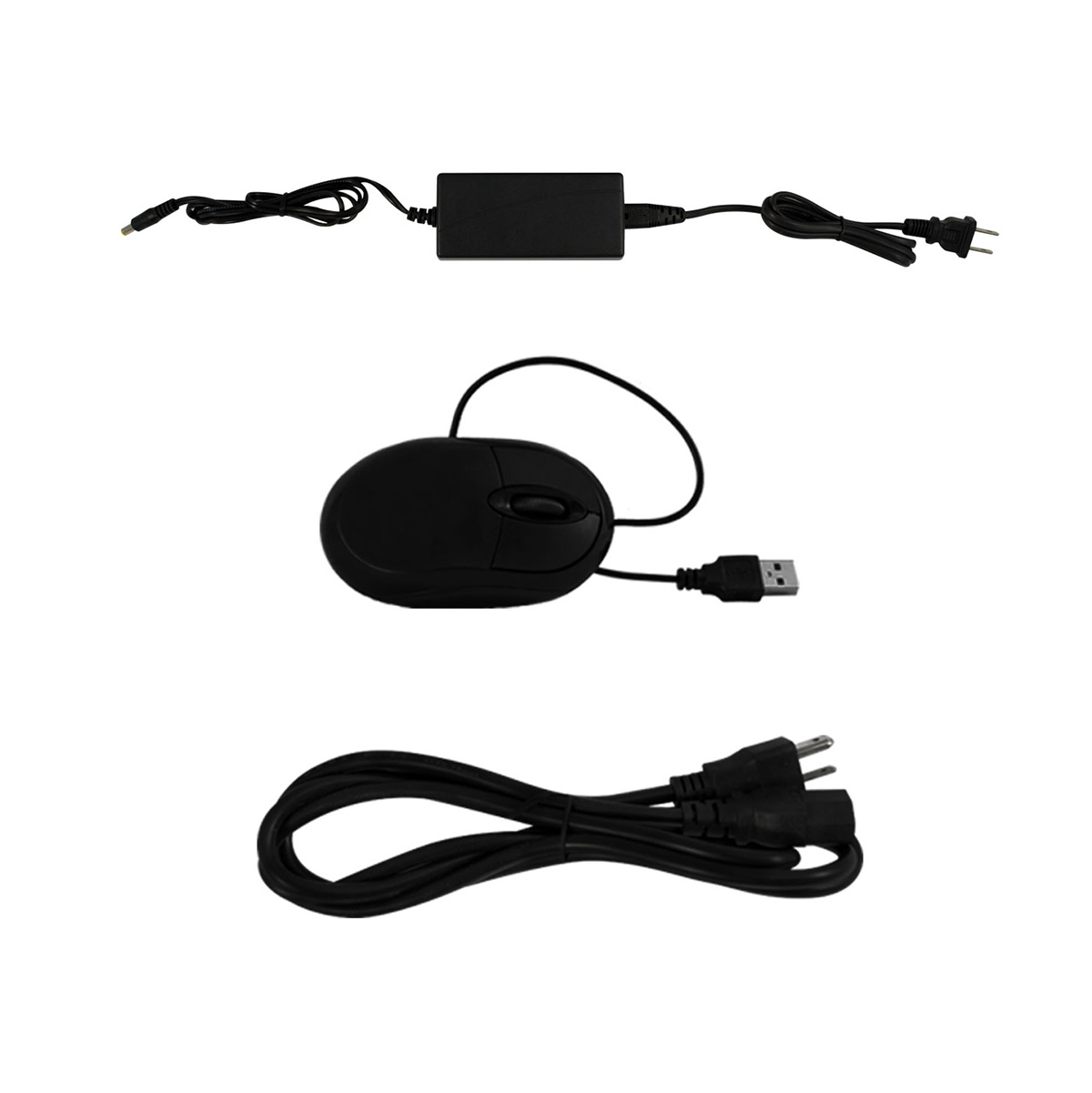

Accessories
Remote control	Yes
Mouse	Yes
