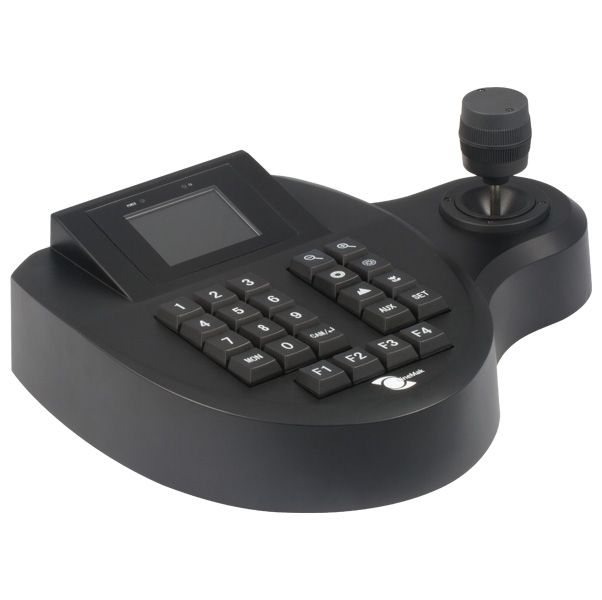

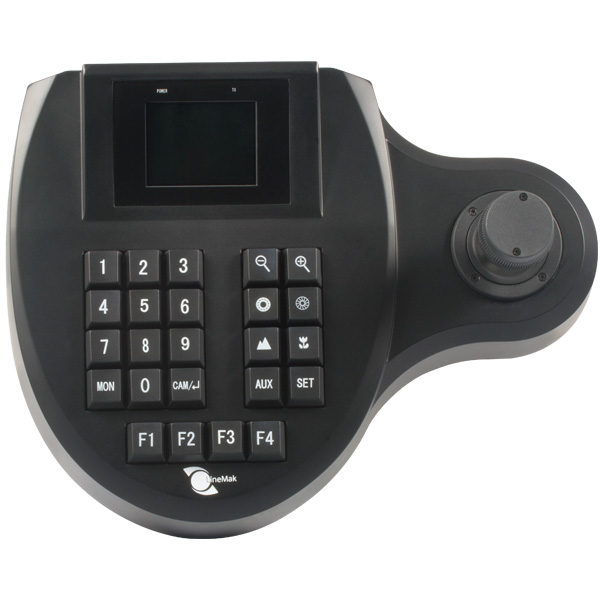

Joystick control for PTZ cameras supports 255 cameras color display
  • Joystick control for PTZ cameras supports 255 cameras color display - Image 1
  • - Joystick for PTZ cameras
  • - Multiprotocol Controller
  • - Protocols: PELCO-P, SANTACHI, PANASONIC.
  • - Available in black.
  • Manual devices of complementary use of security system that go connected to computer and/or camera, whose functionality allows you to control manually the movement?s commands and configurations of your PTZ cameras.

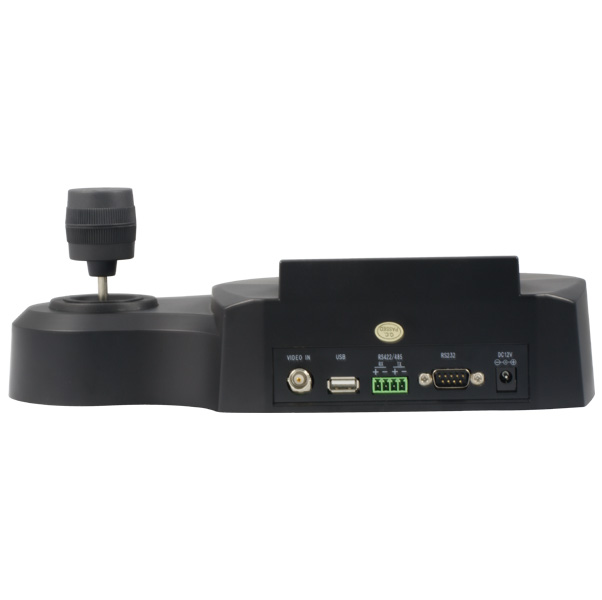

    RS-485/RS-422 Multiprotocol Controller with operation display indicator, easy to use. It de2400/4800/9600/19200Bps communication speeds. It has an RS-232 connector and a USB port. Some protocols with which it works: PELCO-P/4800Bps, PELCO-P/9600Bps, SANTACHI, PANASONIC, among others. Available in black.
    Warranty: One (1) Year
  • Joystick control for PTZ cameras supports 255 cameras color display
    General
    Brand LineMak
    Model LS-C2100S
    LCD Panel
    Monitor 2.5" TFT LCD
    PTZ
    PTZ Control RS485, RS232
    Communication protocol PELCO-P, PELCO-P, SANTACHI, PANASONIC
    Baud rate 2400, 4800, 9600, 19200bps
    Environment
    Operation temperature -10°C ~ 50°C
    Working humidity <90% RH
    Power
    Power supply DC 12V
    Power consumption 1.6W
    Appearance
    Color Black
    Size 8.66(L) * 4.72(H) * 11.81(W) inches
    Weight 2.52 pounds
