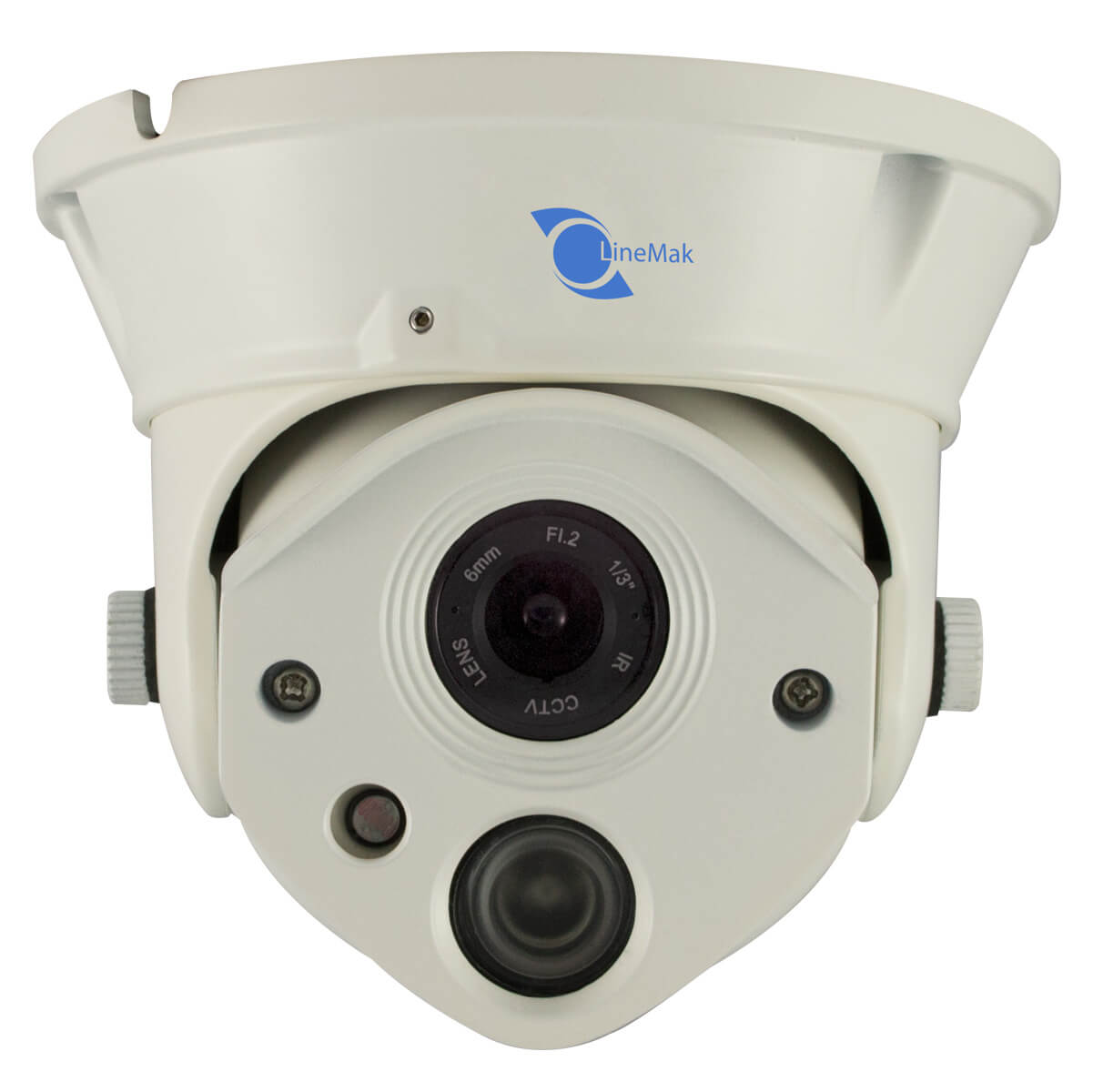

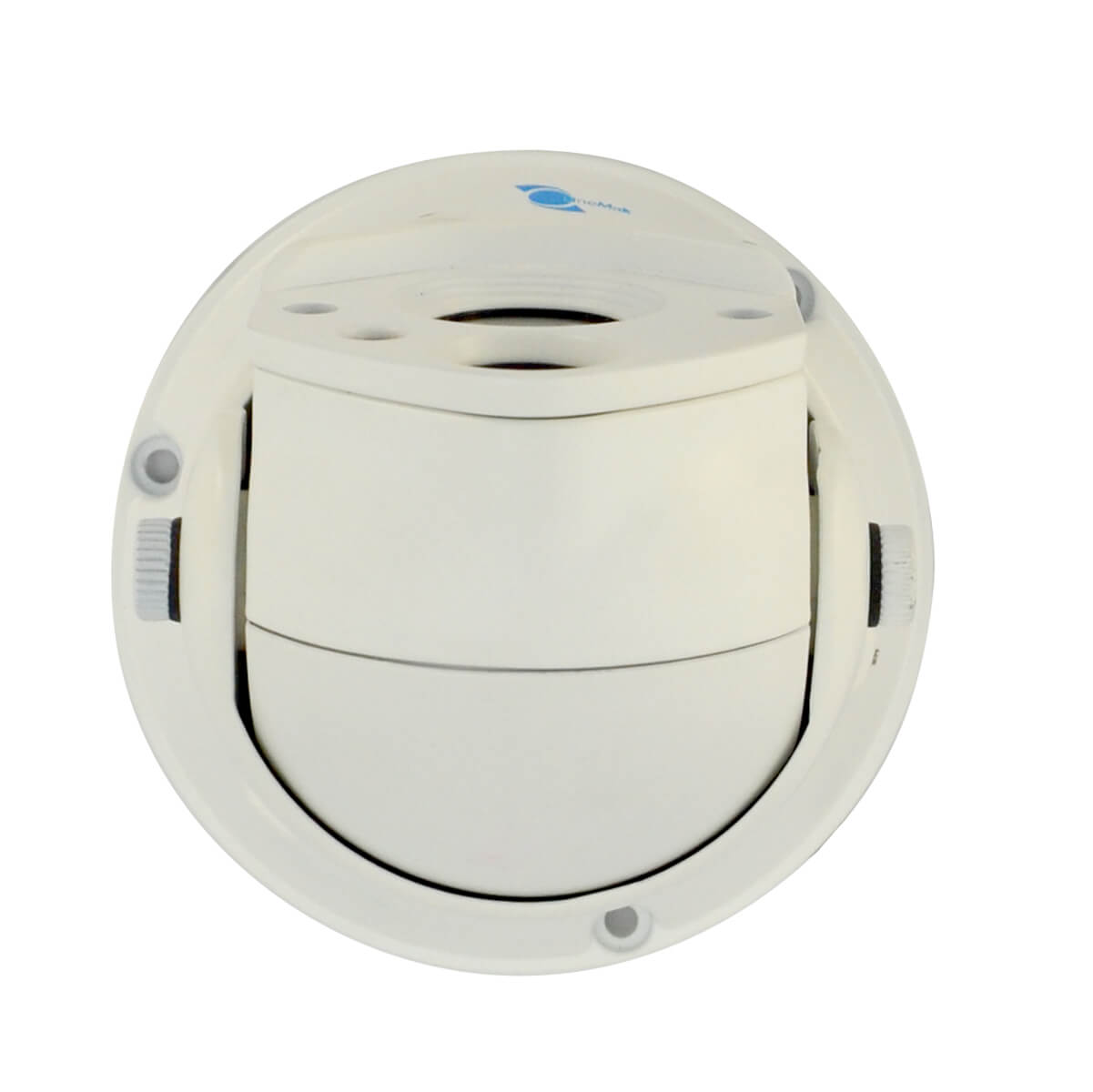

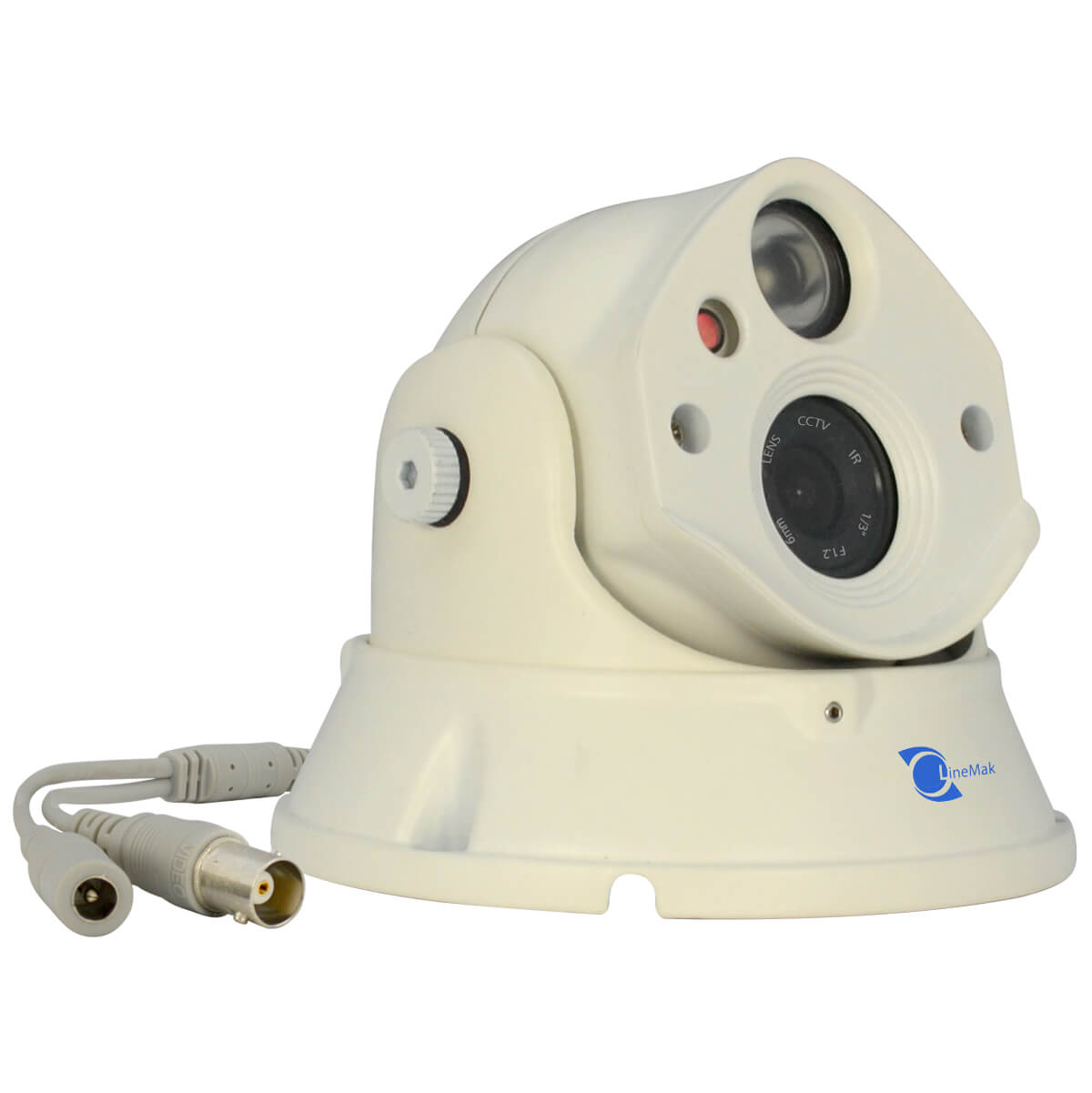

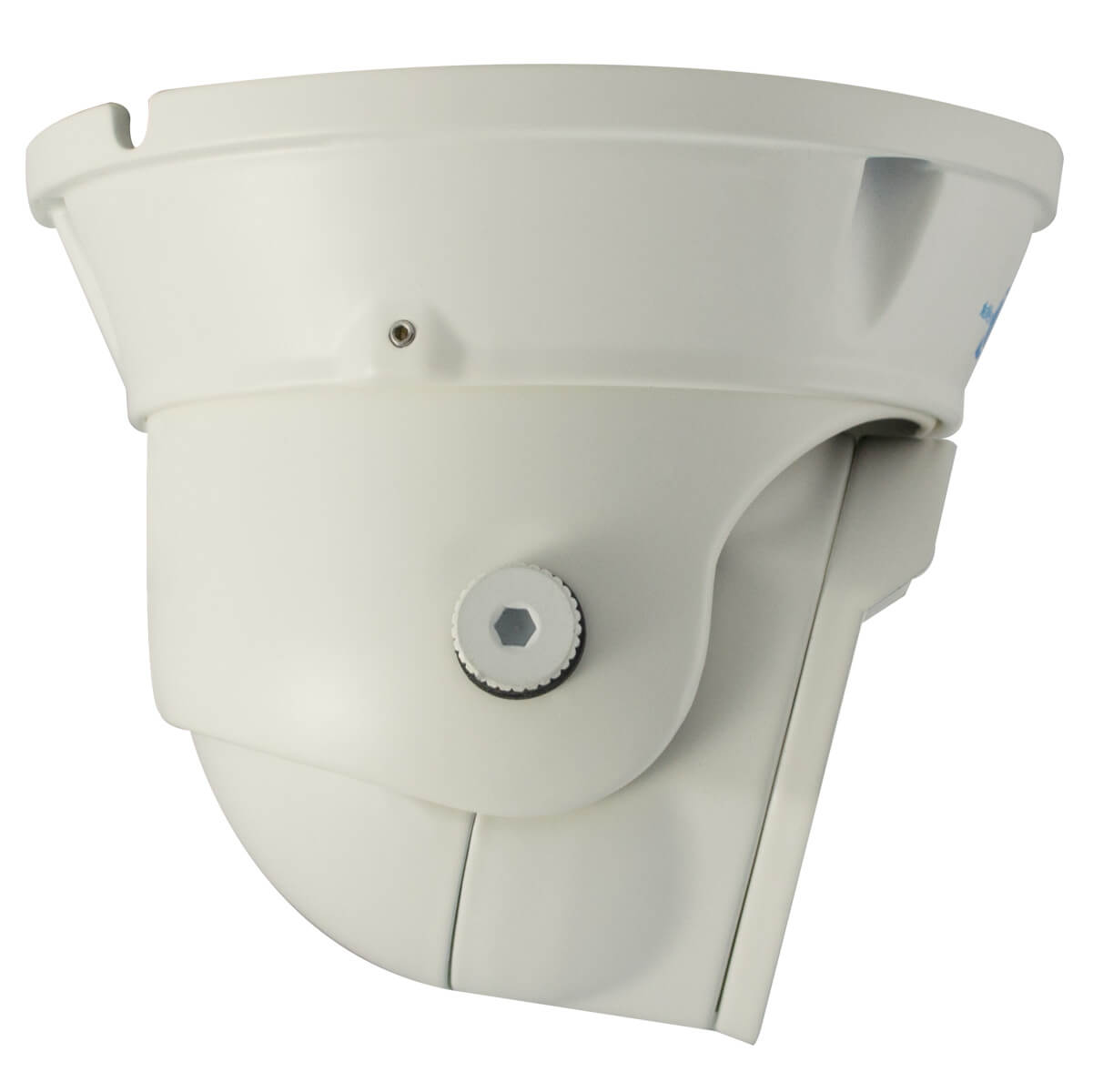

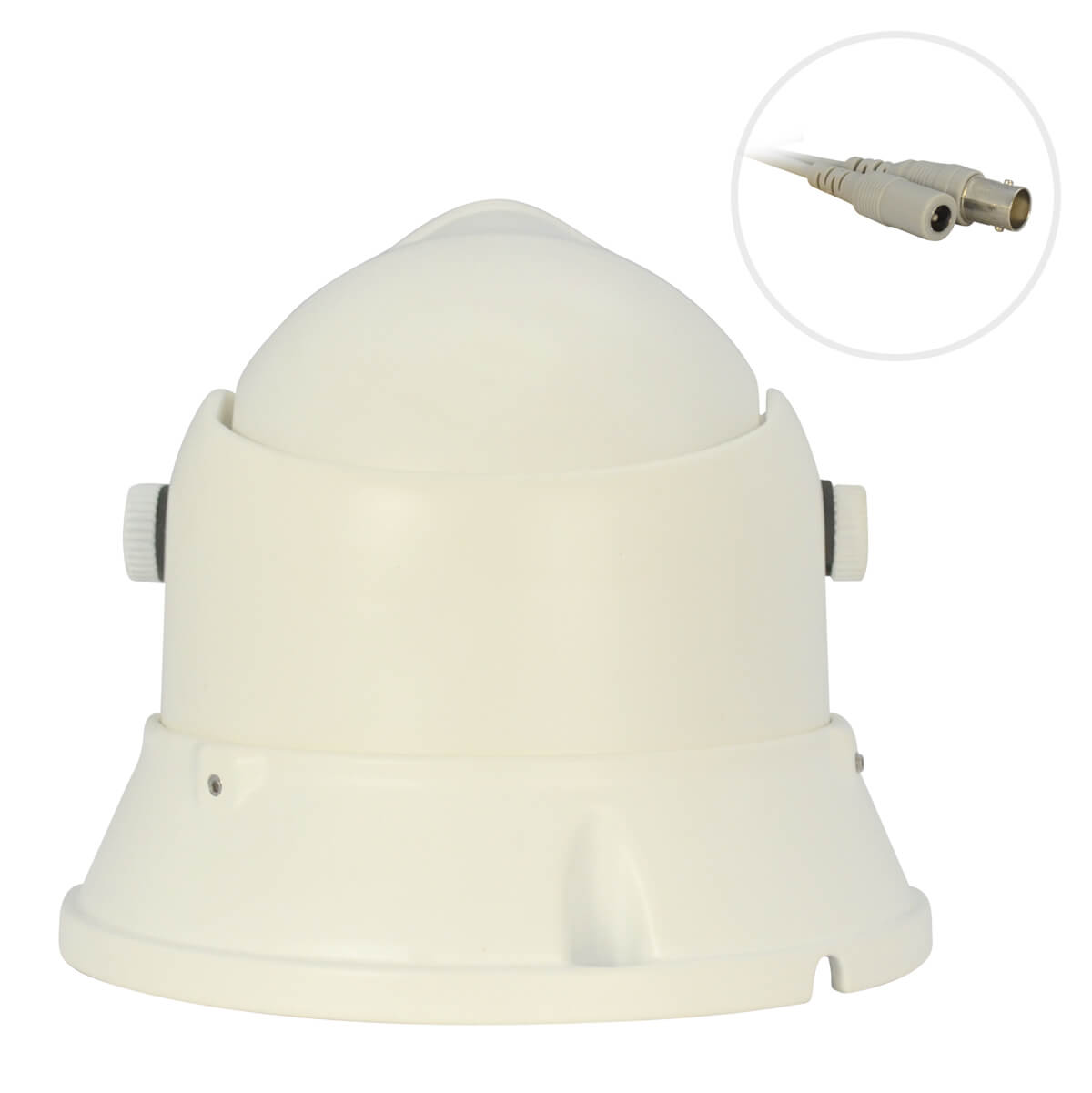

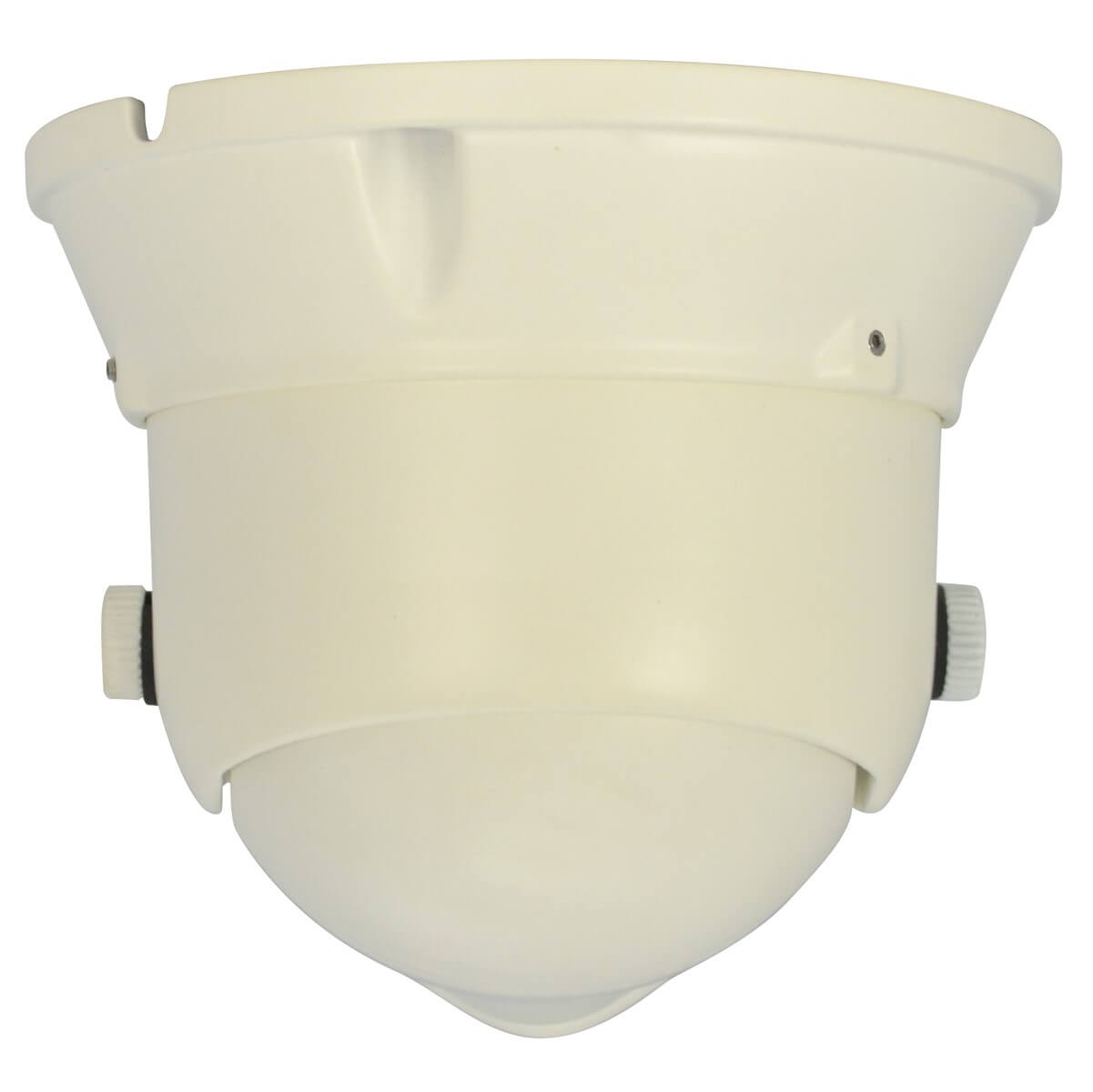

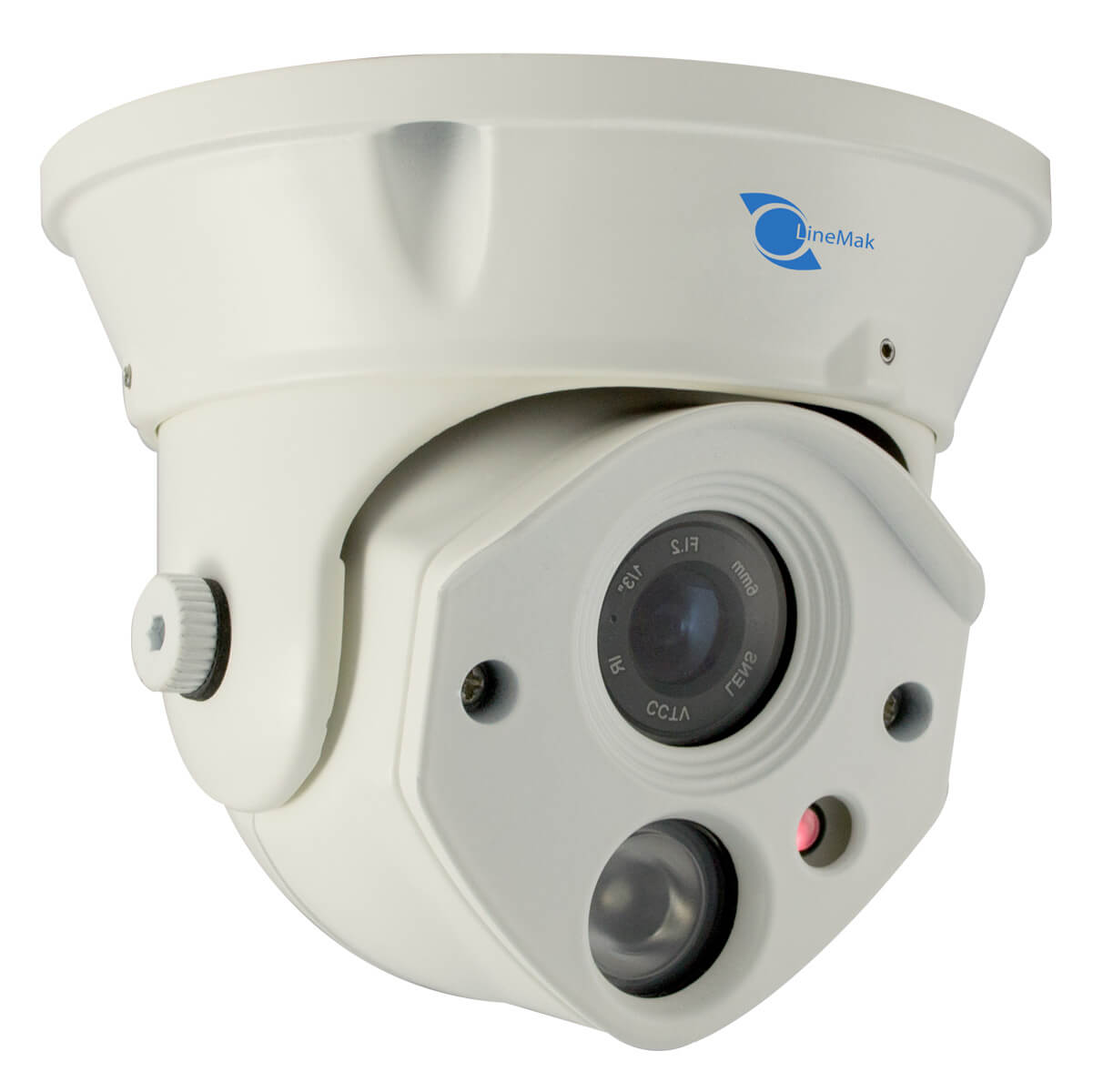

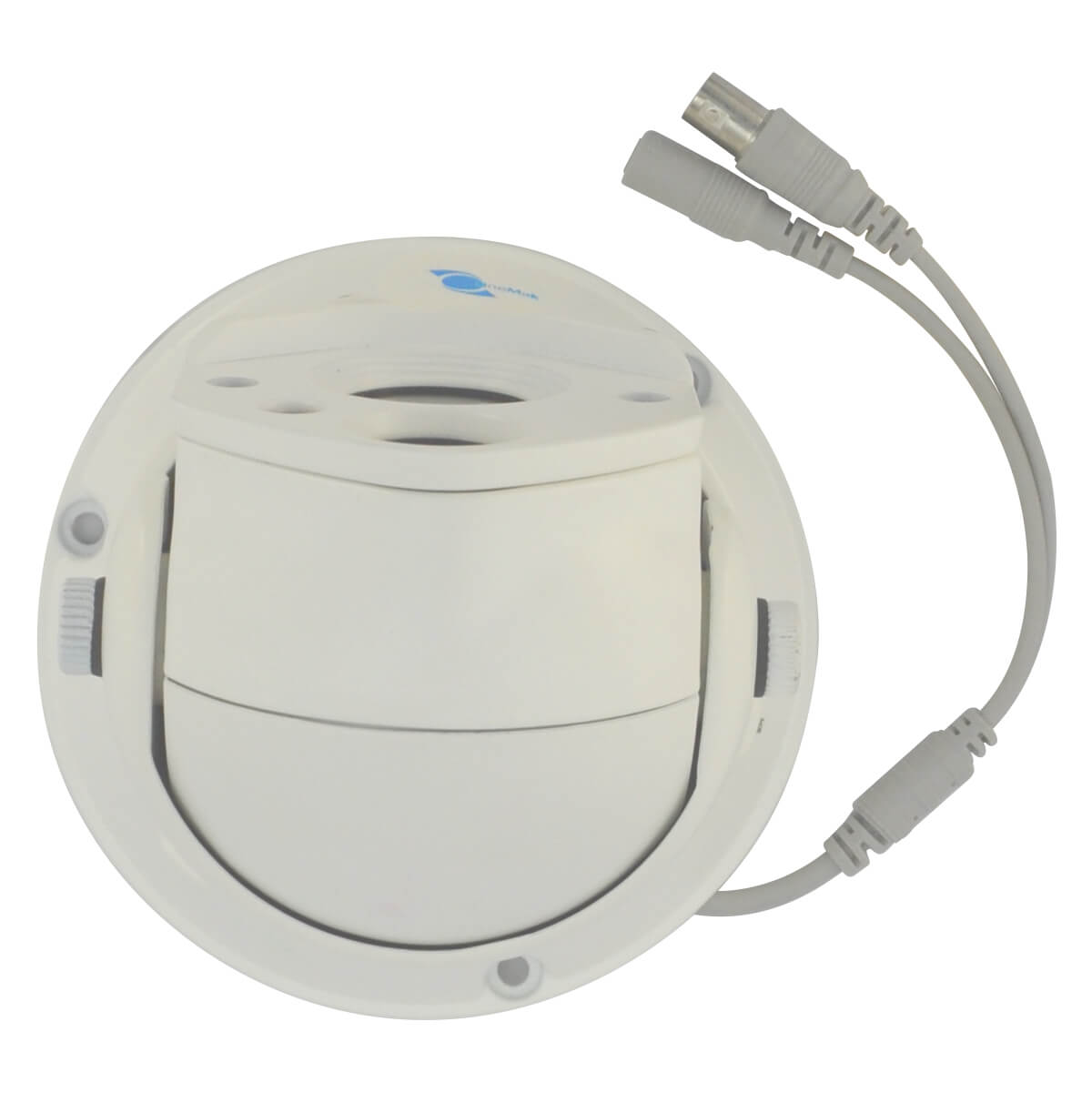

Vandalproof Dome camera, SONY CCD Sensor 700TVL, 6mm lens, 1 LED Arra

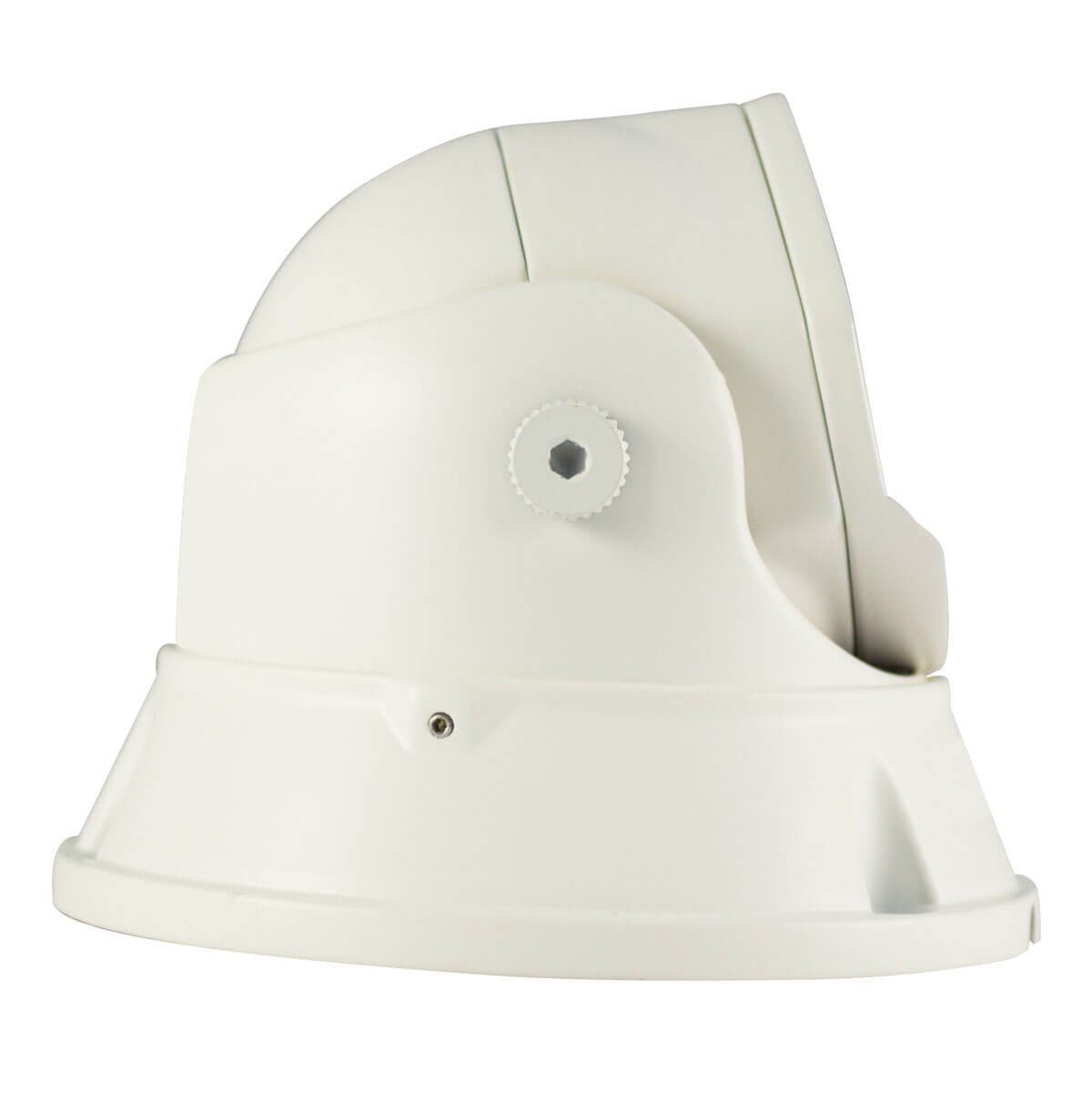

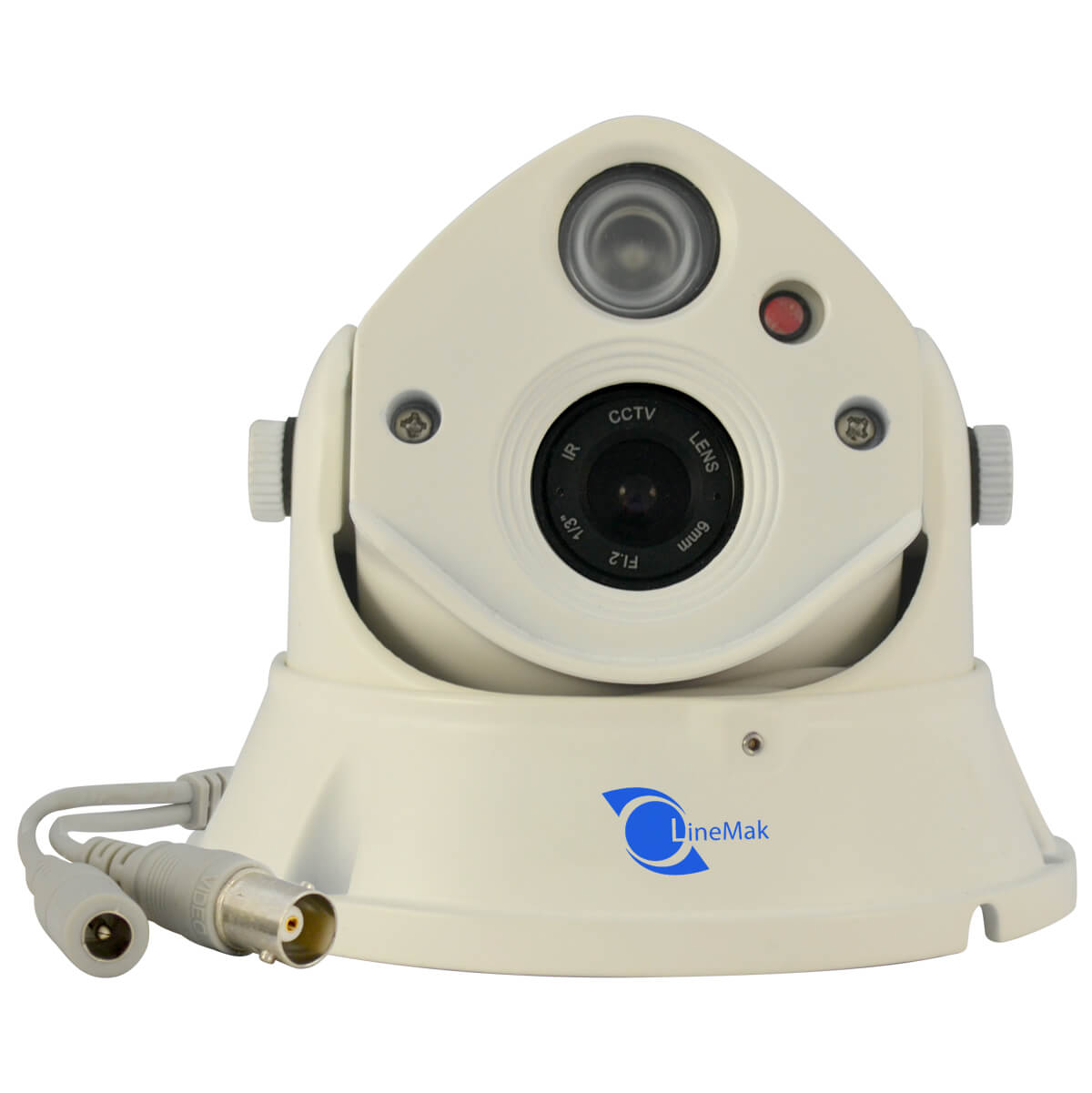

  • Vandalproof Dome camera, SONY CCD Sensor 700TVL, 6mm lens, 1 LED Arra - Image 1
  • - 1/3" SONY 960H Exview CCD Sensor, 700TVL.
  • - 1pcs LED Array, 98ft IR distance.
  • - AWB, AGC and mirror functions.
  • - Power adapter not included.
  • - 6mm board lens.
  • - 53° viewing angle.
Products recommendaded to work with this item:
vandalproof dome camera, sony ccd sensor 700tvl, 6mm lens, 1 led arra
+
1 channel passive video balun 2000ft, contains 6 pairs 12 pcs
+
dc12v 1a power adapter specially for security cameras
Price for all 3: $97.97
  • IR vandalproof dome camera high-resolution with a 6mm board lens and a viewing angle of 53° which has a 98ft range of infrared night vision and a 1pcs LED array.

    Top of the line equipment regarding sensor and driver.

    This equipment is designed for indoors usage and can be easily installed anywhere going unnoticed thanks to its size.

    Its resolution, sensitivity and wide opening angle are perfect for monitoring stores, offices, shops, warehouses and anywhere with little or no light.

    For best results, regarding image quality, use our servers and digital video recorders (DVR). See this camera online through any of our recording systems.

    Power adapter not included.
    This camera does not include power supply since it depends on the installer or the consumer on how they will supply power. We sell individual power supply with different amps and centralized power supply. It all depends on the requirements needed for the installation. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.

    LED array
    LED array
    The infrared led array has a wider emitting angle than traditional infrared leds. Traditional infrared leds can only emit the active infrared ray in a narrow angle. When there is a security camera with infrared led array, the emitted infrared will cover the whole surveillance area, which means the infrared led array camera can see the whole area in a dark environment such as at night.
    IR illumination gives your cameras night vision
    IR illumination provides an extra source of invisible infrared light for surveillance when existing ambient light is either not present or too dim. And it is designed to be easily integrated into the IP network surveillance system and powered by PoE.
    IR illumination gives your cameras night vision
    Auto White Balance (AWB)
    Auto White Balance (AWB)
    Function seeking to compensate the backlight events in order to prevent the camera from dazzling with great intensity of light received and so produce an unsatisfactory image. AWB may be entirely sufficient for camera positions with non-traditional environmental illumination changes.
    Automatic Gain Control (AGC)
    Automatic gain control boosts the video signal coming from the imager to amplify and improve scene illumination.
    Automatic Gain Control (AGC)
    Automatic Electronic Shutter (AES)
    Automatic Electronic Shutter (AES)
    To determine the overall video brightness, it is necessary for cameras to be able to measure an actual scene illumination, being auto-iris the most advanced and commonly used method nowadays. In order to get this, the camera measures the light level and then adjusts the motorized iris in the auto-iris Lens.
    A rear-view mirror cameras
    The rear-view mirror camera imitates the function of the actual mirror including the recording function as well, reason why it is highly recommended to use the rear-view camera as a back-up means to check for obstructions behind the car and avoid using it on frozen slippery roads.
    A rear-view mirror cameras
    True round-the-clock surveillance for illuminant/dark places
    True round-the-clock surveillance for illuminant/dark places
    This feature delivers a sharp image in low light and nighttime conditions. There is also real solution to day and night surveillance applications that deliver clear and sharp color images in illuminant areas and black and white images in dark areas using infrared illumination, without the need to refocus the lens.
    Warranty: One (1) Year
  • Vandalproof Dome camera, SONY CCD Sensor 700TVL, 6mm lens, 1 LED Arra
    General
    Brand LineMak
    Model LS-VE7061EF
    Sensor
    Resolution 700TVL
    Sensor 1/3" Sony 960H Exview CCD
    Effective pixels PAL: 960*582
    NTSC: 962*492
    Video
    Video format PAL / NTSC
    Video output 1.0Vp-p, 75ohm
    Lens
    Lens 6mm Board lens
    IR Range 98ft night vision
    LEDs 1 LED Array
    IR-CUT Filter Yes
    Minimum illumination 0 Lux (with LED on)
    Viewing angle 53°
    Security
    Motion detection zone On / Off (4 Zones)
    Privacy zone On / Off (8 Zones)
    Environment
    Operation temperature -10°C ~ 50°C
    14°F ~ 122°F
    Storage temperature -30°C ~ 80°C
    -22°F ~ 176°F
    Power
    Power supply DC 12V
    Power consumption 300mA
    Appearance
    Color White
    Size 4.33(H) * 5.12(D) inches
    Weight 1.18 pounds
    Special function
    Back Light Compensation (BLC) No
    Auto White Balance (AWB) Yes
    Electronic shutter speed (AES) PAL: 1/50~1/100000s
    NTSC: 1/60~1/100000s
    Auto Gain Control (AGC) Yes
    Digital Noise Reduction (DNR) No
    Wide Dynamic Range (WDR) No
    Mirror Yes
    Adaptive Tone Reproduction (ATR) No
    High Light Compensation (HLC) No
    Calling routing system (CRS) No
    Standard
    Brightness 0~90 adjustable
    Synchronizing system Internal
    S/N Ratio >120dB
    Freeze Yes
    Digital zoom Yes
    Gamma correction 0.05~1 adjustable
