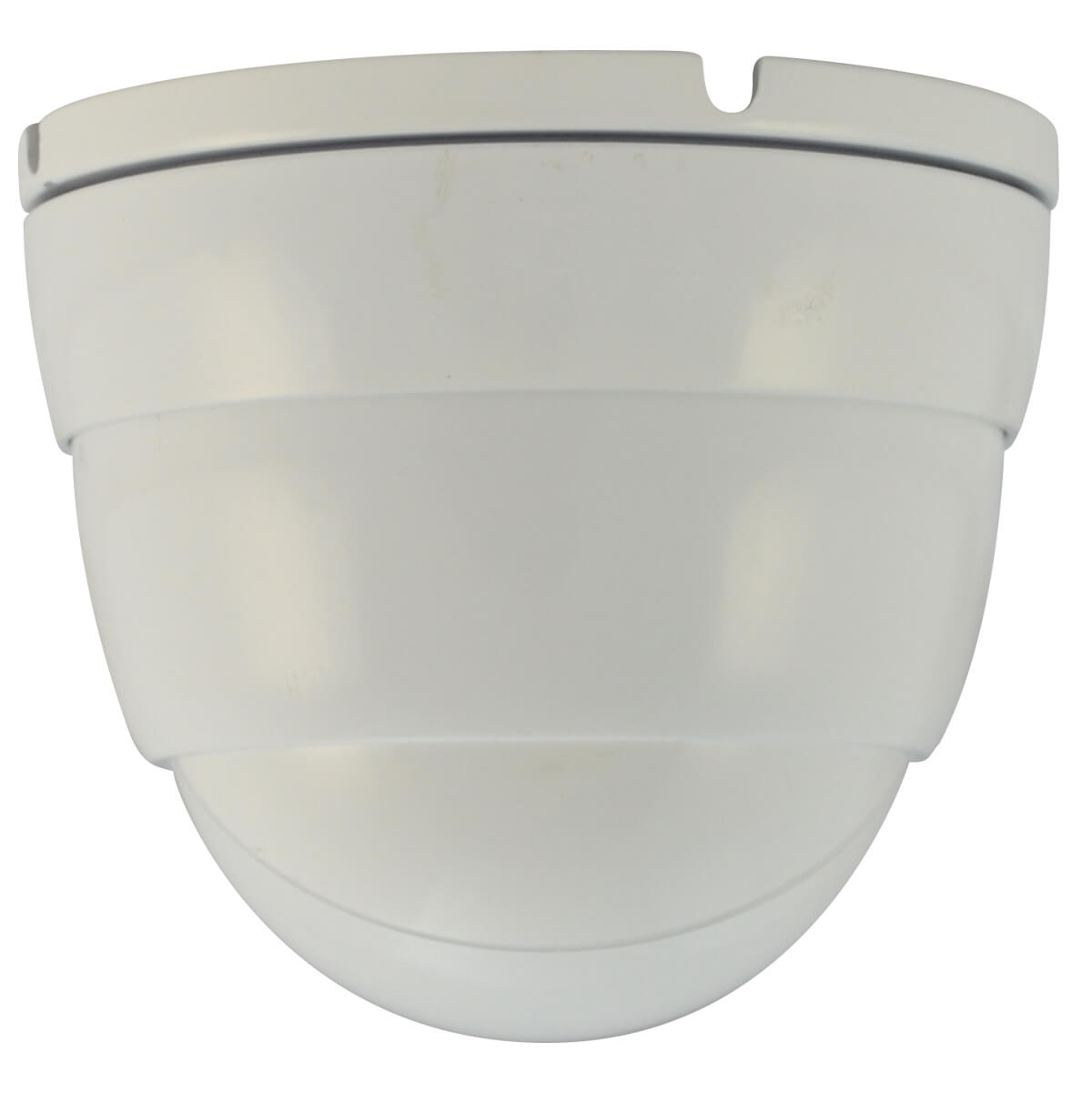

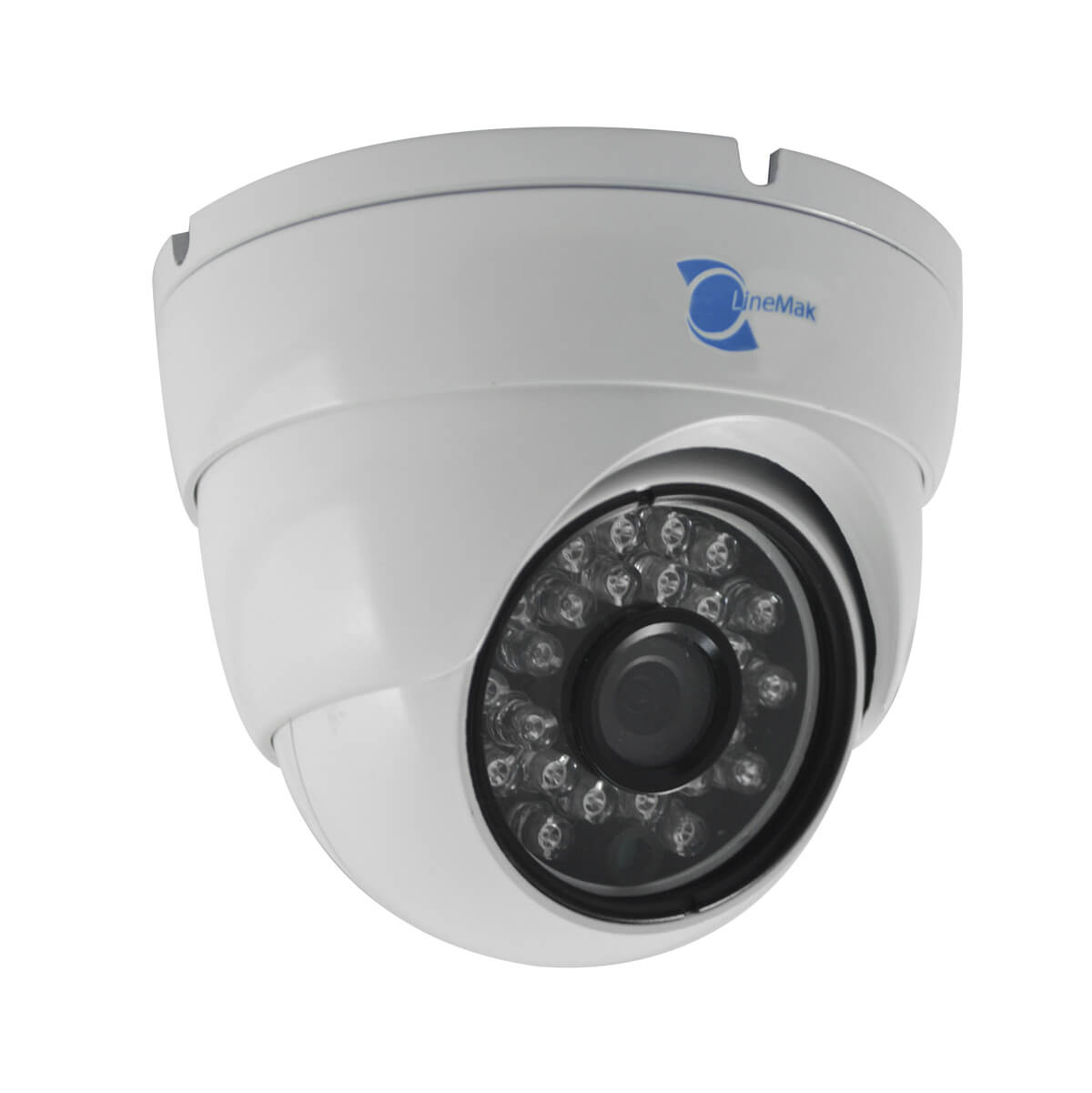

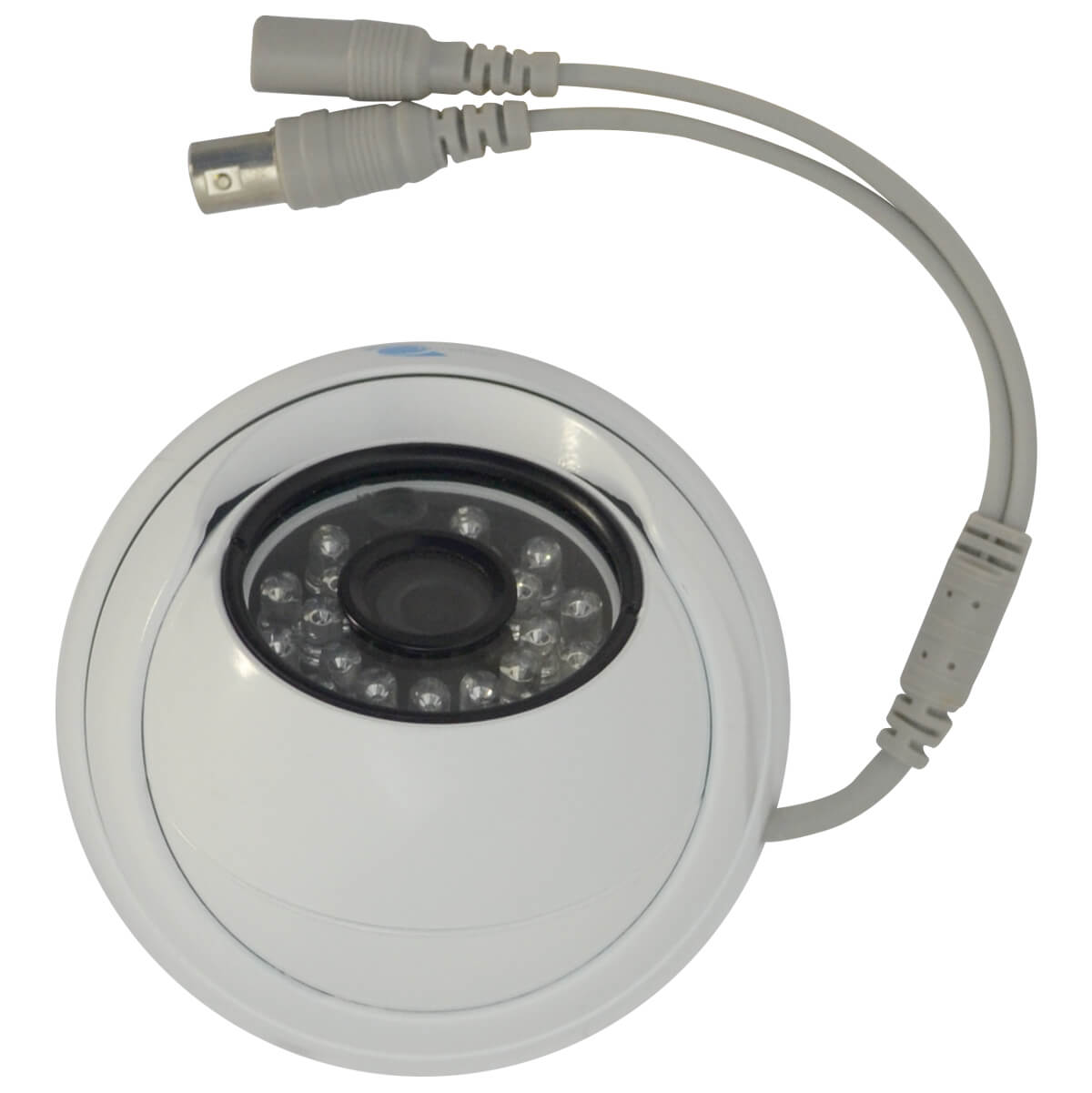

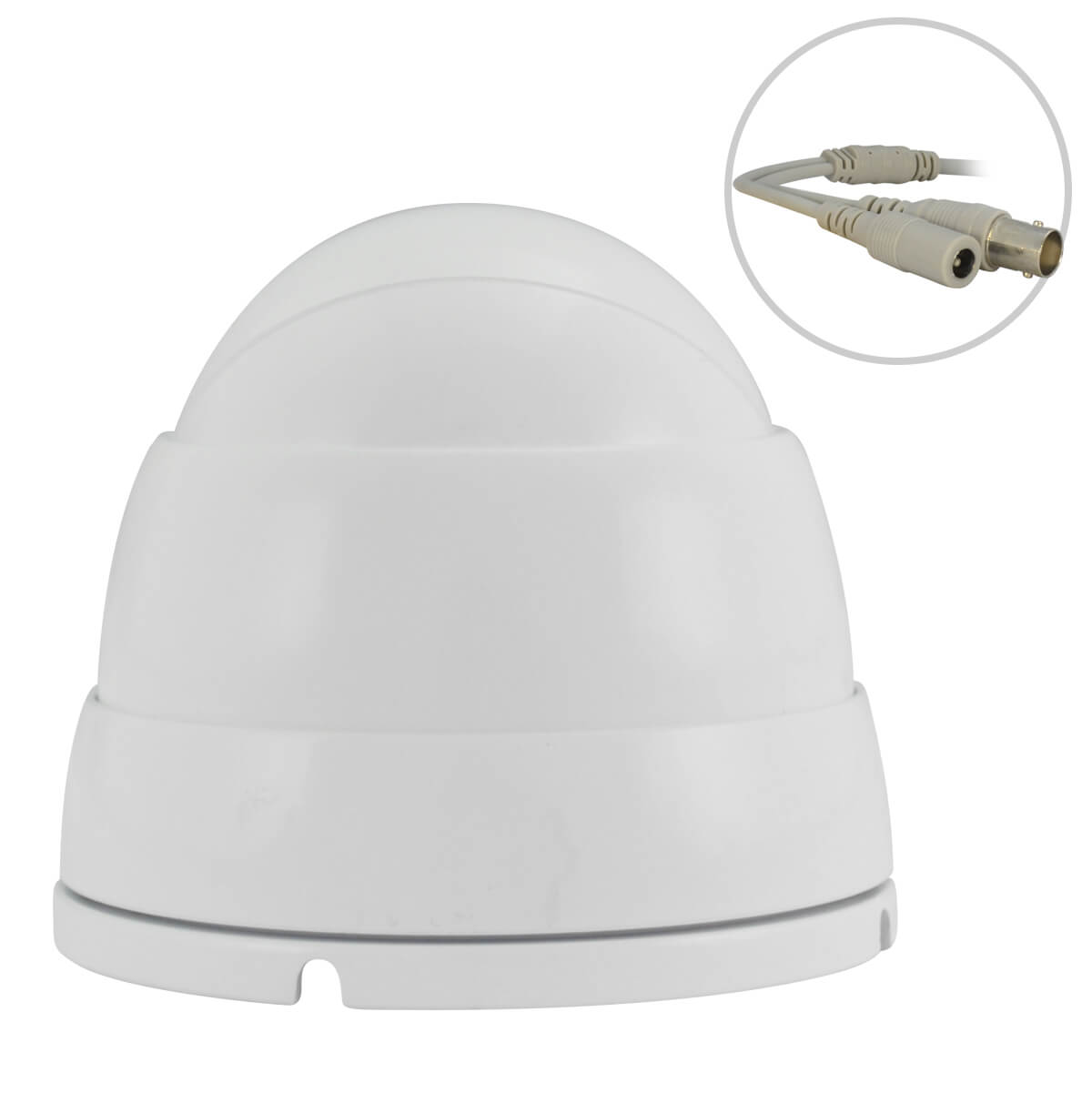

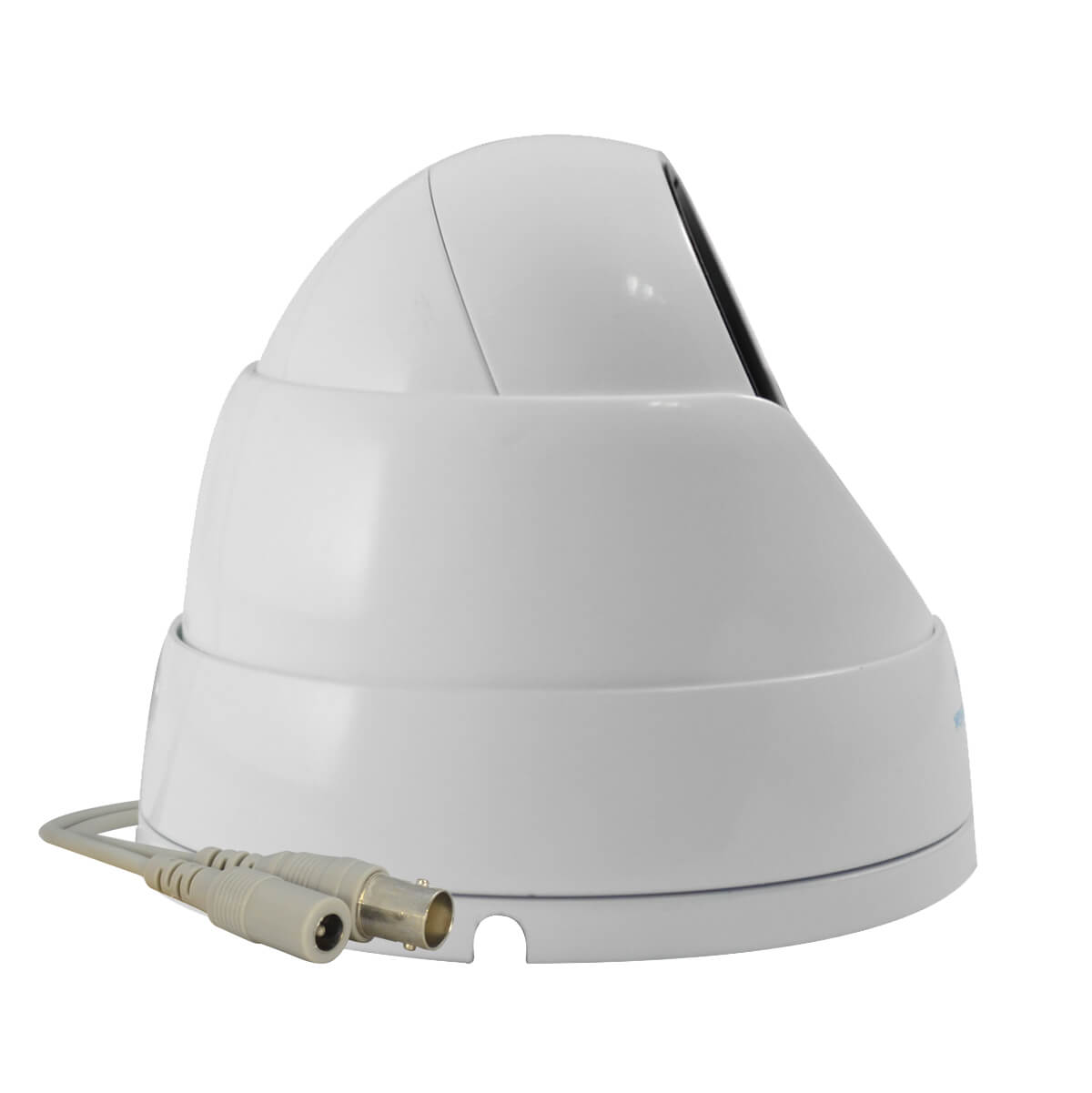

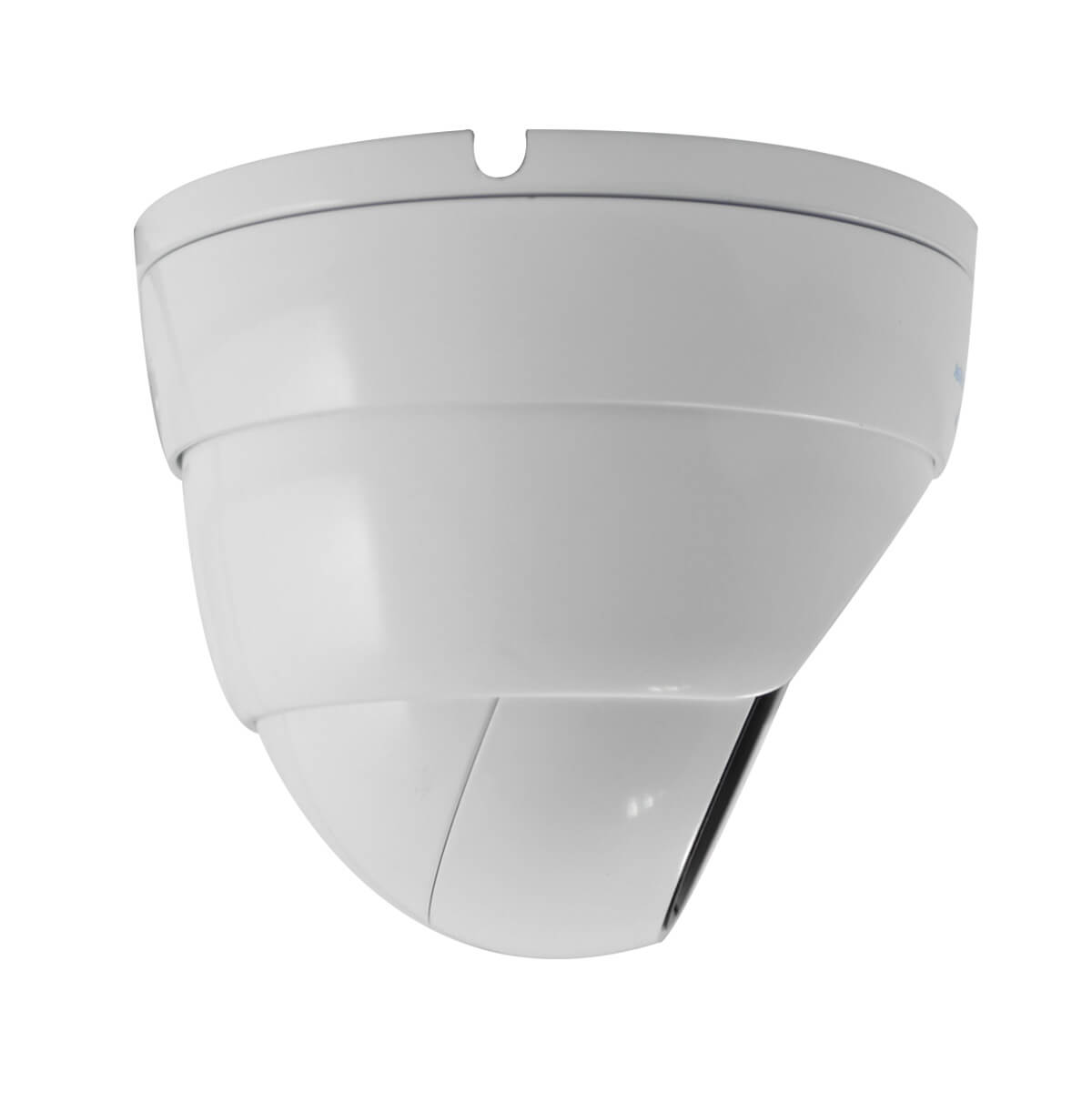

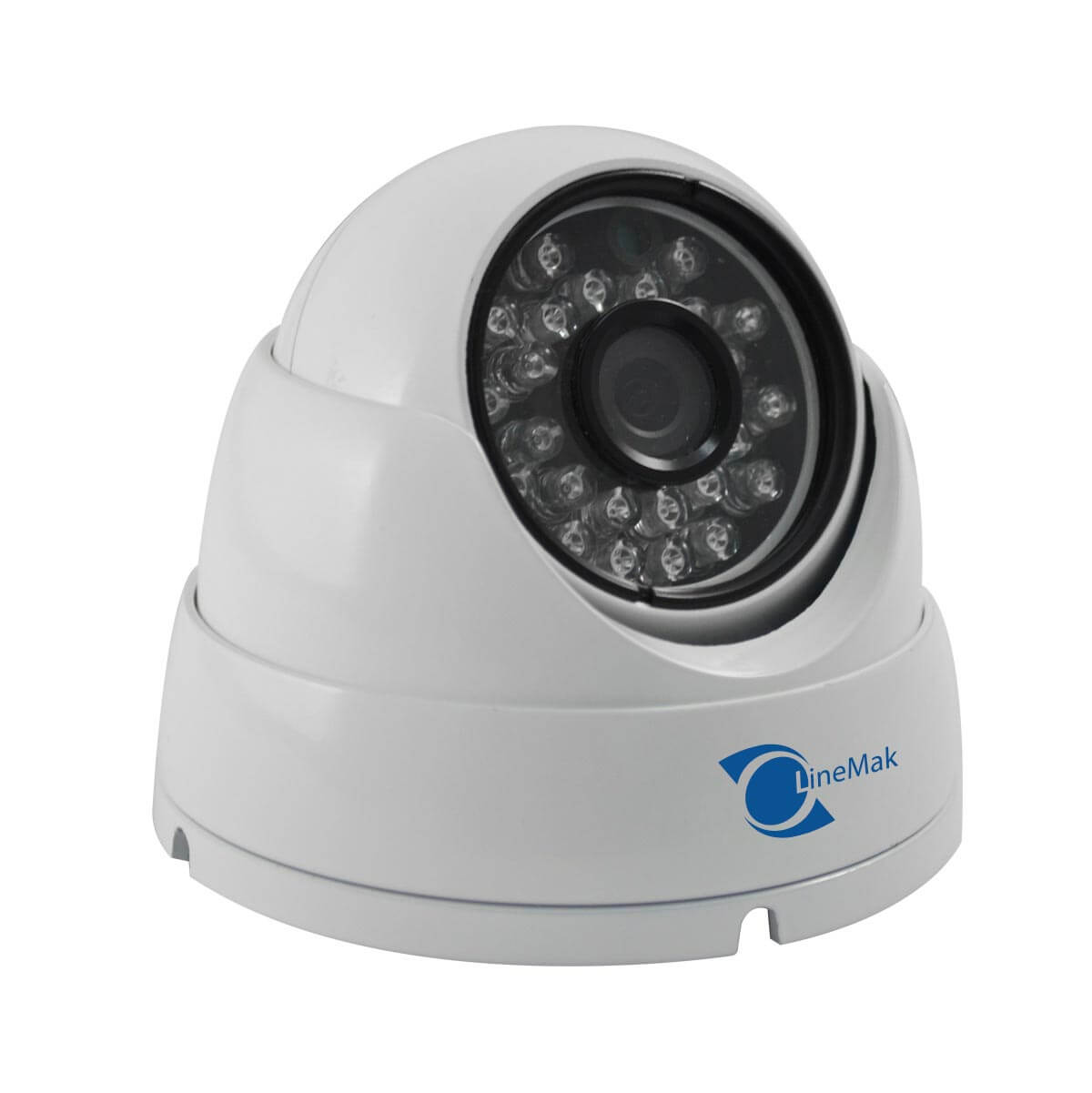

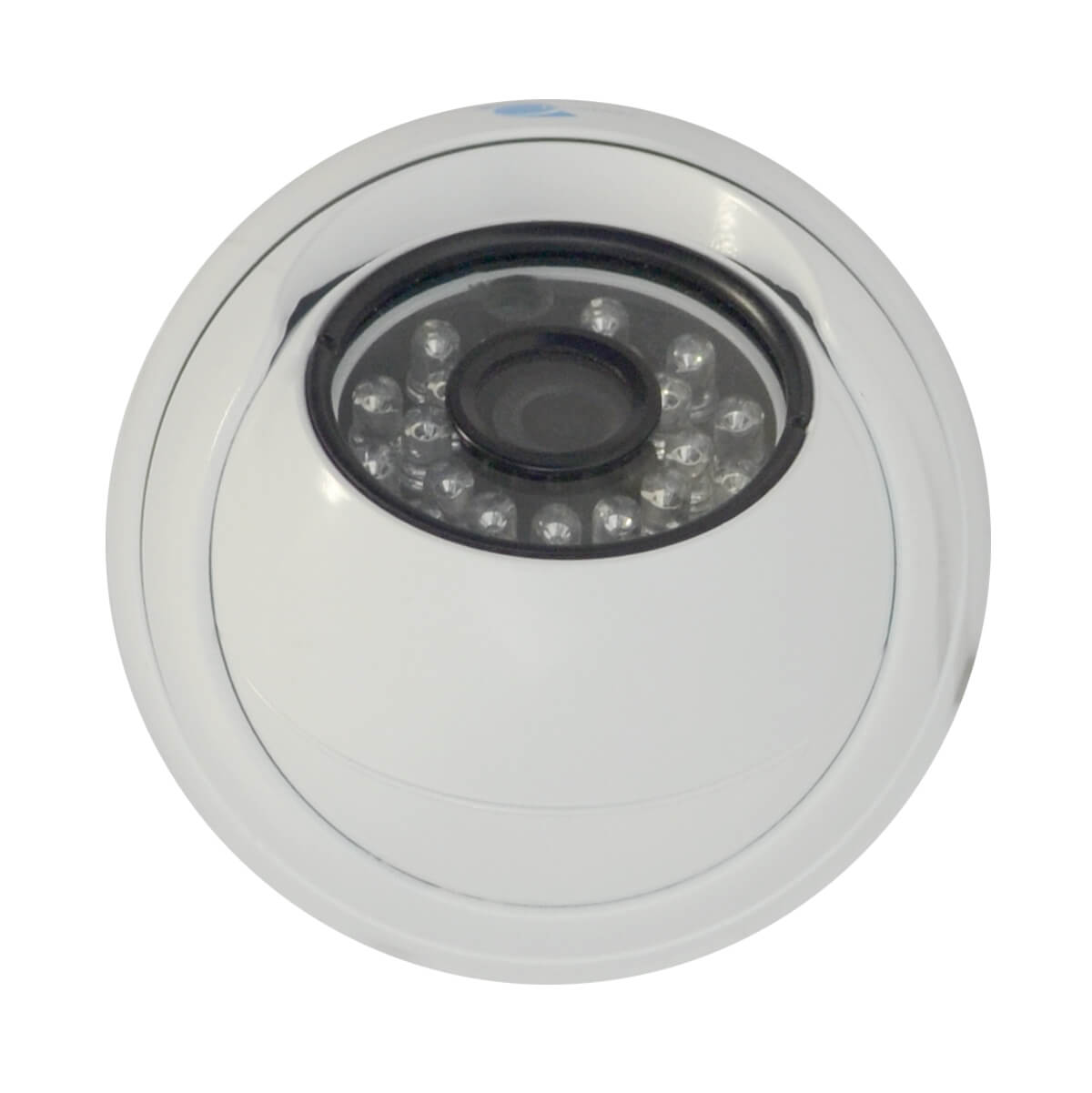

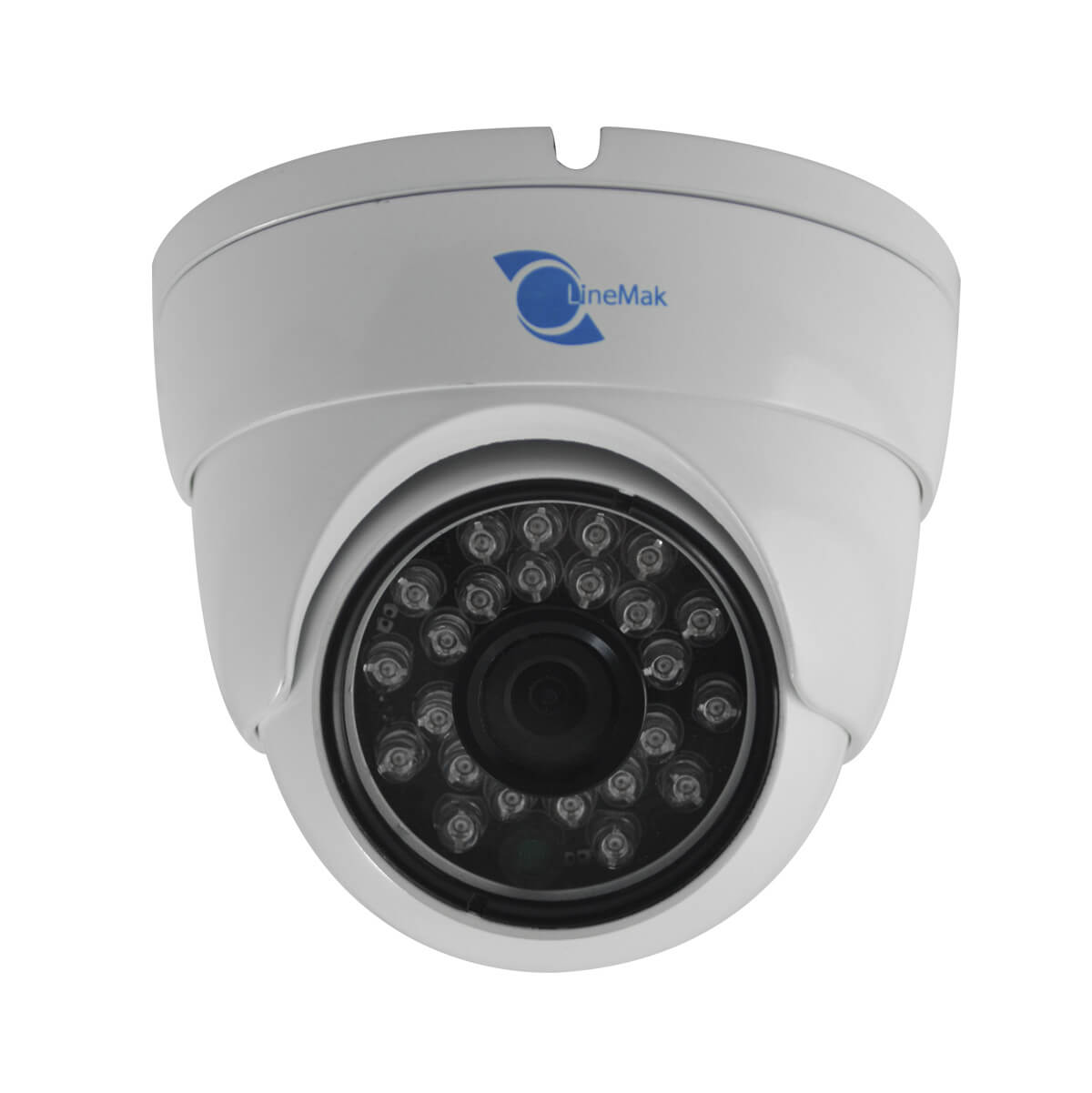

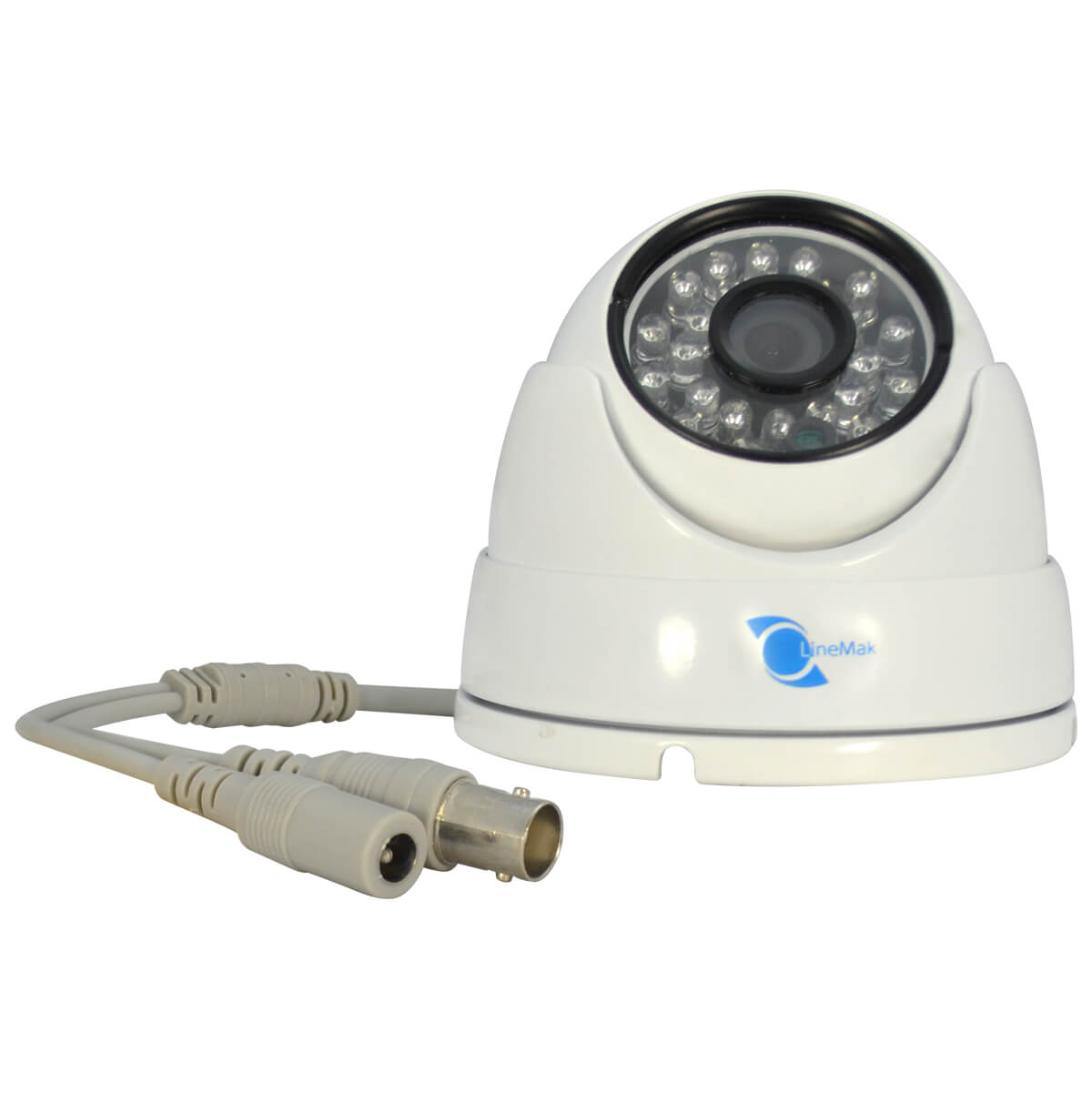

Dome camera, SONY CCD Sensor 700TVL, 3.6mm lens, 24 LEDs, 65ft IR, UTC
|
|
|
General
|
|
| Brand | LineMak |
| Model | LS-TC4950EF-UTC-W |
|
Sensor
|
|
| Resolution | 700TVL |
| Sensor | 1/3" SONY Effio-e CCD |
| Effective pixels | PAL: 960*582NTSC: 962*492 |
|
Video
|
|
| Video format | PAL / NTSC |
| Video output | 1.0Vp-p, 75ohm |
|
Lens
|
|
| Lens | 3.6mm |
| IR Range | 65ft night vision |
| LEDs | 24pcs (5mm each) |
| Minimum illumination | 0 Lux (with LED on) |
| Viewing angle | 92° |
|
Security
|
|
| Motion detection zone | On / Off (4 Zones) |
| Privacy zone | On / Off (8 Zones) |
|
Environment
|
|
| Operation temperature | -10°C ~ 50°C 14°F ~ 122°F |
| Storage temperature | -30°C ~ 80°C -22°F ~ 176°F |
|
Power
|
|
| Power supply | DC 12V |
| Power consumption | 300mA |
|
Appearance
|
|
| Color | White |
| Size | 3.35(H) * 3.94(D) inches |
| Weight | 11.64 ounces |
|
Special function
|
|
| Back Light Compensation (BLC) | No |
| Auto White Balance (AWB) | Yes |
| Electronic shutter speed (AES) | PAL: 1/50~1/100000sNTSC: 1/60~1/100000s |
| Auto Gain Control (AGC) | Yes |
| Digital Noise Reduction (DNR) | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Mirror | Yes |
| Adaptive Tone Reproduction (ATR) | No |
| High Light Compensation (HLC) | No |
| Calling routing system (CRS) | No |
|
Standard
|
|
| Brightness | 0~90 adjustable |
| Synchronizing system | Internal |
| S/N Ratio | >120dB (WDR ON) |
| Freeze | Yes |
| Digital zoom | Yes |
| Gamma correction | 0.05~1 adjustable |
