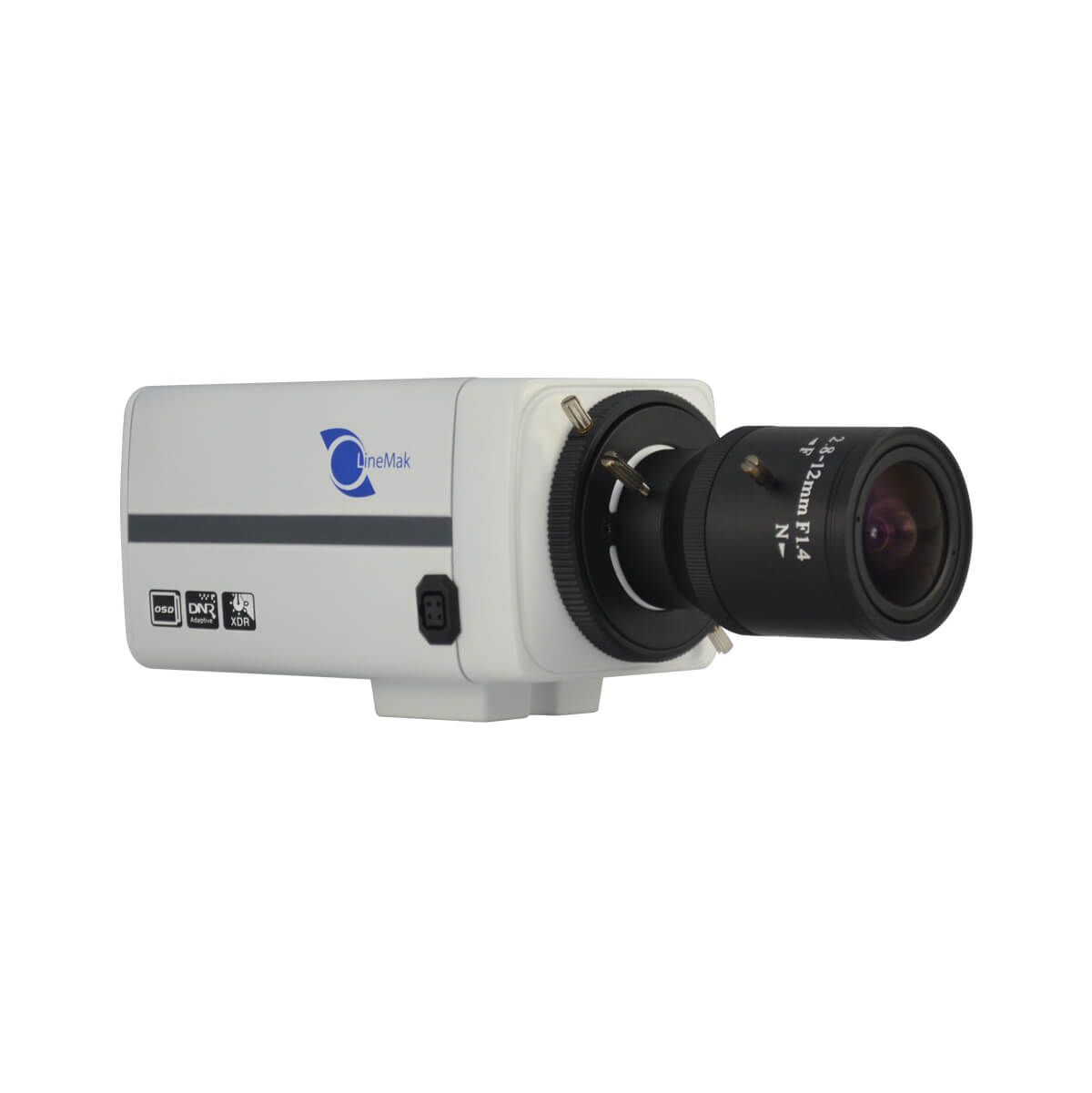

Box camera, 1/3 SONY CCD Sensor, 700TVL, OSD menu.
  • Box camera, 1/3 SONY CCD Sensor, 700TVL, OSD menu. - Image 1
  • - OSD menu. CS mount.
  • - AES, AGC, AWB and BLC function.
  • - DNR, ATR, HLC and CRS functions.
  • - Power adapter and lens not included.
  • - 1/3" SONY Effio Exview HAD CCD II Sensor.
  • - 700TVL.
Products recommendaded to work with this item:
box camera, 1/3 sony ccd sensor, 700tvl, osd menu.
+
1 channel passive video balun 1082ft, contains 6 pairs 12 pcs
+
dc12v 1a power adapter specially for security cameras
+
linemak housing with 164ft ir distance
Price for all 4: $124.96
  • Metal high-resolution box camera with a lens CS mount.

    Top of the line equipment regarding sensor and driver.

    This equipment is designed for indoors usage and can be easily installed anywhere going unnoticed thanks to its size.

    Its resolution, sensitivity and wide opening angle are perfect for monitoring stores, offices, shops, warehouses and anywhere with little or no light.

    For best results, regarding image quality, use our servers and digital video recorders (DVR). See this camera online through any of our recording systems.

    Power adapter not included.
    This camera does not include power supply since it depends on the installer or the consumer on how they will supply power. We sell individual power supply with different amps and centralized power supply. It all depends on the requirements needed for the installation. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.

    Lens not included.
    This camera does not include Lens since it depends on the requirement of the installer or consumer. We sell various types of Lens depending on the viewing angles you need. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.

    Main features:
    - OSD menu and DNR function (Super Digital Noise Reduction).
    - AWB support function: high color reproduction and real image.
    - BLC support function: suitable for objects monitoring under backlight environment.
    - AES support function: adapt to different monitoring environment.
    - AGC support function: adaptive brightness.

    Automatic Gain Control (AGC)
    Automatic Gain Control (AGC)
    Automatic gain control boosts the video signal coming from the imager to amplify and improve scene illumination.
    Automatic Electronic Shutter (AES)
    To determine the overall video brightness, it is necessary for cameras to be able to measure an actual scene illumination, being auto-iris the most advanced and commonly used method nowadays. In order to get this, the camera measures the light level and then adjusts the motorized iris in the auto-iris Lens.
    Automatic Electronic Shutter (AES)
    Auto White Balance (AWB)
    Auto White Balance (AWB)
    Function seeking to compensate the backlight events in order to prevent the camera from dazzling with great intensity of light received and so produce an unsatisfactory image. AWB may be entirely sufficient for camera positions with non-traditional environmental illumination changes.
    Back Light Compensation (BLC)
    In the security cameras, the BLC is a function that seeks to compensate the backlight situations to prevent the camera dazzles with great intensity of light received and produce an unsatisfactory image.
    Back Light Compensation (BLC)
    OSD Menu
    OSD Menu
    Most monitors include an on screen menu for making adjustments to the display through which you can navigate through the menu and make adjustments by using the Plus (+) and Minus (-) buttons, usually located next to the menu button. OSD include basic brightness and contrast controls. This superimposed image on the screen is commonly used by modern TV sets for volume, channel and time control.
    Highlight Compensation (HLC)
    Differently from BLC, stands for highlight compensation. Camera can detect the strong spots and then reduce the brightness of the strong spots to improve the overall images. This function is mainly designed so cameras capture vehicle plate license.
    Highlight Compensation (HLC)
    Digital Noise Reduction (DNR)
    Digital Noise Reduction (DNR)
    DNR incorporates frame-to-frame noise reduction with spatial noise reduction to produce clear video images with less noise, in low light conditions. It makes images clearer and reduces video file size and reduces the visibility of the random noise during playback of the video.
    Warranty: One (1) Year
  • Box camera, 1/3 SONY CCD Sensor, 700TVL, OSD menu.
    General
    Brand LineMak
    Model LS-CB160A
    Sensor
    Resolution 700TVL
    Sensor 1/3" SONY Effio Exview HAD CCD II
    Effective pixels PAL: 752*582
    NTSC: 768*494
    Video
    Video format PAL / NTSC
    Video output 1.0Vp-p, 75ohm
    Lens
    Minimum illumination 0 Lux (with LED on)
    Environment
    Operation temperature -20°C ~ 50°C
    -4°F ~ 122°F
    Power
    Power supply DC 12V
    Power consumption 500mA
    Appearance
    Color White
    Size 4.33 (L) * 2.36 (H) * 2.56 (W) inches
    Weight 11.64 ounces
    Special function
    Back Light Compensation (BLC) Yes
    Auto White Balance (AWB) Yes
    Electronic shutter speed (AES) PAL: 1/50~1/100,000s
    NTSC: 1/60~1/100,000s
    Auto Gain Control (AGC) Yes
    Digital Noise Reduction (DNR) Yes (2D-NR)
    Wide Dynamic Range (WDR) No
    Mirror No
    Adaptive Tone Reproduction (ATR) Yes
    High Light Compensation (HLC) Yes
    Calling routing system (CRS) Yes
    Standard
    Scanning system 2:1 Interlace
    Synchronizing system Internal
    S/N Ratio >48dB
    Gamma correction 0.45
    OSD Menu Yes
  • Instrucción
    File Size: 537.19Kb
    Languages: Spanish
    File Type: PDF
    Instructions
    File Size: 404.47Kb
    Languages: English
    File Type: PDF
