Video tester with LCD color display 3.5in for Security Cameras

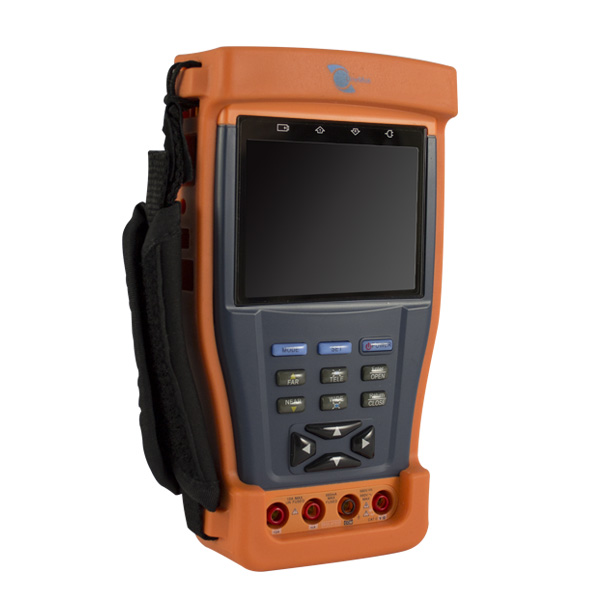

  • Video tester with LCD color display 3.5in for Security Cameras - Image 1

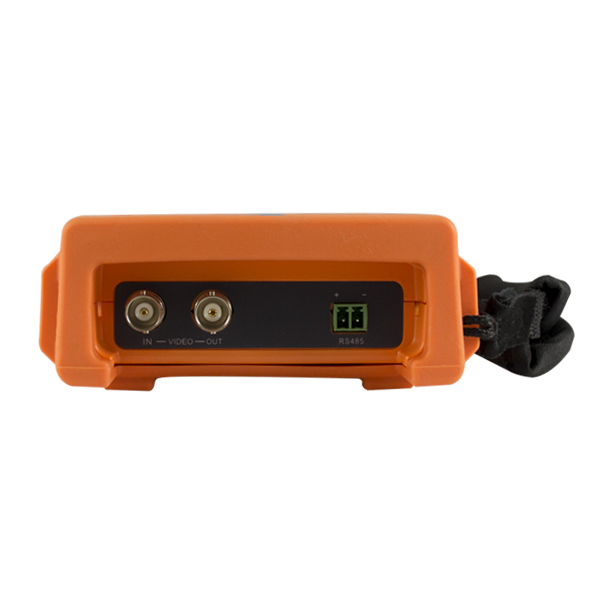

  • Video tester with LCD color display 3.5in for Security Cameras - Image 2

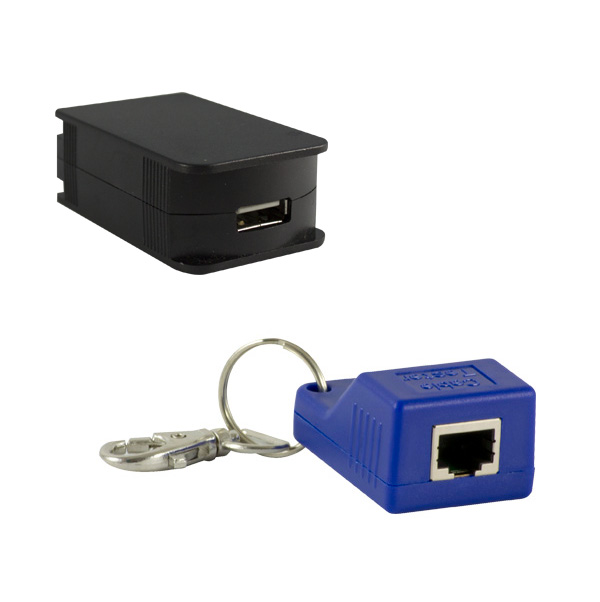

  • Video tester with LCD color display 3.5in for Security Cameras - Image 3

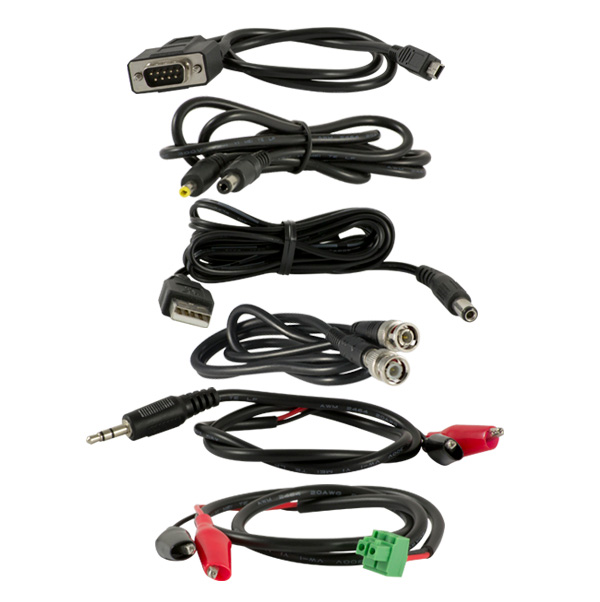

  • Video tester with LCD color display 3.5in for Security Cameras - Image 4

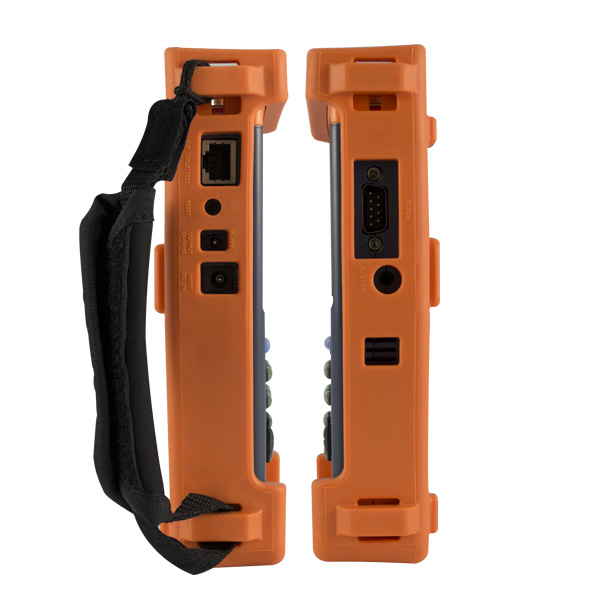

  • Video tester with LCD color display 3.5in for Security Cameras - Image 5

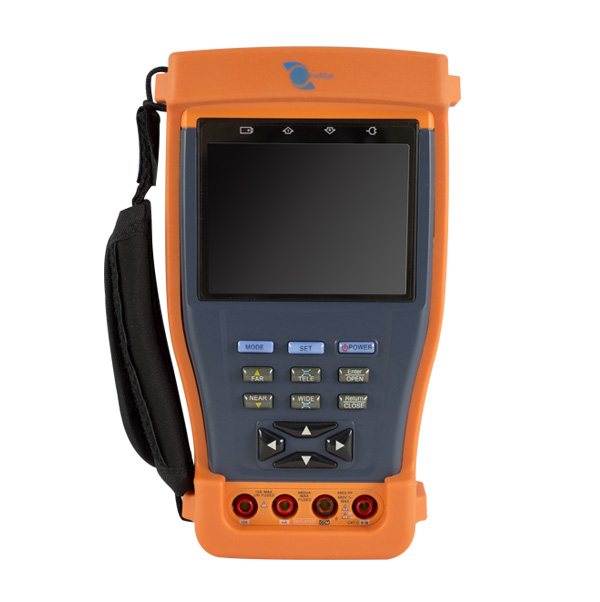

  • Video tester with LCD color display 3.5in for Security Cameras - Image 6
  • - 3.5" TFT-LCD.
  • - Video Level testing.
  • - Audio input test.
  • - PTZ control. PTZ continuing rotate test.
  • - Video displaying. Video generating.
  • - Data analyst.
Products recommendaded to work with this item:
video tester with lcd color display 3.5in for security cameras
+
dome camera, 1/2.8 hdis cmos sensor, 1200tvl, 3.6mm lens, 24 led, 65ft
+
ir dome camera 1/3 hd sensor, 900tvl, 3.6mm lens 24 led 65ft ir ircut
Price for all 3: $343.97
  • Video tester 3.5" LCD color, Portable device with tester function and video measurer, allows the verification of connection and working of the camera, especially, during installations of irregular range that difficults the direct maneuver of security equipment.

    Main Features:
    - 3.5" TFT-LCD, 960(H)*240(V) resolution.
    - Digital-multimeter, performs AC/DC Voltage, AC/DC Current resistor, Conductivety, Capacitor and Diode test.
    - Video Level testing, video signals measured in IRE or mV.
    - DC12V 1A power output for camera.
    - Audio input test, testing the audio signal from pickup devices.
    - PTZ control. Pan/tilts the P/T unit, zooms in/out the lens, adjusts the focus, aperture and sets and calls the preset position.
    - PTZ continuing rotate test.
    - Video displaying. Automatically adapts and displays the video format of NTSC/PAL. LCD Brightness/Contrast/Color Saturation are adjustable.
    - Video Generating, The PAL/NTSC multi-system colorbar video generator (seven-system switchable, transmit/receive seven-system colorful imagines).
    - Data analyst. Captures and analyzes RS485 controlling data to help the technician to find out the problem.

    Includes battery.
    Warranty: One (1) Year
  • Video tester with LCD color display 3.5in for Security Cameras
    General
    Brand LineMak
    Model LS-CT894
    System
    Operating system Embedded LINUX
    LCD Panel
    Display area 48.0mm(H)*35.6mm(V)
    Resolution 320*240
    Brightness 350cd/m²
    Aspect ratio 4:3
    Baklight life span >50000
    Color 16.7M
    Contrast ratio 200:1
    Response time 15ms
    Viewing angle Up: 10
    Down: 30
    Left: 40
    Right: 40
    Dot pitch 0.1mm(H)*0.15mm(V)
    Display
    Video format PAL/NTSC automatic recognition
    Video input & output Output: 1.0vp-p 75ohm
    Video Test
    Monitor 3.5" digital TFT-LCD, 960*240 resolution
    Video format NTSC/PAL (Auto adapt)
    Video output 1.0 Vp-p
    LCD adjusment Brightness, Contrast, Saturation adjustable
    Video input/output Input: 1 ch BNC
    Output: 1 ch
    Video level test Video signals measured in IRE or mV
    Audio Test
    Audio input test Test the pickup and other audio equipments on the front-end
    Mode control
    Thumb wheel control Support
    PTZ Test
    PTZ Control RS232, RS422 simplex and RS485
    Communication protocol Compatible with more than 20 protocols such as PELCO-D/P, Samsung, Panasonic, etc.
    Baud rate 150, 300, 600, 1200, 2400, 4800, 9600, 19200bps
    UTP cable test Test UTP cable connection status and display in the screen. Read the number of the test box.
    PTZ data test Capture and Analyze the PTZ data sent from controlling device
    PTZ address scan Search up the ID of PTZ camera
    Color bar generation Output channel colorbar video signal for testing monitor or video cable
    Multi-meter Voltage, current, resistance and capacitance measuring, continuity testing, diode testing.
    Environment
    Operation temperature -10°C ~ 50°C
    Working humidity 30% ~ 90%
    Power
    Power supply DC5V/2A
    Power consumption 1.2W
    Working voltage DC 3.7V~DC 5V
    Battery Built-in 3.7V Lithium polymer battery 3000mAh (After charging 3~4 hour, working time lasts 12 hours)
    Appearance
    Color Dark gray and orange
    Size 7.5(L) * 1.6(H) * 5.1(W) inches
    Weight 1.1 pounds
