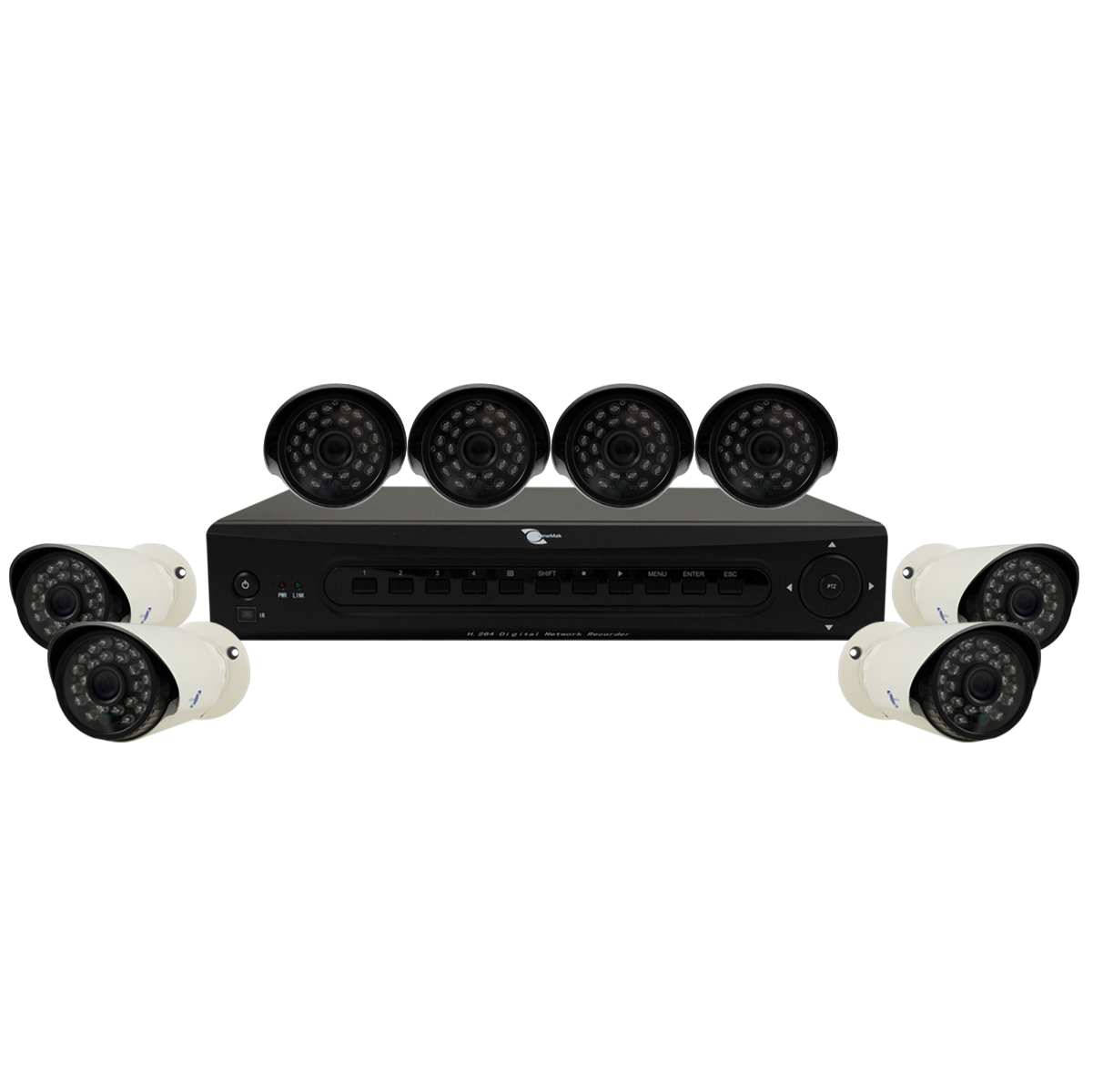

Kit 8 cameras, CMOS Sensor, 3.6mm lens, 24 LEDs, IR-CUT, H264, 1080P
  • Kit 8 cameras, CMOS Sensor, 3.6mm lens, 24 LEDs, IR-CUT, H264, 1080P - Image 1
  • Kit 8 cameras, CMOS Sensor, 3.6mm lens, 24 LEDs, IR-CUT, H264, 1080P - Image 2
  • Kit 8 cameras, CMOS Sensor, 3.6mm lens, 24 LEDs, IR-CUT, H264, 1080P - Image 3
  • Kit 8 cameras, CMOS Sensor, 3.6mm lens, 24 LEDs, IR-CUT, H264, 1080P - Image 4
  • Kit 8 cameras, CMOS Sensor, 3.6mm lens, 24 LEDs, IR-CUT, H264, 1080P - Image 5
  • Kit 8 cameras, CMOS Sensor, 3.6mm lens, 24 LEDs, IR-CUT, H264, 1080P - Image 6
  • - Kit of 8 IP cameras, 720P/960P/1080P resolution.
  • - H.264 High profile compression algorithm ideal for network NVR.
  • - Dual-streams, main and sub-stream.
  • - TCP / IP / RTSP / PPPOE / DDNS / UPnP and others network protocol.
  • - Mobile surveillance (iOS and Android)
  • - 24pcs LED. 65ft night vision.
  • Kit of 8 cameras ideal for monitoring homes, offices or local chambers, is easy to install and can see the images captured by the cameras via internet.

    Each camera contain a sensor 1/4" CMOS progressive scan Image Sensor 1Mp provides a resolution of 720p, it has a Megapixel 3.6mm/F1.4 MTV lens, his crown of 24 LEDs 5mm each allows a night vision of 65ft, it has a network interface RJ-45 and support doble stream, support network protocol: RTSP / FTP / PPPOE / DHCP / DDNS / NTP / UPnP. Hisilicon 3518C (ARM9 DSP), with H.264 dual stream encoding.

    The NVR is designed for the connection of 8 incoming channel and 3 output channels, has a compact size to be placed anywhere with BNC/VGA/HDMI connection, has two USB ports 2.0 and a network port RJ-45, playing from 1 to 8 channels simultaneously supports remote access and mobile view.

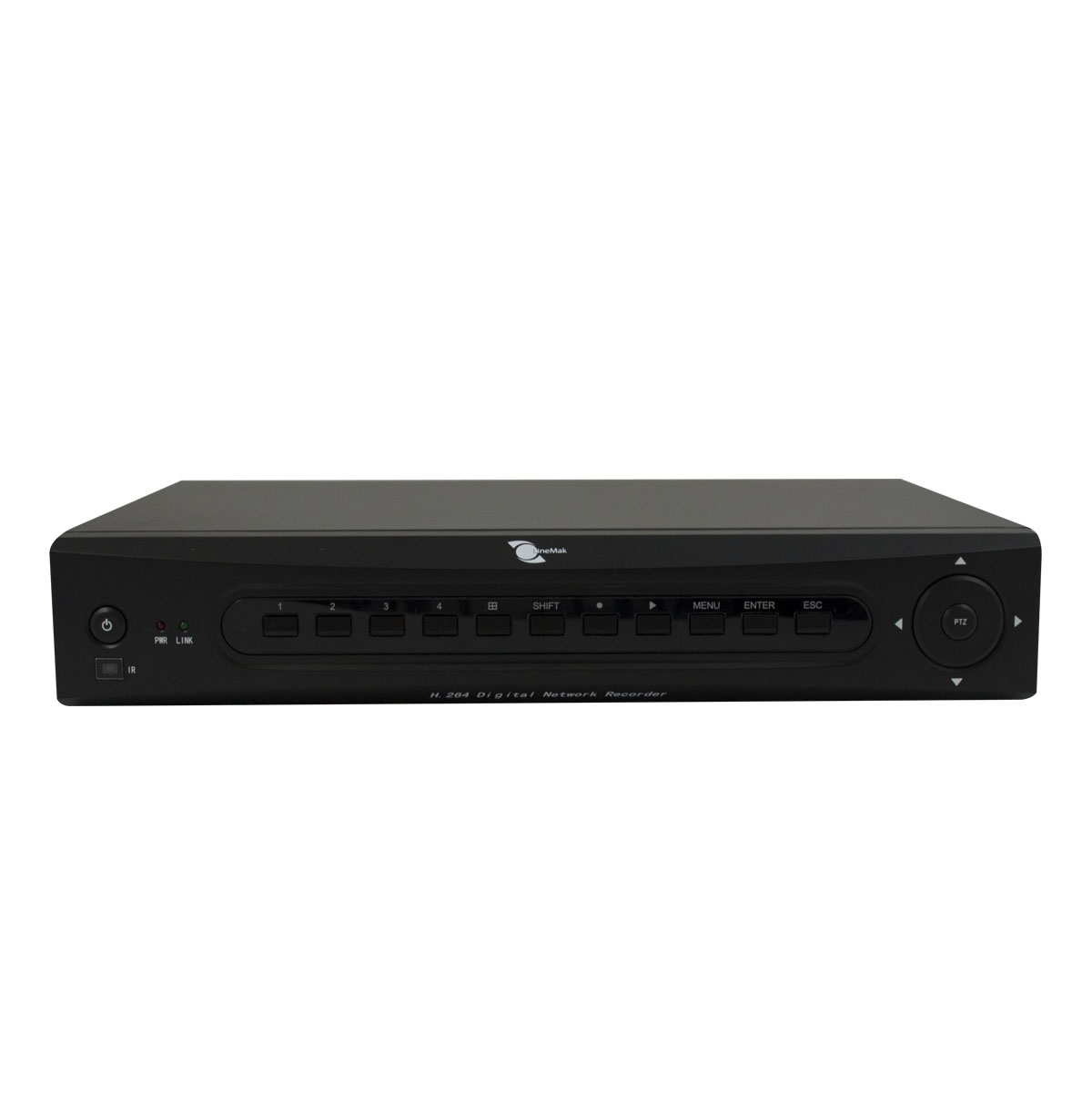

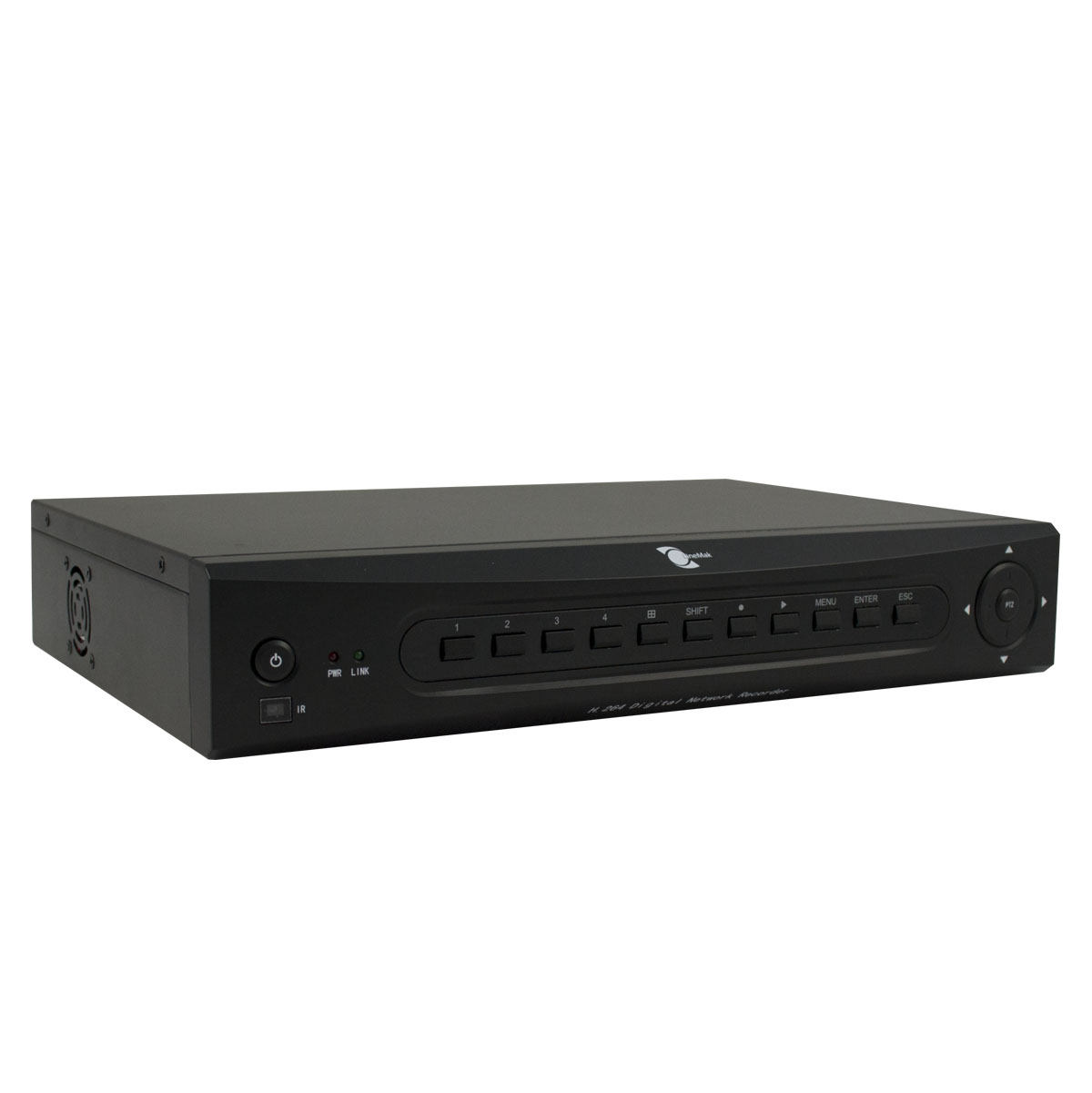

    Network video recorder (NVR) LS-NR8108D

    With a DVR, the video is encoded and processed at the DVR, while with a NVR, the video is encoded and processed in the camera then transmitted to the NVR for both storage and remote viewing.

    Monitor your cameras on the Internet from anywhere through your PC, mobile cellphone (Android, iPhone) or tablet (Android, iPad) in real time.

    It has both VGA and HDMI video outputs, and option to record on the motion detection option.

    Multiple recording mode: Alarm, auto, motion detection, manual recording.
    Multiple control mode: USB mouse, network controller and remote control viewing
    Compatible with: WINXP, WIN2000, WIN7.

    Hard drive not included.
    This Recorder does not include Hard Drive since it depends on the installer or the consumer on what requirement of Hard Drive capacity they are in need. We sell various types of Hard Drives. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.

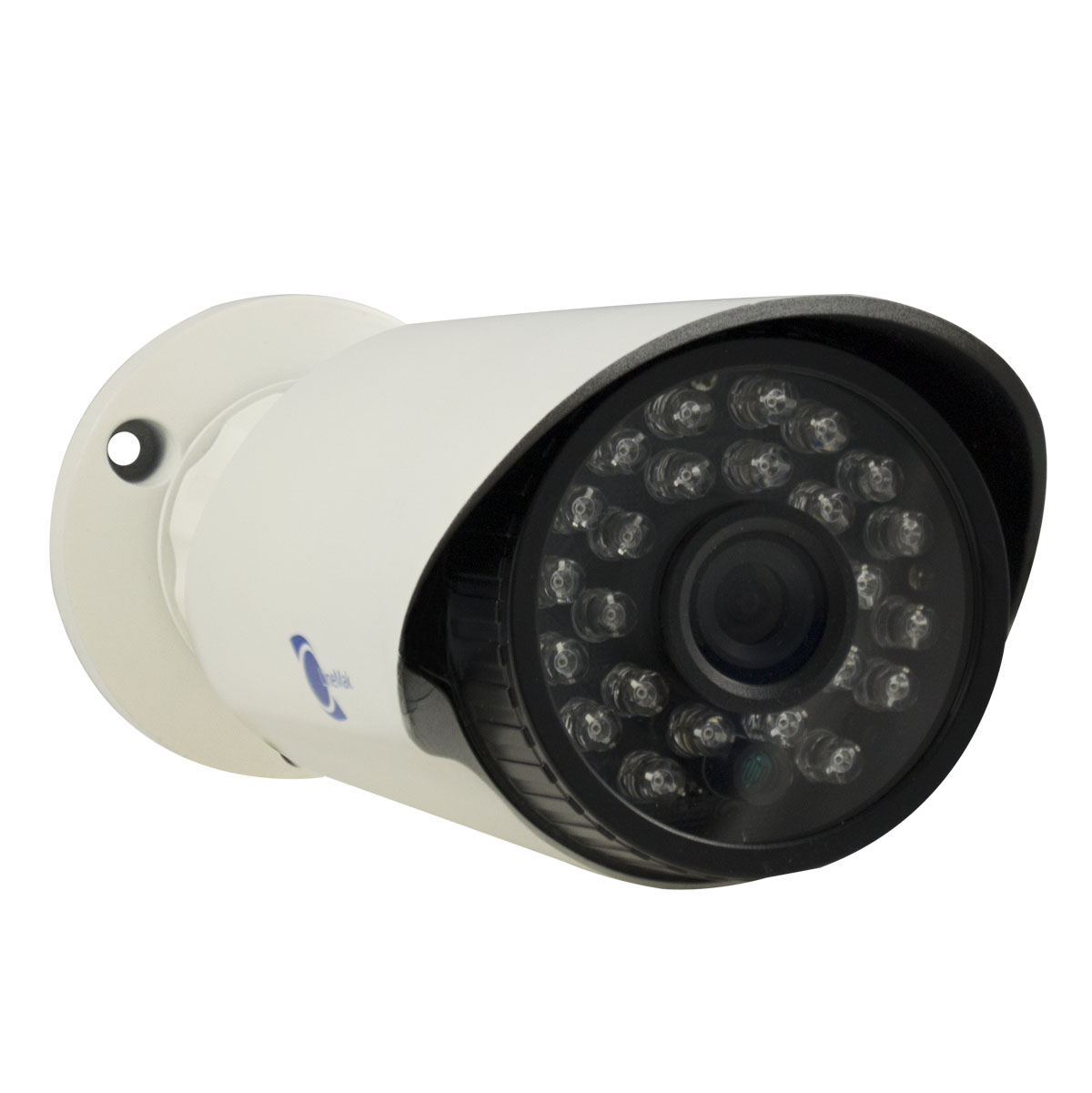

    IP bullet camera LS-IPC-3087-NFW

    IP Bullet camera for outdoors with a lens of 3.6mm, a 65ft range of infrared night vision, and 24pcs LEDs 5mm each. Available in white. The latest technology of sensor and driver adopted. The most attractive characteristics are night-time vision and easy to mount.

    This equipment can be easily installed anywhere going unnoticed thanks to its size. Resolution, sensitivity and wide opening angle are perfect for monitoring stores, offices, shops, warehouses and anywhere with little or no lighting.

    Using our servers and digital video recorders (DVR) for good results in image quality is recommended. You can see this camera online through any of our recording systems.

    Power adapter not included.
    This camera does not include power supply since it depends on the installer or the consumer on how they will supply power. We sell individual power supply with different amps and centralized power supply. It all depends on the requirements needed for the installation. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.

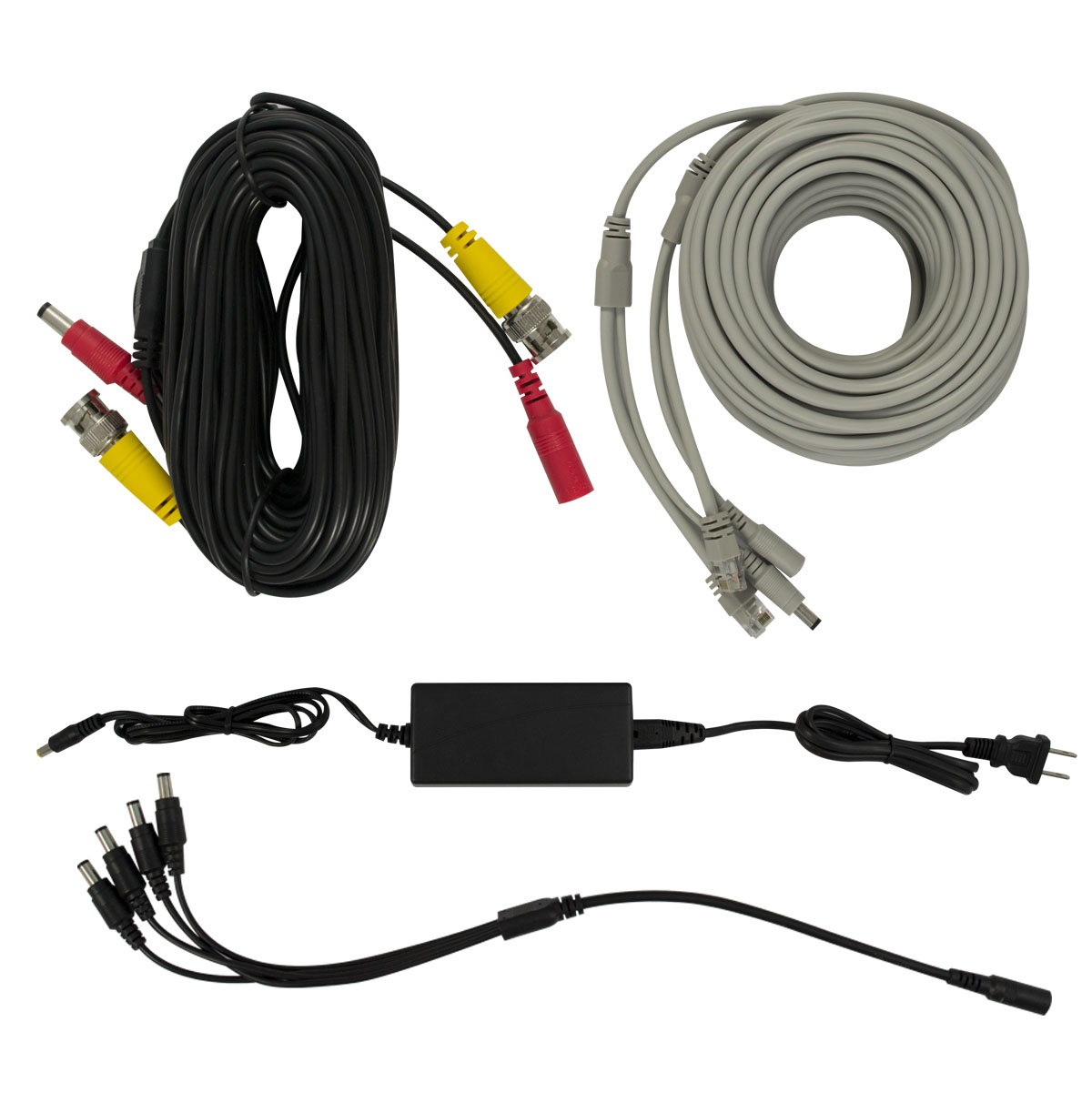

    Package includes:
    - 1 Digital video recorder (LS-NR8108D).
    - 8 IP bullet cameras (LS-IPC-3087-NFW).
    - 4 Power supply.
    - 1 4-Way power cable spliter.
    - 8 Patch cord (data cable).
    - 1 Mouse.
    - Manual.
    - Software.
    H.264 video compression reduces storage requirements
    H.264 video compression reduces storage requirements
    H.264 compression greatly reduces the size of your digital video files without compromising image quality. H.264 is a stable, proven compression technology which offers unbeatable recording picture quality and saves you valuable hard drive storage space.
    True Day/Night for round-the-clock surveillance
    Our day/night cameras with true day/night (ICR) deliver a sharp image in low light and nighttime conditions. There is also real solution to day and night surveillance applications with lenses that deliver clear and sharp color images in daylight and black and white images in darkness using near infrared illumination, without the need to refocus the lens.
    True Day/Night for round-the-clock surveillance
    Keep everything under watch with multiple recording modes
    Keep everything under watch with multiple recording modes
    Multiple selectable recording options are available such as motion detection, continuous and scheduled recording. This enables you to choose the appropriate recording type for your security needs and to maximize the number of hours of video you can record and store on your hard drive.
    HDMI delivers enhanced image clarity
    HDMI supports standard, enhanced or HD video. This recorder features an HDMI output which delivers enhanced image clarity with crisp images and enables you to view your security camera video in HD on your HDTV screen. HD images can be reproduced with the HDMI support for HD display.
    HDMI delivers enhanced image clarity
    Accurate alarm recording allows you to cover the whole event
    Accurate alarm recording allows you to cover the whole event
    This feature works with the motion detection capability of the DVR or alarm contacts attached to a door or window. When an incident is detected, the DVR records a pre-set amount of time before and after the event to the hard drive. This enables you to see what happened before and after motion was detected and view additional information about the circumstances leading up to and after it.
    Free iOS/Android App allows easy remote viewing
    Enjoy convenient remote access from your iOS or Android mobile device with a FREE downloadable app. You can monitor your security system from anywhere at any time.
    Free iOS/Android App allows easy remote viewing
    Motion detection
    Motion detection
    Pre-define zones within the area covered by each camera so that the DVR only starts recording when motion is detected within the zone. This saves hard drive space and reduces the amount of video recorded, making it easier to find the video you need if there is an event.
    Backup for saving critical video evidence
    The recorder allows still images and recorded video to be offloaded via one or more of these options for quick and easy backup of your critical video evidence: DVD, USB drive or network.
    Backup for saving critical video evidence
    IP
    IP
    Internet Protocol Address (or IP Address) is a unique address that computing devices use to identify themselves and communicate with other devices in the Internet Protocol network. An IP address is analogous to a street address or telephone number in that it is used to uniquely identify a network device to deliver mail message, or call ("view") a website.
    Monitoring 3G
    Monitors 3G work like a standard baby monitor system with an iOS device serving as a monitor in the baby's room or anywhere else the baby may be and a second device as the parent's listening station. Since having a baby requires constant monitoring, with a baby monitor 3g you will be able to watch over and provide them with safety and happiness
    Monitoring 3G
    Save money with no contracts and no monthly fees
    Save money with no contracts and no monthly fees
    Once your system is installed, you have the peace of mind that your property is protected with the added advantage of no binding contracts and no recurring monthly subscription fees.
    Warranty: One (1) Year
  • 8 Channel NVR, BNC/VGA/HDMI outputs, 720P/960P/1080P resolution
    General
    Brand LineMak
    Model LS-NR8108D
    Video
    Resolution 1080P(1920*1080), 960P(1280*960), 720P(1280*720)
    Video recording 4-Ch 1080P/720P
    Streams Each channel can set main steam and sub stream
    Recording & Playback
    Recording mode Support manual , auto, dynamic detection, alarm trigger record mode (Partly needs IPC Support)
    Storage & Backup
    Recording storage Local HDD, network
    Backup mode Support U disk, USB mobile HDD, USB DVD-RW.network storage and backup
    Interface
    Video input/output Input:
    4-Ch*1080P 4-Ch*720P
    8-Ch*960P / 8-Ch*1080P / 8-Ch*720P
    Output: 1-Ch BNC, 1-Ch VGA and 1-Ch HDMI
    Audio input/output Input: 4-Ch
    Output: 1-Ch
    USB Port 2 USB 2.0 ports
    HDD Port 1 SATA HDDs port (max. 4TB)
    Wireless port 3G, WiFi
    Network interface 1 RJ45 10M/100M port
    Remote
    Mobile surveillance iOS, windows mobile, blackberry, symbian and android
    Security
    Password protection Yes
    Motion detection zone Each screen can set multiple detection areas and set 6-level sensitivity (IPC Support)
    Environment
    Operation temperature -10°C ~ 55°C
    14°F ~ 131°F
    Working humidity 10% ~ 90%
    Power
    Power supply DC 12V/3A
    Power consumption <25W (without HDD)
    IP Bullet camera, CMOS Sensor, 3.6mm lens, 36 LEDs, 98ft IR, IR-CUT
    General
    Brand LineMak
    Model LS-IPC-3087-NFW
    System
    Main processor Hisilicon Hi3518C high performance DSP
    Sensor
    Sensor 1/4" OV CMOS Image
    Video
    Compression format H.264
    Display quality 1280*720 / 640*360 / 320*180
    Frame rate 30fps
    Streams Dual
    Interface
    Wireless port WiFi
    Network interface RJ-45 10/100 Base T port, WiFi
    User
    On-line user Max. 8
    Network
    Network protocol TCP/UDP/IP/HTTP/RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP
    Lens
    Lens Mega Pixel 3.6mm
    IR Range 98ft night vision
    LEDs 36pcs (5mm each)
    IR-CUT Filter Yes
    Minimum illumination 0.6Lux @ F1.2 (Color)
    0.8Lux @ F1.2 (B/W)
    Viewing angle 70°
    Security
    Safety Password protection, User management system
    Motion detection zone Yes
    Event notificacion Email / Picture
    Video loss Yes
    Environment
    Operation temperature 0ºC ~ 45ºC
    32ºF ~ 113ºF
    Working humidity 10% ~ 90%
    Power
    Power supply 12V/1A
    Appearance
    Color Blanco
    Standard
    Sensitivity 1.0V/lux-sec (550nm)
    Regulatory compliance FCC part 15, Subpart B Class B; EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 60950-1; C-tick AS/NZS CISPR 22, CISPR 24
