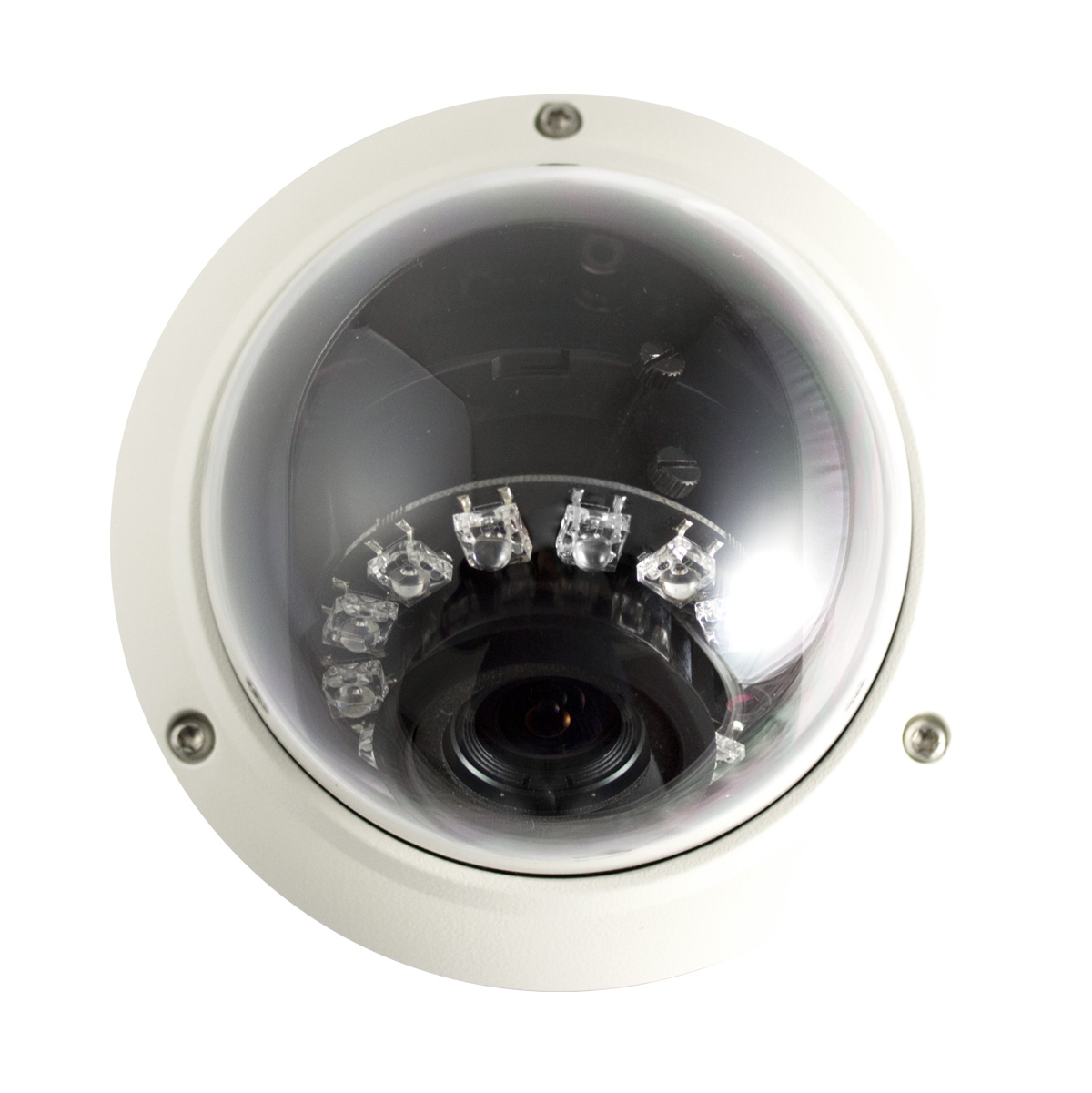

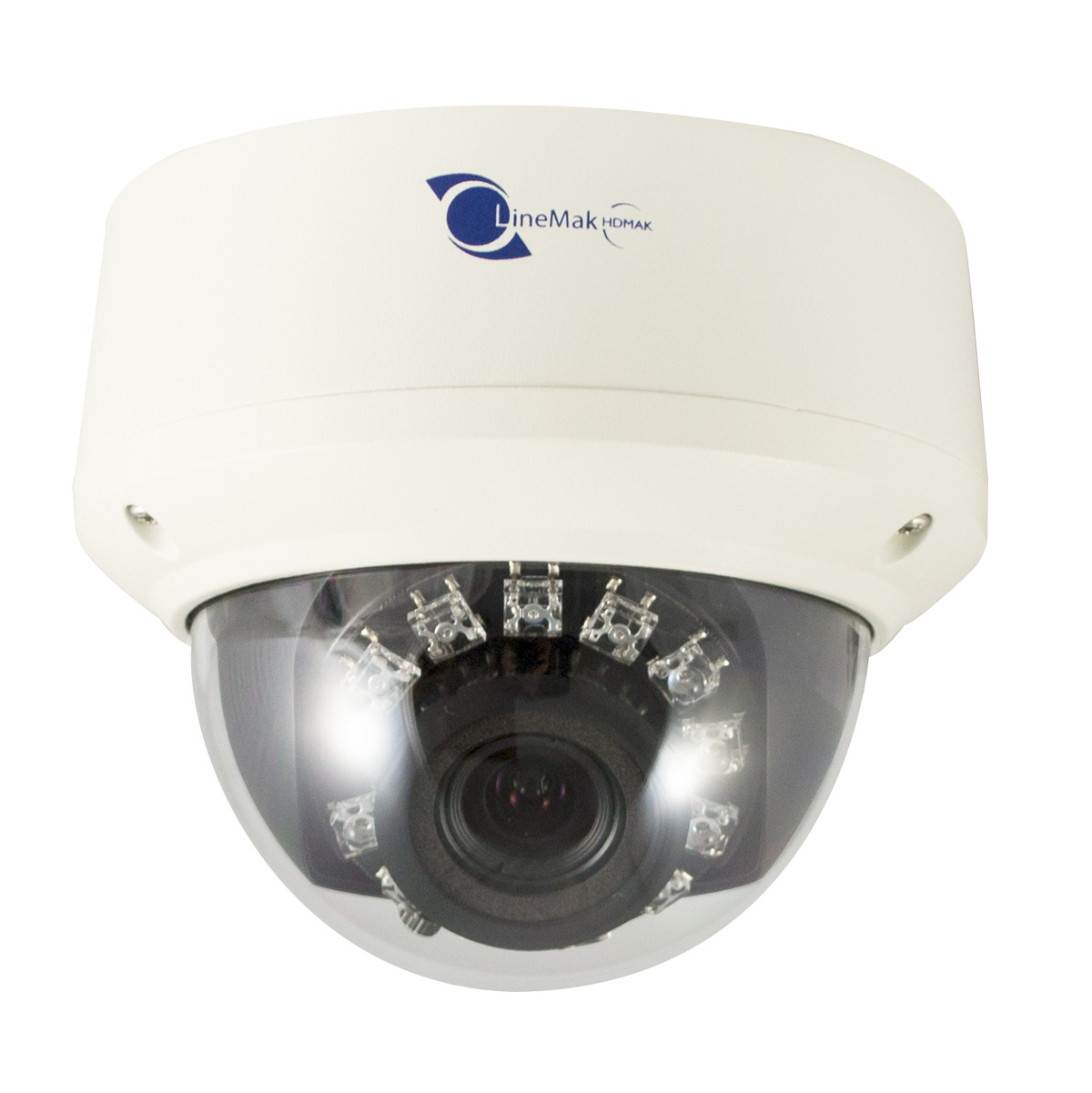

Linemak HD-MAK IP Dome camera SONY CCD 12 LED IP66 IK10 PoE
  • Linemak HD-MAK IP Dome camera SONY CCD 12 LED IP66 IK10 PoE - Image 1
  • Linemak HD-MAK IP Dome camera SONY CCD 12 LED IP66 IK10 PoE - Image 2
  • Linemak HD-MAK IP Dome camera SONY CCD 12 LED IP66 IK10 PoE - Image 3
  • Linemak HD-MAK IP Dome camera SONY CCD 12 LED IP66 IK10 PoE - Image 4
  • Linemak HD-MAK IP Dome camera SONY CCD 12 LED IP66 IK10 PoE - Image 5
  • - Vandal Resistant IK10 and IP66 Weatherpoof.
  • - Super Flux IR LEDs, 33ft-49ft IR distance.
  • - PoE or 12v power support.
  • - Safari, Chrome, IE, Firefox, Opera, all browser compatible.
  • - Onvif Profile S supports.
  • - Embedded Flash video technology inside camera.
  • LineMak HD-MAK waterproof and vandal resistant high-resolution IP dome camera, with a 3.3mm to 12mm varifocal lens and a viewing angle of 35° to 115° which has 8 LED super flux IR, and 33ft to 49ft of range IR night vision. Available in white.

    Weatherproof IP66, the highest level of impact resistance IK10. Service video BNC output inside, Micro SD memory for local recordings. Super flux IR LEDs for long distance, vast array of sensor selection available. Product with full range including Xarina WDR solutions. Not all bracket fitting options including the multiproduct junction box for professional hidden cable installations.

    This equipment can be easily installed anywhere passing undetected. Its resolution, sensitivity and wide opening angle are perfect for monitoring stores, offices, shops, warehouses and anywhere with little or no lighting.

    For best results, regarding image quality, use our servers and digital video recorders (DVR). Watch this camera online through any of our recording systems.

    Main features:
    - 3 Axis IR vandal dome/PoE/Micro SD slot.
    - Alarm and audio: In and out on cable.
    - ICR day/night with 3.3-12mm varifocal DC iris lens.
    - Free software for mobile (Android / iPhone / iPad).
    - Remote setup of camera, fully live display of camera.
    - Works over LAN/WAN (Internet) connection.
    - 100% fully functional IP camera with multi browser support.
    - Onvif Profile S supports motion detection and edge recording.
    - Embedded Flash video technology inside camera.
    - PoE or 12v power support for all installation types.
    - Supplied with NVR Software supporting up to 64 Channels.
    - Safari, Chrome, IE, Firefox, Opera, all browser compatible.
    - Leading edge style ad design.
    - Removable base for simpler install.
    - Standard conduit cable connection.
    - Internal connecting: Analogue RCA video output, Micro SD memory slot (max 32GB), status LEDs, reset button.
    - External cable: Power connector terminal block, PoE RJ45, RCA audio in / RCA audio out.

    Power adapter not included.
    IP
    IP
    Internet Protocol Address (or IP Address) is a unique address that computing devices use to identify themselves and communicate with other devices in the Internet Protocol network. An IP address is analogous to a street address or telephone number in that it is used to uniquely identify a network device to deliver mail message, or call ("view") a website.
    Weatherproof cameras in a year-round protection
    Our outdoor weatherproof cameras feature at least an IP66 weather rating. These outdoor cameras are built to keep out small particles such as dust and water, and are unaffected by a range of weather conditions including heavy rain and snow.
    Weatherproof cameras in a year-round protection
    Varifocal
    Varifocal
    Rely on our lenses with the capability of varying its focal length in order to zoom in on images. Adjust their focal length anywhere between their designated range. Varifocal lenses offer more flexibility, which allow the field of view to be adjusted manually. You can also get the view required rather than the limited by the constraints of the fixed Lens.
    IR illumination gives your cameras night vision
    IR illumination provides an extra source of invisible infrared light for surveillance when existing ambient light is either not present or too dim. And it is designed to be easily integrated into the IP network surveillance system and powered by PoE.
    IR illumination gives your cameras night vision
    PoE (Power over Ethernet)
    PoE (Power over Ethernet)
    is a technology that allows network equipment such as IP cameras, in addition to the data, get their power through the Ethernet UTP cable.
    True Day/Night for round-the-clock surveillance
    Our day/night cameras with true day/night (ICR) deliver a sharp image in low light and nighttime conditions. There is also real solution to day and night surveillance applications with lenses that deliver clear and sharp color images in daylight and black and white images in darkness using near infrared illumination, without the need to refocus the lens.
    True Day/Night for round-the-clock surveillance
    Free iOS/Android App allows easy remote viewing
    Free iOS/Android App allows easy remote viewing
    Enjoy convenient remote access from your iOS or Android mobile device with a FREE downloadable app. You can monitor your security system from anywhere at any time.
    Monitoring 3G
    Monitors 3G work like a standard baby monitor system with an iOS device serving as a monitor in the baby's room or anywhere else the baby may be and a second device as the parent's listening station. Since having a baby requires constant monitoring, with a baby monitor 3g you will be able to watch over and provide them with safety and happiness
    Monitoring 3G
    H.264 video compression reduces storage requirements
    H.264 video compression reduces storage requirements
    H.264 compression greatly reduces the size of your digital video files without compromising image quality. H.264 is a stable, proven compression technology which offers unbeatable recording picture quality and saves you valuable hard drive storage space.
    Automatic Electronic Shutter (AES)
    To determine the overall video brightness, it is necessary for cameras to be able to measure an actual scene illumination, being auto-iris the most advanced and commonly used method nowadays. In order to get this, the camera measures the light level and then adjusts the motorized iris in the auto-iris Lens.
    Automatic Electronic Shutter (AES)
    Automatic Gain Control (AGC)
    Automatic Gain Control (AGC)
    Automatic gain control boosts the video signal coming from the imager to amplify and improve scene illumination.
    Warranty: One (1) Year
  • Linemak HD-MAK IP Dome camera SONY CCD 12 LED IP66 IK10 PoE
    General
    Brand LineMak HD-MAK
    Model LS-IPV54-14WDR
    Sensor
    Resolution 1080p
    Sensor 1/2.8" Sony Exmor CCD
    Effective pixels 1920*1080
    Video
    Compression format H-264 High Profile (Support Baseline Profile) / MJPEG
    Video output Internal Service RCA output for BNC Video with IP Address OSD
    Frame rate 30fps
    Bit rate Stream1: 500Kbit/s~12Mbit/s
    Stream2: 100Kbit/s~6Mbit/s
    Stream3 (Fixed)
    Streams Stream1: Full Resolution
    Stream2: VGA / D1 / CIF or QCIF selectable
    Stream3: MJPEG
    Audio
    Audio compression G711 A-Law / G711 U-Law / RAW_PCM
    Audio input/output Input: 1*RCA
    Output: 1*RCA@1v Line Level
    Recording & Playback
    Recording mode Local Micro SD Memory, Remote FTP server, TCP/UDP CMS, RTSP connection (stream 1, 2 or 3)
    Storage & Backup
    SD Card slot Supports Micro SD/HCSD card max 32G.
    Interface
    Network interface 1 RJ-45 port (10/100 Base-T)
    Network
    Network protocol HTTP, TCP/IP (IPv4/IPv6 (DHCP/Fixed)), UDP/IP, RTSP, FTP, DHCP, NTP, PoE, NTP. Unicast and Multicast supported. Video streaming from SDK and NVMS / NVR software or #rd party applications.
    User ports setting for web port, RTSP port, and SDK control port and alarm port.
    Onvif v2.2 Profile-S listed
    RTSP Video Standard RFC2326, Support QuickTime / VLC Player. User security authentication (Enabled / Disabled)
    Web lenguage English, Chinese, Russian, Polish
    Lens
    Lens 3.3mm~12mm Varifocal IR Corrected DC Auto IRIS
    IR Range 33ft~49ft IR night vision
    LEDs 12pcs Super Flux LEDs
    IR-CUT Filter Yes
    Infrared wavelength 850nm
    Minimum illumination 0.1Lux@F1.2 (Color) (0 Lux IR LED On)
    Field view 79.3° ~ 29.8°
    Viewing angle 25° ~ 115°
    Security
    Privacy mask 5 User defined masking areas < 8% of total picture
    Environment
    Operation temperature -10°C ~ 55°C
    14ºf ~ 131ºF
    Storage temperature -20°C ~ 60°C
    -4ºF ~ 140ºF
    Weatherproof standard IP66 (protection against dust and strong water pressure)
    Working humidity 10% to 85% RH
    Vandalproof Resistance IK10
    Power
    Power supply DC 12V
    Power consumption 520mA (IR LED on)
    PoE Class 2 / Class 3
    Appearance
    Size 4.33 (H) * 4.92 (D) inches
    Weight 1.88 pounds
    Special function
    Electronic shutter speed (AES) 1/5~1/50,0000 / 50/60Hz software selectable.
    Auto Gain Control (AGC) Yes
    Standard
    Brightness Variable 0~100cc
    Quality Setting 1 - 9 (9 Highest)
    Orientation Horizontal Mirror / Vertical Flip
    Text Overlay Time / Date / Camera / Custom OSD
    Sharpness Variable 0~100
    Approvals CE / FCC / RoHS Compliant
