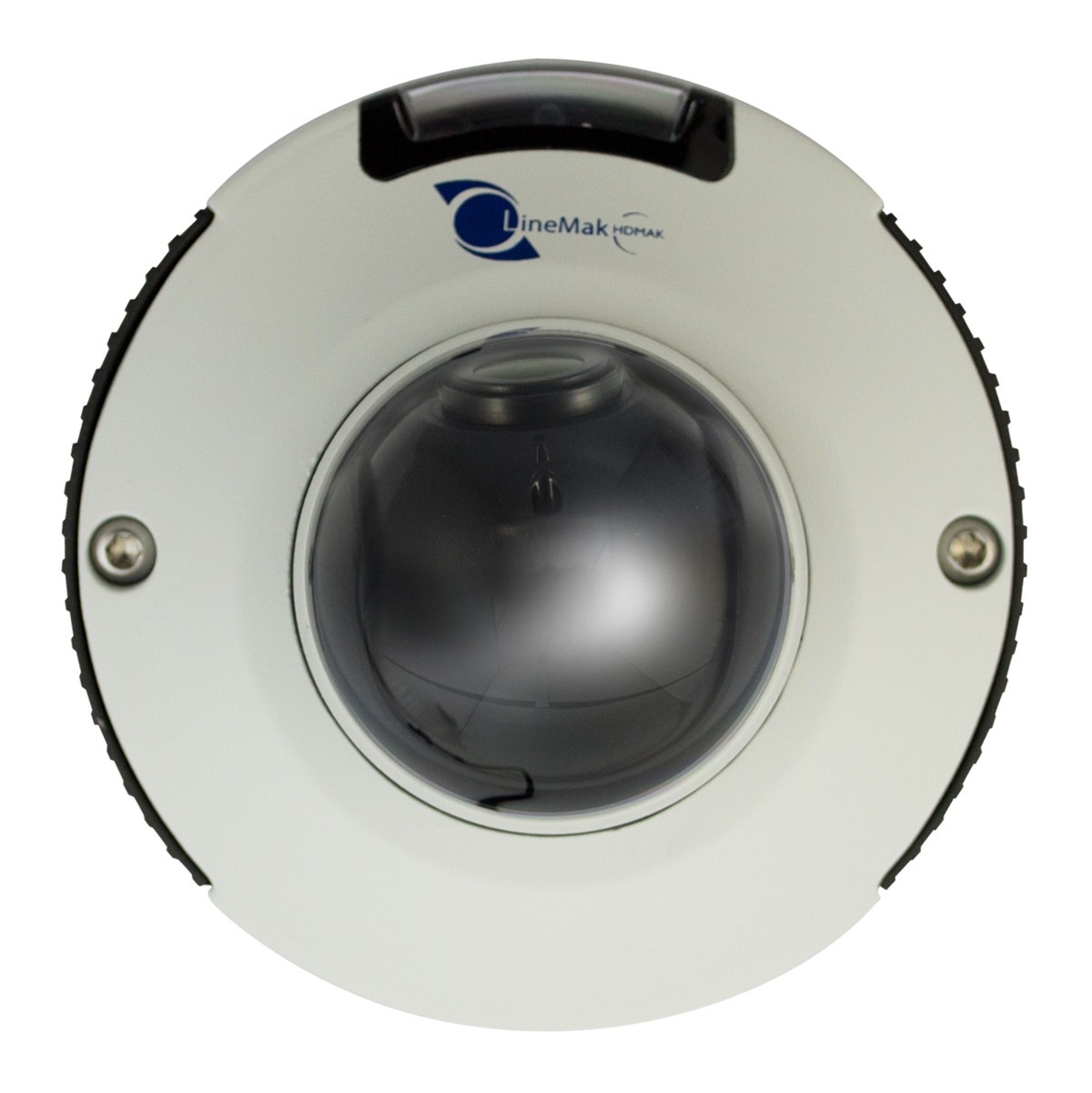

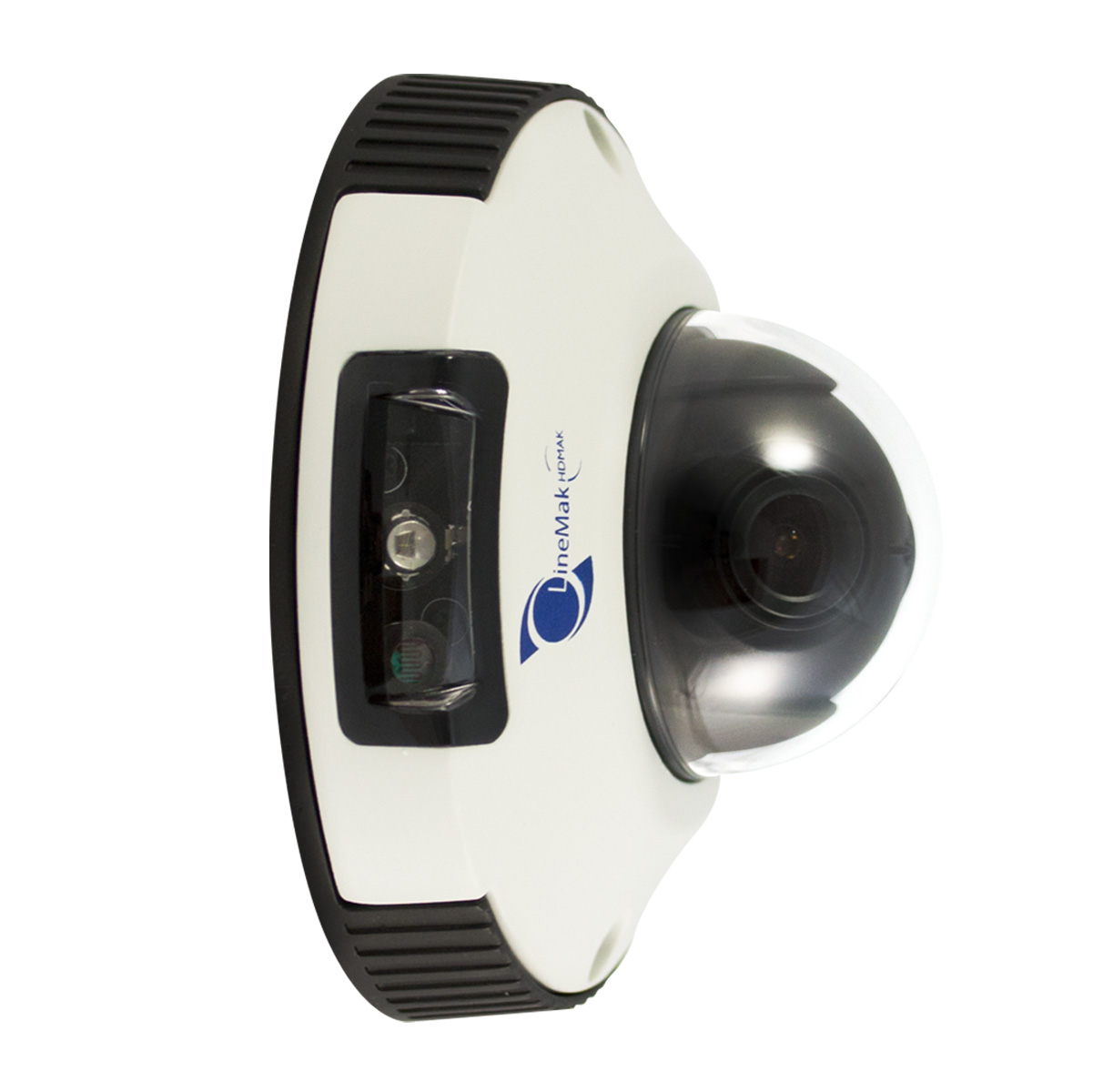

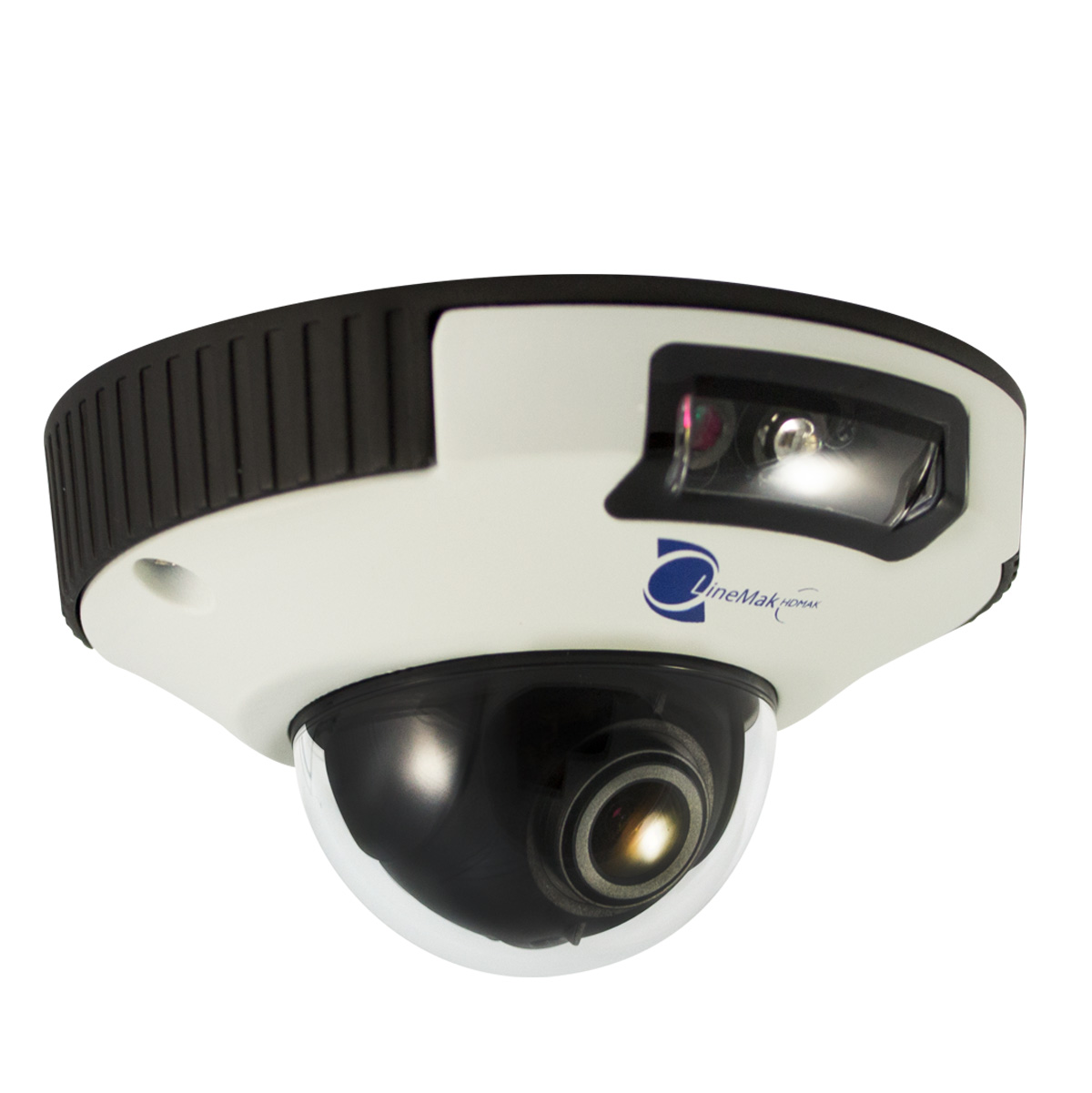

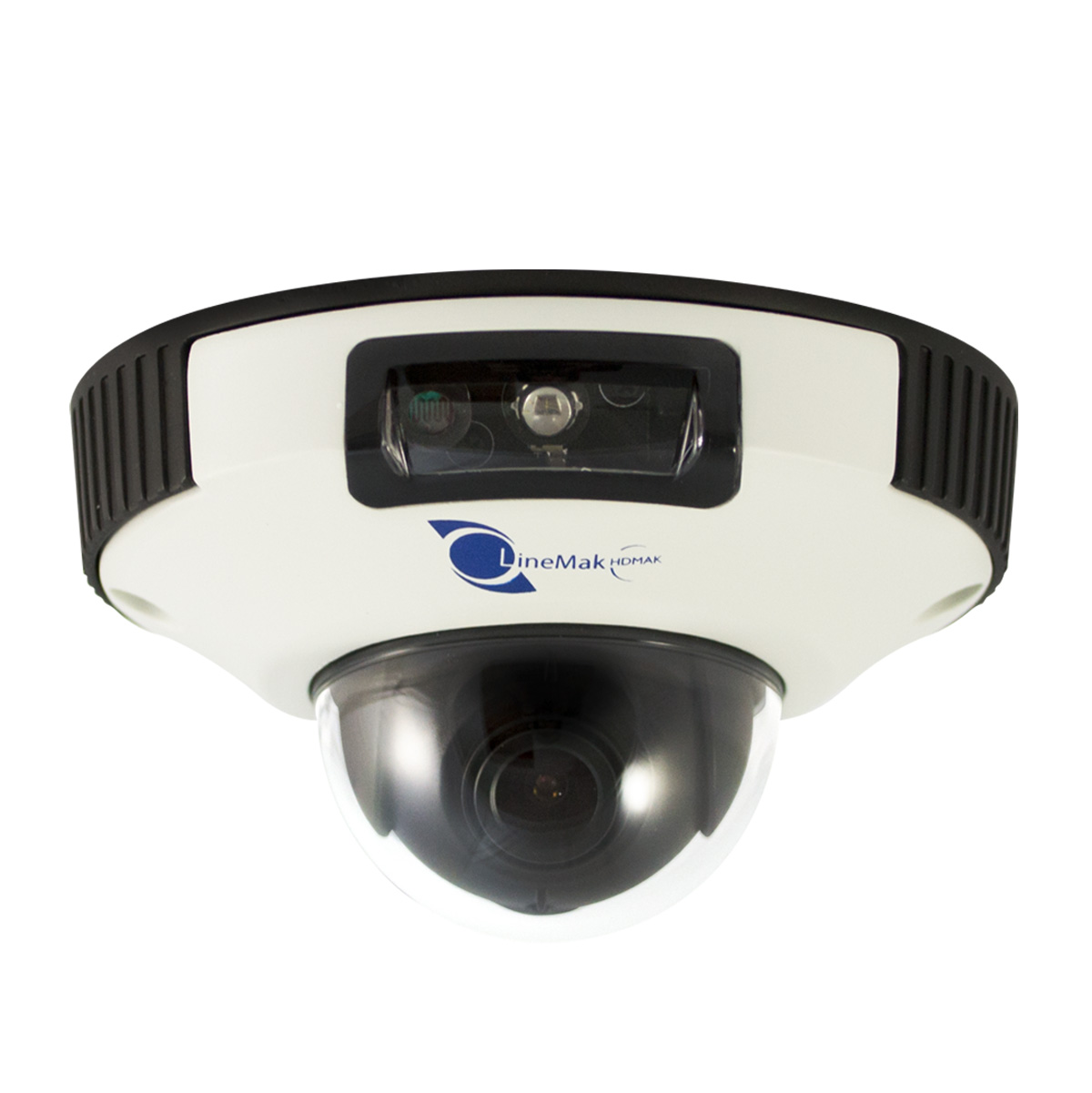

Linemak HD-MAK IP Dome camera 1/2.8 SONY 2Mp 1 LED 20ftsIR IK10/IP66
  • Linemak HD-MAK IP Dome camera 1/2.8 SONY 2Mp 1 LED 20ftsIR IK10/IP66 - Image 1
  • - Vandal Resistant IK10 and IP66 Weatherpoof.
  • - Super Flux IR LED. 20ft IR distance.
  • - PoE or 12v power support
  • - Safari, Chrome, IE, Firefox, Opera, all browser compatible.
  • - Onvif Profile S supports
  • - Embedded flash video technology inside camera.
Products recommendaded to work with this item:
linemak hdmak ip dome camera 1/2.8 sony 2mp 1 led 20ftsir ik10/ip66
+
linemak hdmak, 16 channel nvr, h.264/g.711a, vga/hdmi
Price for all 2: $497.98
  • LineMak HD-MAK waterproof and vandal resistant high-resolution IP mini dome camera, with a 3.6mm lens and a viewing angle of 92º. Also, it has 1 LED super flux IR and 20ft of range IR night vision. Available in white.

    Its NVR software supports up to 64 Channels Safari, Chrome, IE, Firefox, Opera, all browser compatible. Cameras recording in real-time depends on PC specifications.

    This equipment can be easily installed anywhere passing undetected. Due to its slightly tilted crystal, the IR is not reflected on the surface. Its resolution, sensitivity and wide opening angle are perfect for monitoring stores, offices, shops, warehouses and anywhere with little or no lighting.

    For best results, regarding image quality, use our servers and digital video recorders (DVR). Watch this camera online through any of our recording systems.

    Main Features:
    - Day/night mini vandal dome with IR LED.
    - Vandal resistant IK10 and IP66 weatherproof.
    - Fixed 3.6mm lens.
    - IR LED gives light to dark.
    - Single Super Flux IR LED.
    - Angled to help prevent dark corners.
    - Low power for longer life span.
    - 20ft night vision.
    - True color filter of 3 megapixels.
    - 100% fully functional IP camera with multi browser support.
    - Onvif profile S supports best day or night image.
    - Mega pixel support up motion detection and edge recording.
    - Embedded flash video technology inside camera.
    - PoE or 12v power support for all installation types.
    - Supplied with NVR software support up to 64 channels.
    - Safari, Chrome, IE, Firefox, Opera, all browser compatible.

    Power adapter included.

    IP
    IP
    Internet Protocol Address (or IP Address) is a unique address that computing devices use to identify themselves and communicate with other devices in the Internet Protocol network. An IP address is analogous to a street address or telephone number in that it is used to uniquely identify a network device to deliver mail message, or call ("view") a website.
    Weatherproof cameras in a year-round protection
    Our outdoor weatherproof cameras feature at least an IP66 weather rating. These outdoor cameras are built to keep out small particles such as dust and water, and are unaffected by a range of weather conditions including heavy rain and snow.
    Weatherproof cameras in a year-round protection
    PoE (Power over Ethernet)
    PoE (Power over Ethernet)
    is a technology that allows network equipment such as IP cameras, in addition to the data, get their power through the Ethernet UTP cable.
    IR illumination gives your cameras night vision
    IR illumination provides an extra source of invisible infrared light for surveillance when existing ambient light is either not present or too dim. And it is designed to be easily integrated into the IP network surveillance system and powered by PoE.
    IR illumination gives your cameras night vision
    H.264 video compression reduces storage requirements
    H.264 video compression reduces storage requirements
    H.264 compression greatly reduces the size of your digital video files without compromising image quality. H.264 is a stable, proven compression technology which offers unbeatable recording picture quality and saves you valuable hard drive storage space.
    True Day/Night for round-the-clock surveillance
    Our day/night cameras with true day/night (ICR) deliver a sharp image in low light and nighttime conditions. There is also real solution to day and night surveillance applications with lenses that deliver clear and sharp color images in daylight and black and white images in darkness using near infrared illumination, without the need to refocus the lens.
    True Day/Night for round-the-clock surveillance
    Automatic Gain Control (AGC)
    Automatic Gain Control (AGC)
    Automatic gain control boosts the video signal coming from the imager to amplify and improve scene illumination.
    Automatic Electronic Shutter (AES)
    To determine the overall video brightness, it is necessary for cameras to be able to measure an actual scene illumination, being auto-iris the most advanced and commonly used method nowadays. In order to get this, the camera measures the light level and then adjusts the motorized iris in the auto-iris Lens.
    Automatic Electronic Shutter (AES)
    LED array
    LED array
    The infrared led array has a wider emitting angle than traditional infrared leds. Traditional infrared leds can only emit the active infrared ray in a narrow angle. When there is a security camera with infrared led array, the emitted infrared will cover the whole surveillance area, which means the infrared led array camera can see the whole area in a dark environment such as at night.
    Monitoring 3G
    Monitors 3G work like a standard baby monitor system with an iOS device serving as a monitor in the baby's room or anywhere else the baby may be and a second device as the parent's listening station. Since having a baby requires constant monitoring, with a baby monitor 3g you will be able to watch over and provide them with safety and happiness
    Monitoring 3G
    Full HD sets
    Full HD sets
    Be able to handle High Definition signal of 1080 lines of information across the screen with Full HD. Since Full HD is only a marketing term, it does not indicate any particular qualities besides 1080p. 1080p televisions have a resolution of 1920×1080 and are progressive scan, which means all lines of each frame of video are drawn on the set.
    Warranty: One (1) Year
  • Linemak HD-MAK IP Dome camera 1/2.8 SONY 2Mp 1 LED 20ftsIR IK10/IP66
    General
    Brand LineMak HD-MAK
    Model LS-IPV54-14ZDR
    Sensor
    Resolution 1080p / 2.0Mp
    Sensor 1/2.8" Sony Exmor
    Effective pixels 1920*1080
    Video
    Compression format H.264 High Profile (Support Baseline Profile) / MJPEG
    Video output Service BNC Video with IP OSD using supplied dangle cable
    Frame rate 30fps
    Bit rate Stream1: 50Kbit/s~12Mbit/s
    Stream2: 10Kbit/s~6Mbit/s
    Stream3 (Fixed)
    Streams User setting of Stream 1/2 at supported Resolutions, Stream3 MJPEG Stream
    Audio
    Audio compression G711 A-Law / G711 U-Law / RAW_PCM
    Audio input/output Input: 1-Ch
    Output: 1-Ch RCA@1v line level
    Recording & Playback
    Recording mode Local MicroSD Memory, Remote FTP server, TCP/UDP CMS, RTSP connection (stream 1,2 or 3)
    Storage & Backup
    SD Card slot Internal memory card supports Max 64GB. Supports Edge Recording
    Interface
    Network interface 1 RJ-45 (10/100 Base-T) port
    Network
    Network protocol HTTP, TCP/IP (IPv4/IPv6 (DHCP/Fixed)), UDP/IP, RTSP, FTP, DHCP, NTP, PoE, NTP. Unicast and Multicast supported, Onvif v2.2 Profile-S listed
    RTSP Video Standard RFC2326, Support QuickTime / VLC Player. User security authentication (Enabled/Disabled)
    Web lenguage English, Chinese, Russian, Polish
    Lens
    Lens 3.6mm Fixed Mega Pixel IR Coated
    IR Range 20ft night vision
    LEDs 1 LED Super Flux IR
    IR-CUT Filter Yes
    Infrared wavelength 850nm
    Minimum illumination 0.1Lux@F1.2 (Color) (0 Lux IR LED On)
    Viewing angle 92°
    Security
    Privacy mask 5 User defined masking areas < 8% of total picture
    Environment
    Operation temperature -10°C ~ 55°C
    14ºF ~ 131ºF
    Storage temperature -20°C ~ 60°C
    -4ºF ~ 140ºF
    Weatherproof standard IP66 (protection against dust and strong water pressure)
    Working humidity 10% ~ 85% RH
    Vandalproof Resistance IK10
    Power
    Power supply DC 12V
    Power consumption 335mA (with LED on)
    PoE Class 3
    Appearance
    Size 2.37(H) * 4.14(D) inches
    Weight 11.65 ounces
    Special function
    Electronic shutter speed (AES) 1/5~1/50,0000, 50/60Hz software selectable
    Auto Gain Control (AGC) Yes
    Standard
    Brightness Variable 0~100
    Quality Setting 1 - 9 (9 Highest)
    Orientation Horizontal Mirror / Vertical Flip
    Text Overlay Time / Date / Camera / Custom OSD
    Sharpness Variable 0~100
    Approvals CE / FCC / RoHS Compliant
