Linemak HD-MAK, 32 Channel NVR, H.264/G.711A, VGA/HDMI
  • Linemak HD-MAK, 32 Channel NVR, H.264/G.711A, VGA/HDMI - Image 1
  • - This NVRs HD-MAK are intender for use with Linemak HD-MAK IP cameras, Hikvision and Dahua with protocol ONVIF 2.0 or NET-IP.
  • - It support mobile surveillance.
  • - It supports IP cameras with ONVIF 2.0 or NET-IP protocol.
  • - Hard drive not included.
  • - H.264 compression format.
  • - High definition HDMI / VGA outputs.
Products recommendaded to work with this item:
linemak hdmak, 32 channel nvr, h.264/g.711a, vga/hdmi
+
linemak hdmak ip dome camera 1/2.8 sony 2mp 15 led ik6 ip66 poe
+
linemak hdmak ip dome camera 1/2.8 sony 2mp 1 led 20ftsir ik10/ip66
+
seagate barracuda 1 tb hdd sata 6 gb/s ncq 64mb cache
Price for all 4: $1118.96
  • This NVR (Network Video Recorder) is very easy to use and features an English menu and motion detection recording. Monitor your cameras on the Internet from anywhere through your PC, mobile cellphone (Android, iPhone) or tablet (Android, iPad) in real time. Also, it includes a mouse and remote control.

    Multiple recording mode: constant and motion detection
    Recording method: USB mouse and network controller.
    Compatible with WIN98 / WIN2000 / WIN XP / WIN VISTA / WIN SEVEN.

    Embedded CMS system, fully functional friendly interface, easy to use. Original "quick configuration" feature that enables NVR configuration and management operations easy to get started.

    Original camera private network enables plug-and-play camera access auto detection and schedule setup for fast rapid use. Real-time fault alarm mechanism to timely reporting of hard disks, networks, fault information, such as camera disconnection. Embedded Webserver using Flash technology to support common browsers real-time monitoring and playback.

    This NVRs HD-MAK are intender for use with Linemak HD-MAK IP cameras, Hikvision and Dahua with protocol ONVIF 2.0 or NET-IP.

    Main features:
    - High profile H.264.
    - 32 recording channels 5MP/3MP/1080P/720P.
    - Full support 4 HDD max 16TB.
    - High-definition output HDMI and VGA.
    - Simple to use GUI with mouse control.
    - Auto add devices and auto schedule recording.
    - 100% stability with embedded Linux OS.
    - Playback and live from web browser.
    - PC and MAC remote client application.
    - Smart Phone iOS or Android fee App.
    - Download from iTunes / Google play.

    Full Remote NVR configuration available with all software platforms. With play-back and live viewing.

    Hard drive not included.
    This Recorder does not include Hard Drive since it depends on the installer or the consumer on what requirement of Hard Drive capacity they are in need. We sell various types of Hard Drives. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.

    H.264 video compression reduces storage requirements
    H.264 video compression reduces storage requirements
    H.264 compression greatly reduces the size of your digital video files without compromising image quality. H.264 is a stable, proven compression technology which offers unbeatable recording picture quality and saves you valuable hard drive storage space.
    Keep everything under watch with multiple recording modes
    Multiple selectable recording options are available such as motion detection, continuous and scheduled recording. This enables you to choose the appropriate recording type for your security needs and to maximize the number of hours of video you can record and store on your hard drive.
    Keep everything under watch with multiple recording modes
    Free iOS/Android App allows easy remote viewing
    Free iOS/Android App allows easy remote viewing
    Enjoy convenient remote access from your iOS or Android mobile device with a FREE downloadable app. You can monitor your security system from anywhere at any time.
    HDMI delivers enhanced image clarity
    HDMI supports standard, enhanced or HD video. This recorder features an HDMI output which delivers enhanced image clarity with crisp images and enables you to view your security camera video in HD on your HDTV screen. HD images can be reproduced with the HDMI support for HD display.
    HDMI delivers enhanced image clarity
    Motion detection
    Motion detection
    Pre-define zones within the area covered by each camera so that the DVR only starts recording when motion is detected within the zone. This saves hard drive space and reduces the amount of video recorded, making it easier to find the video you need if there is an event.
    Remote setup to access the DVR screen setting
    DVR settings adjustment such as remote firmware upgrade, email notification, recording resolution, and motion recording. All DVR settings in the Display, Record, Device, Storage, System, Security Network and Upgrade screens are accessible remotely, for easy adjustment of related DVR functions.
    Remote setup to access the DVR screen setting
    Remote monitoring Surveillance
    Remote monitoring Surveillance
    Rely on our current and advanced technology by using any top-of-line wireless sensing device for remotely monitoring your goods or property from everywhere, every time. Be able to manipulate your security system through a simple click and have it all watched like you were nearby.
    Monitoring 3G
    Monitors 3G work like a standard baby monitor system with an iOS device serving as a monitor in the baby's room or anywhere else the baby may be and a second device as the parent's listening station. Since having a baby requires constant monitoring, with a baby monitor 3g you will be able to watch over and provide them with safety and happiness
    Monitoring 3G
    Save money with no contracts and no monthly fees
    Save money with no contracts and no monthly fees
    Once your system is installed, you have the peace of mind that your property is protected with the added advantage of no binding contracts and no recurring monthly subscription fees.
    Warranty: One (1) Year
  • Linemak HD-MAK, 32 Channel NVR, H.264/G.711A, VGA/HDMI
    General
    Brand LineMak
    Model LS-NVR10-04E3-032NS
    Video
    Resolution VGA: 1024*768, 1280*1024, 1600*1200
    HDMI: 1280*720p, 1920*1080p
    Compression format Up to H.264 (ISO/IEC 14496-10) high profile to level 4.2
    Display quality Single screen: 1*1080p / 720p with Tour Quad display of 1080p / 720p resolutions
    Split screen: 1/4/6/8/9/16 layout for 1080p / 720p Live video
    Frame rate NTSC: 25fps
    PAL: 30fps
    Video recording 32 Channel 5MP /3MP / 1080P / 720P
    Rate control CBR (Constant Bit Rate), VBR (Variable Bit Rate) as defined by IP Device
    Stream input 720P: Standard 3Mbps 720P (main stream) or VGA quality (sub stream)
    5M / 3M / 1080P: Standard 4.5Mbps 1080P (main stream) or VGA quality (sub stream)
    Audio
    Audio compression G711 A-Law, G711 U-Law
    Recording & Playback
    Recording mode Constant, motion detection
    Local playback 4-Ch 1080P / 720P, It support 5MP
    Speed 720p: Average bit-rate 3Mbps with 32 Channel Up to 15 days
    1080p/3MP/5MP: Average bitrate 4.5Mbps with 32 Channel Up to 10 days
    Interface
    Video input/output Input:N/A
    Output: 1-Ch VGA and 1-Ch HDMI
    Audio input/output Input: N/A
    Output: 3.5mm linear audio
    USB Port 2 USB 2.0 Respectively as a backup and USB mouse (USB keyboard support for name input)
    HDD Port 4 SATA (up to 4TB each)
    Network interface 2 RJ45 10M/100M network ports
    Network
    Network protocol RTP/RTCP, TCP/UDP, HTTP, DHCP, DNS,NTP, RTMP, Sunell SDK,ONVIF
    Web server Embedded server supporting Flash Video RTMP server (Multi Browser Support) 4ch Live cameras real-time.
    Environment
    Operation temperature 0ºC ~ 45ºC
    14ºF ~ 113ºF
    Working humidity 5% ~ 90%
    Cooling fan Main chip cooling using heat sinks, plus thermal controlled intelligent cooling fan.
    Power
    Power supply DC AC110/220V, 47-63HZ
    Power consumption Max 15W without HDD,USB device ;Max 40W with 4HDD
    Power switch Power on from connected power source / power off software control with authentication.
    Appearance
    Size 17.33(L) * 3.55(H) 17.33(W) inches
    Weight 15.58 pounds

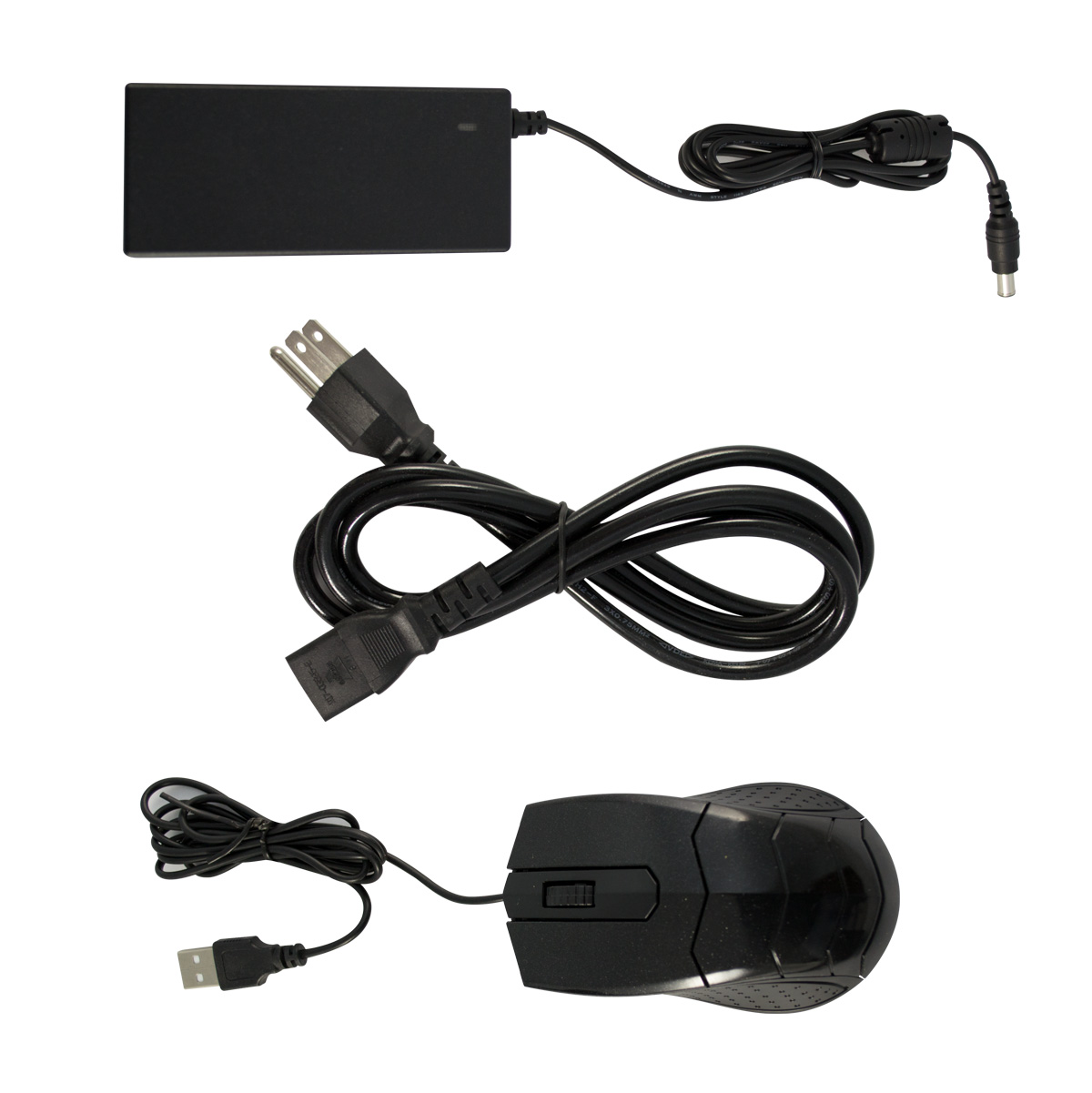

    Accessories
    Mouse Yes
    Standard
    Certificates CE / FCC / RoHS Compliant
