IR Bullet camera 1/3 SONY CCD 700TVL 3.6mm lens 36 LEDs 98fts IR IP66

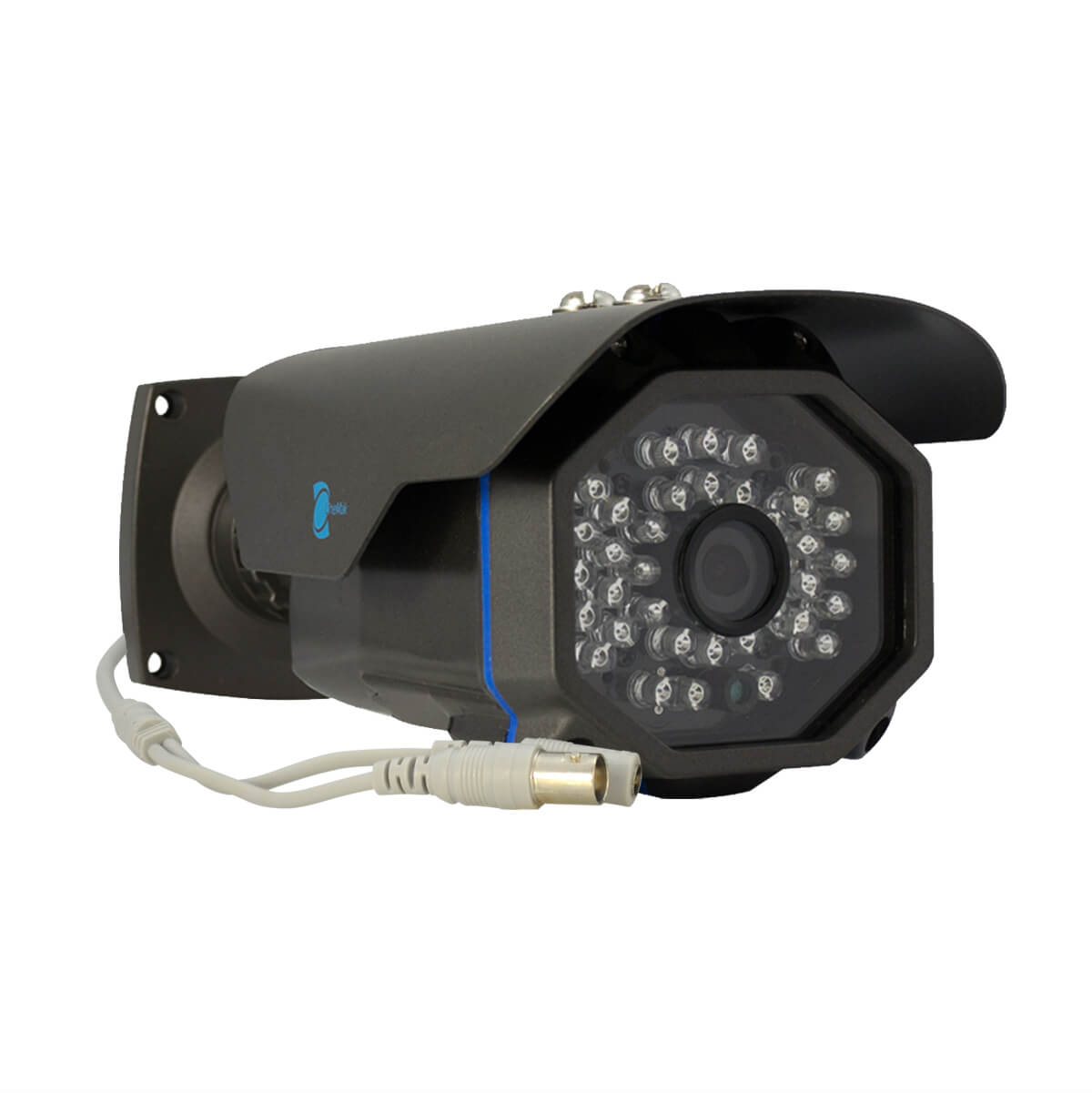

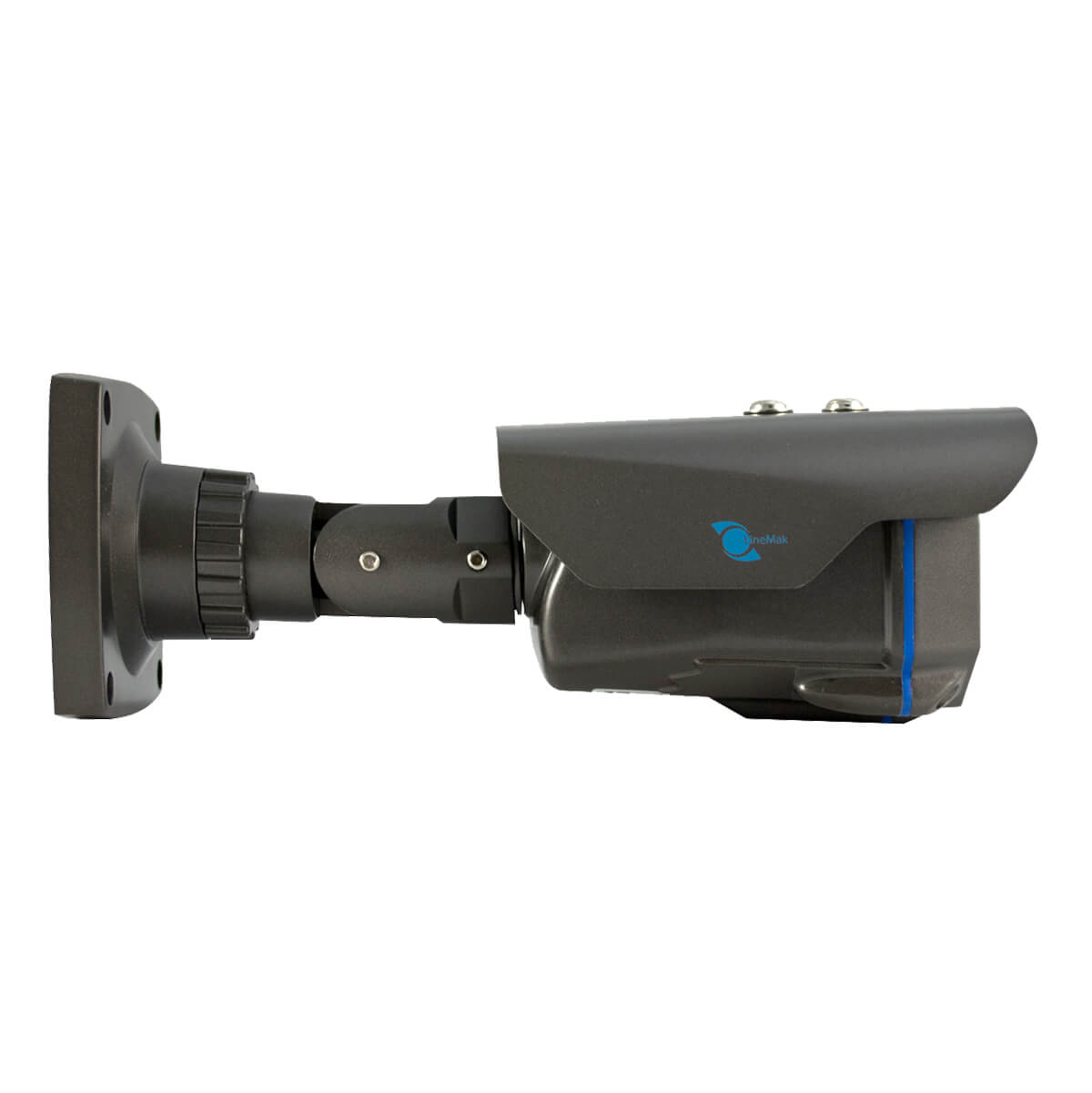

  • IR Bullet camera 1/3 SONY CCD 700TVL 3.6mm lens 36 LEDs 98fts IR IP66 - Image 1

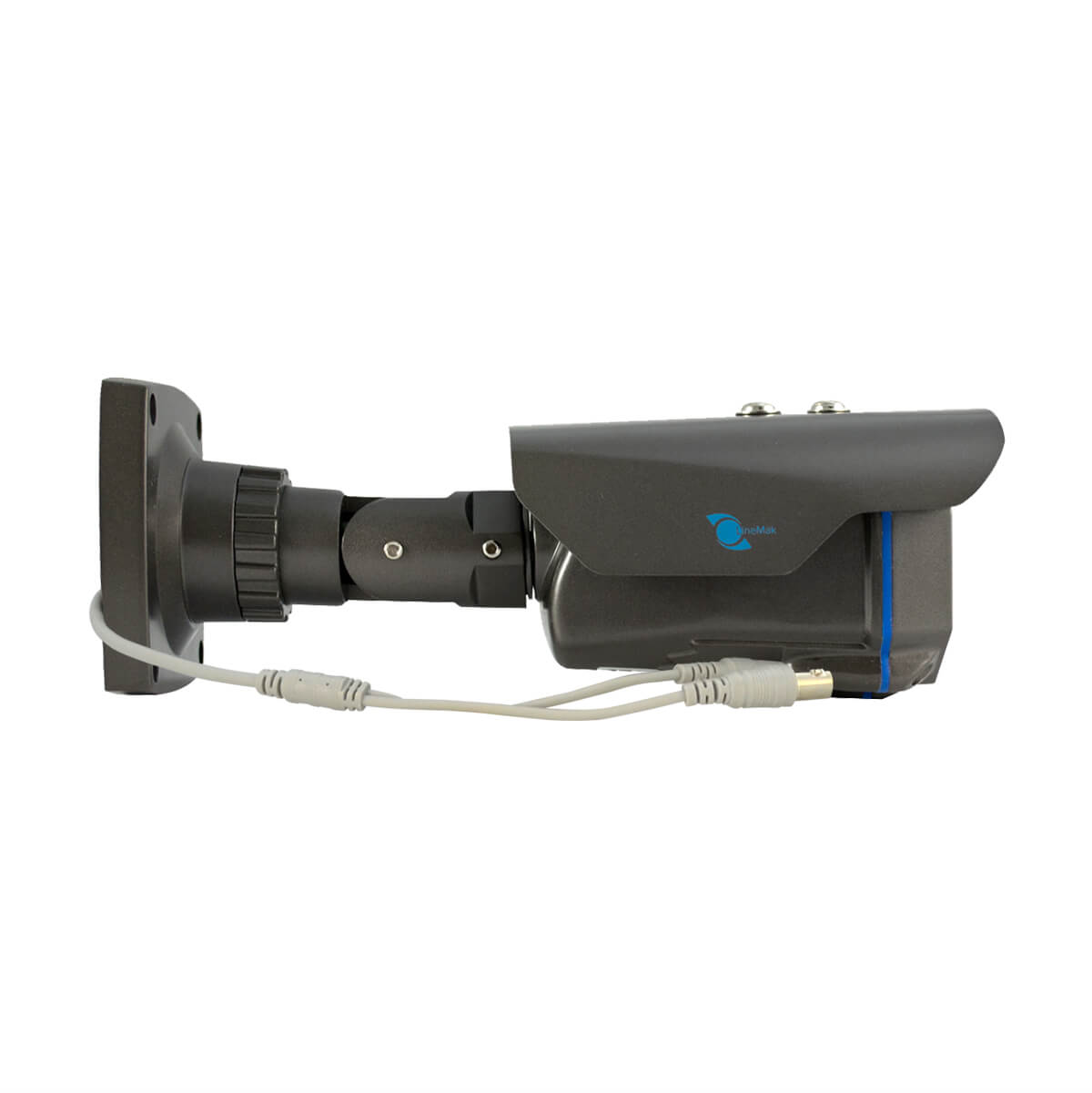

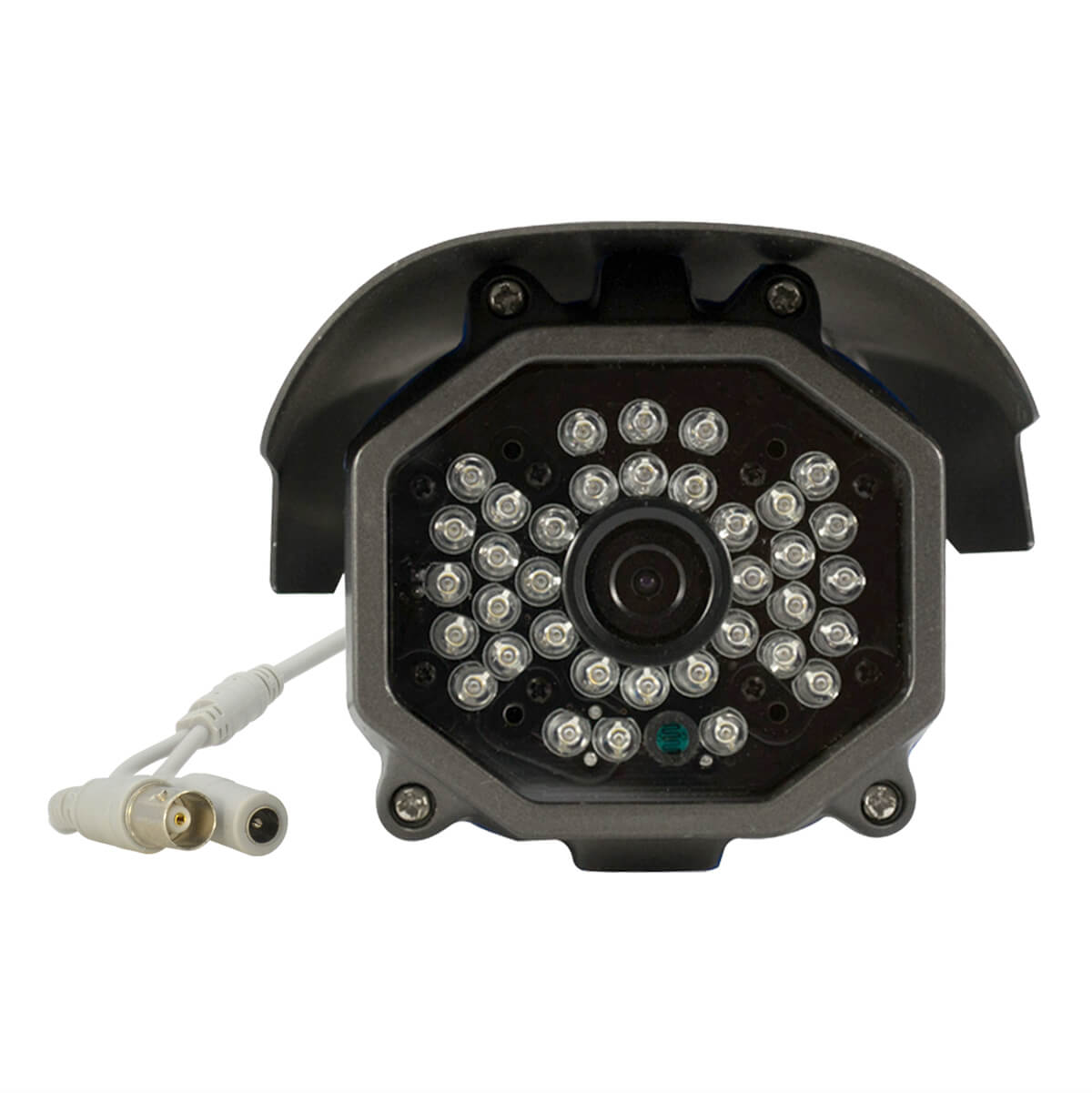

  • IR Bullet camera 1/3 SONY CCD 700TVL 3.6mm lens 36 LEDs 98fts IR IP66 - Image 2

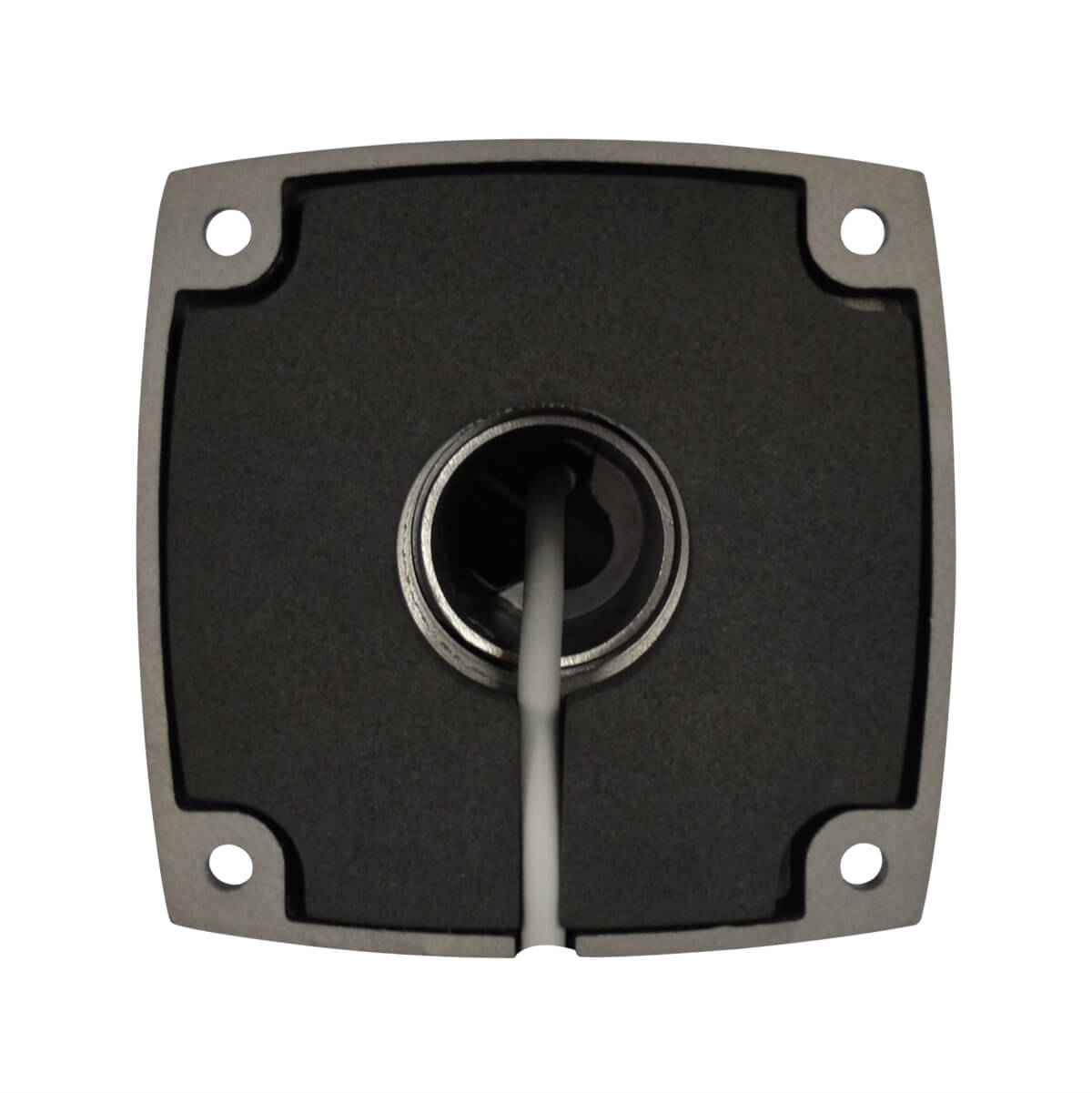

  • IR Bullet camera 1/3 SONY CCD 700TVL 3.6mm lens 36 LEDs 98fts IR IP66 - Image 3

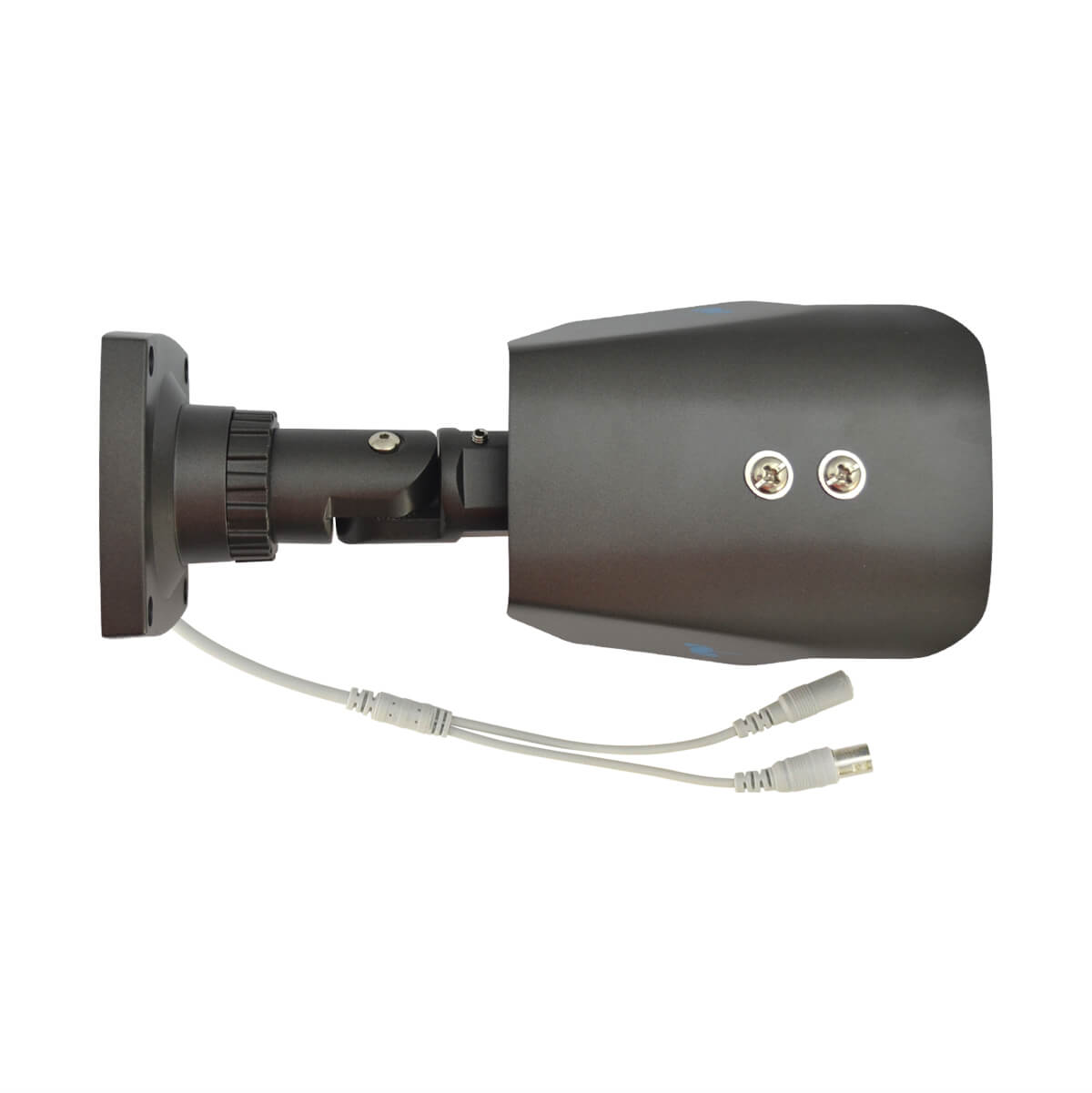

  • IR Bullet camera 1/3 SONY CCD 700TVL 3.6mm lens 36 LEDs 98fts IR IP66 - Image 4

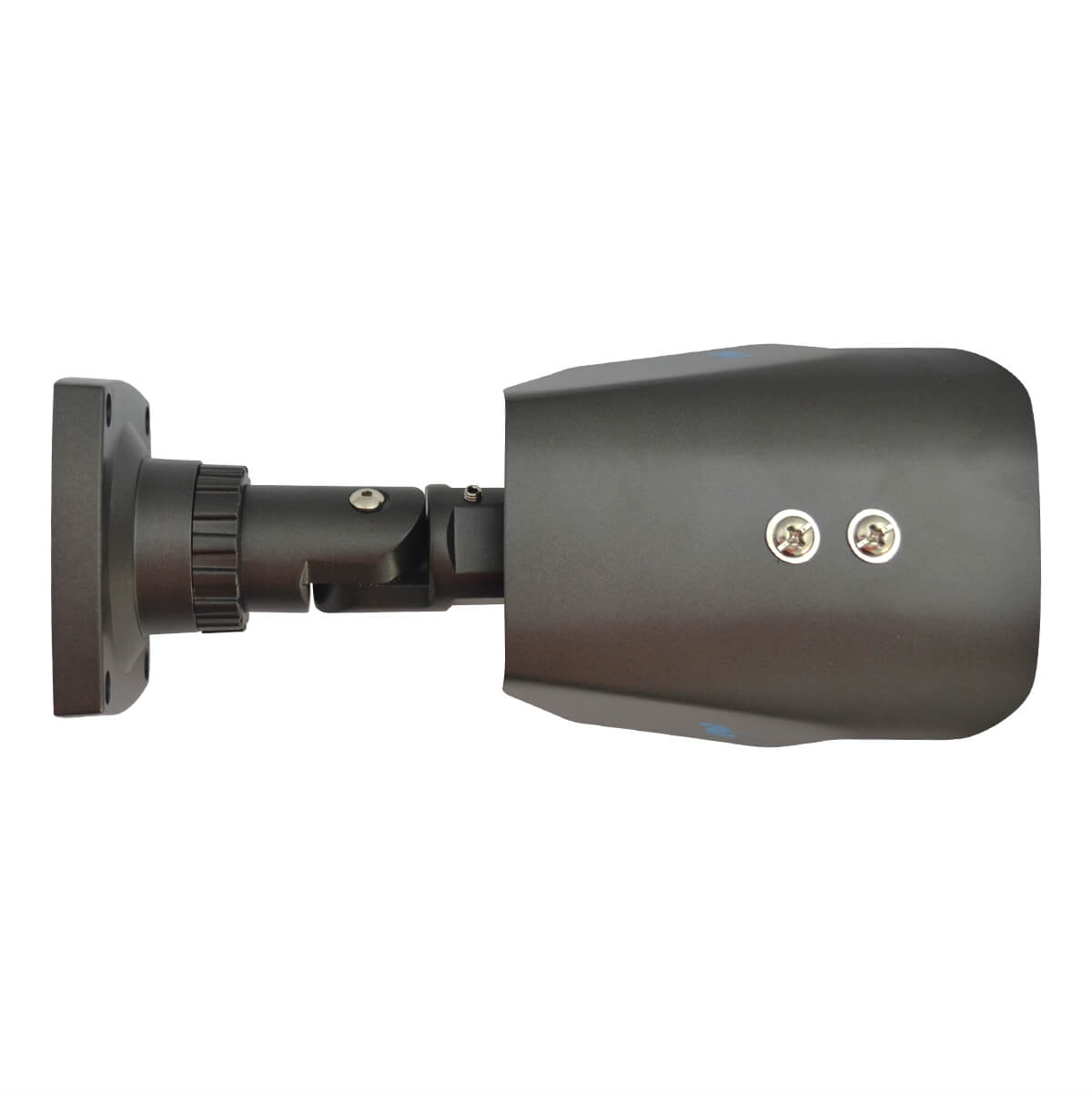

  • IR Bullet camera 1/3 SONY CCD 700TVL 3.6mm lens 36 LEDs 98fts IR IP66 - Image 5

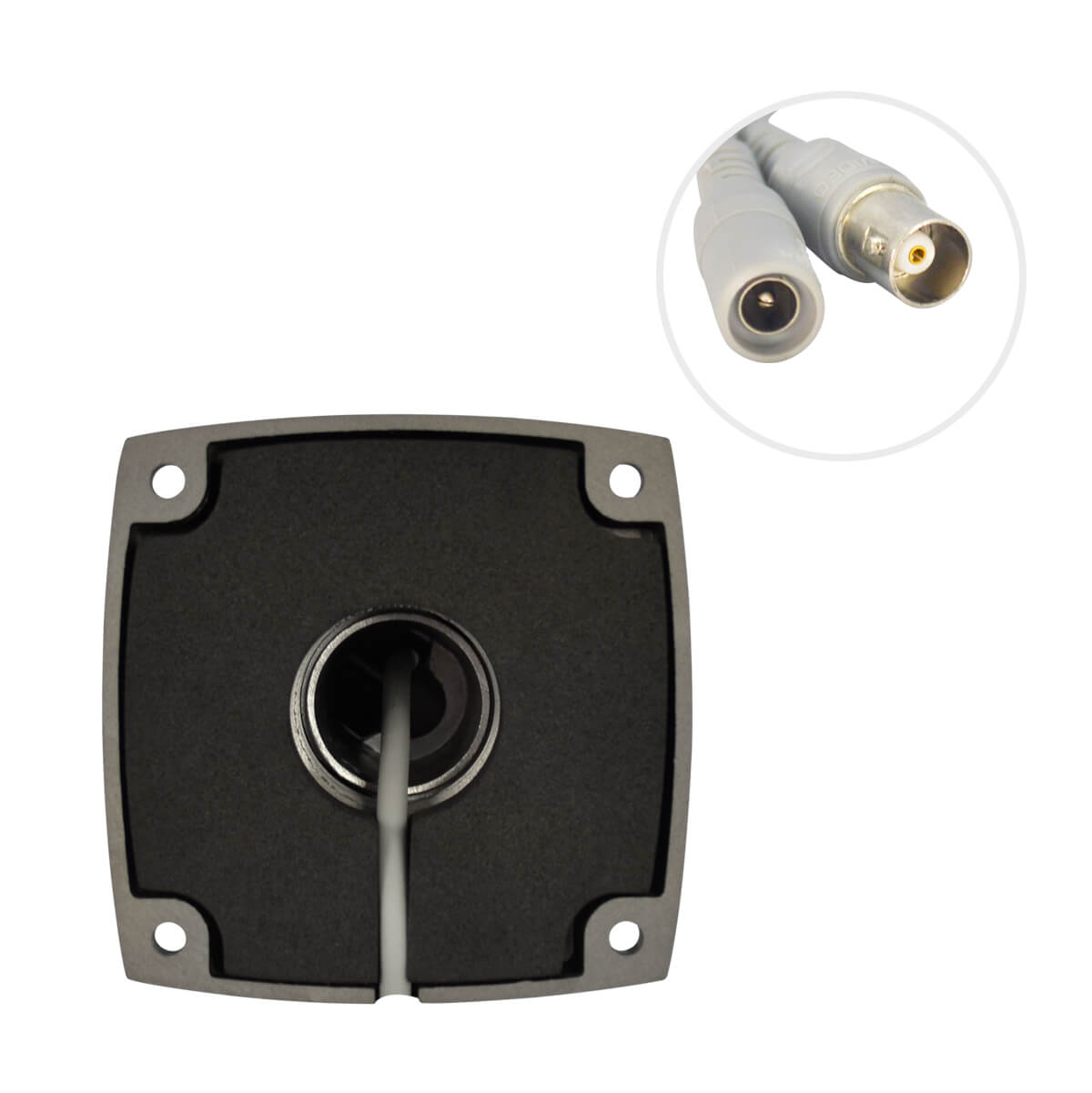

  • IR Bullet camera 1/3 SONY CCD 700TVL 3.6mm lens 36 LEDs 98fts IR IP66 - Image 6

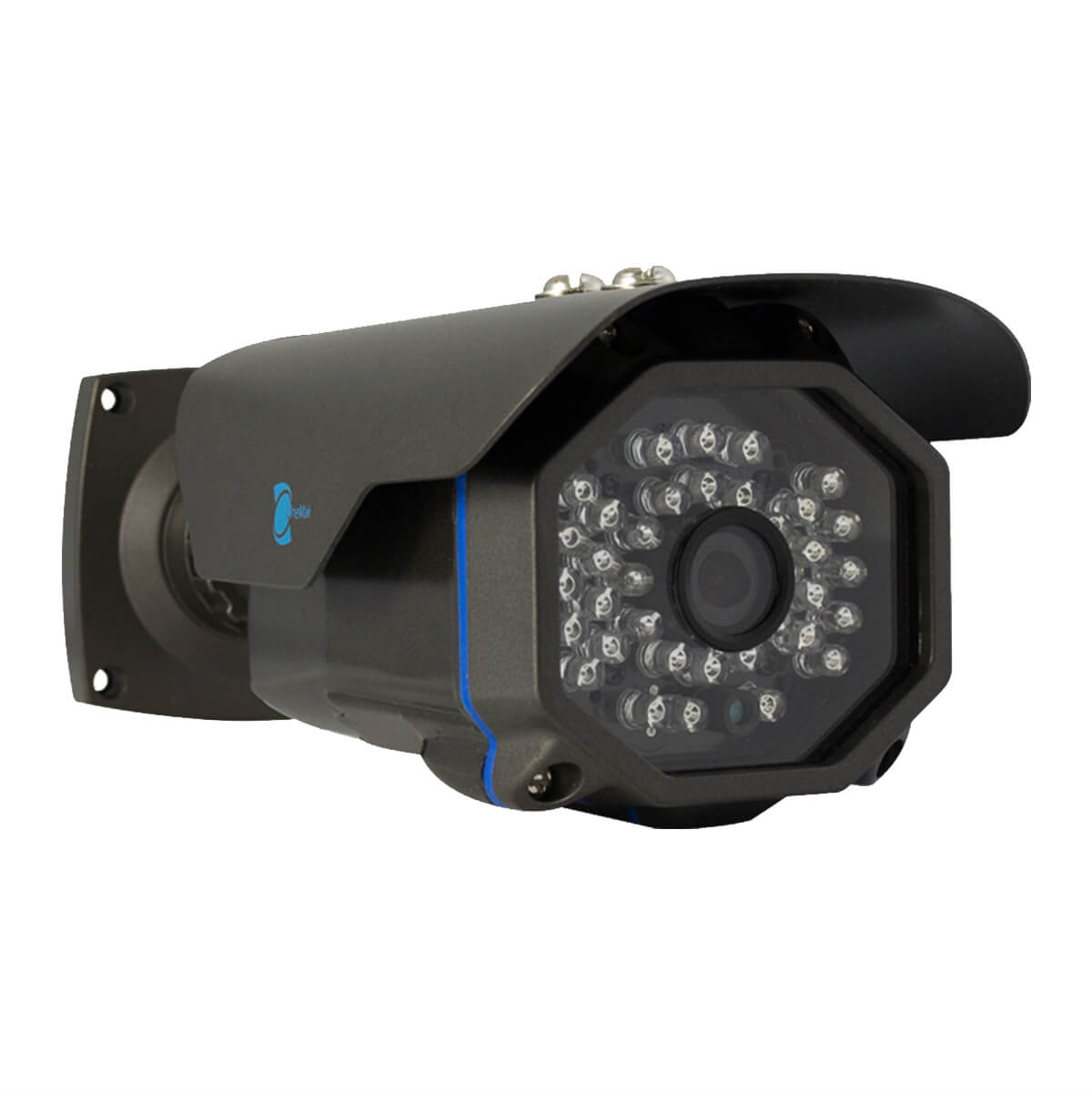

  • IR Bullet camera 1/3 SONY CCD 700TVL 3.6mm lens 36 LEDs 98fts IR IP66 - Image 7

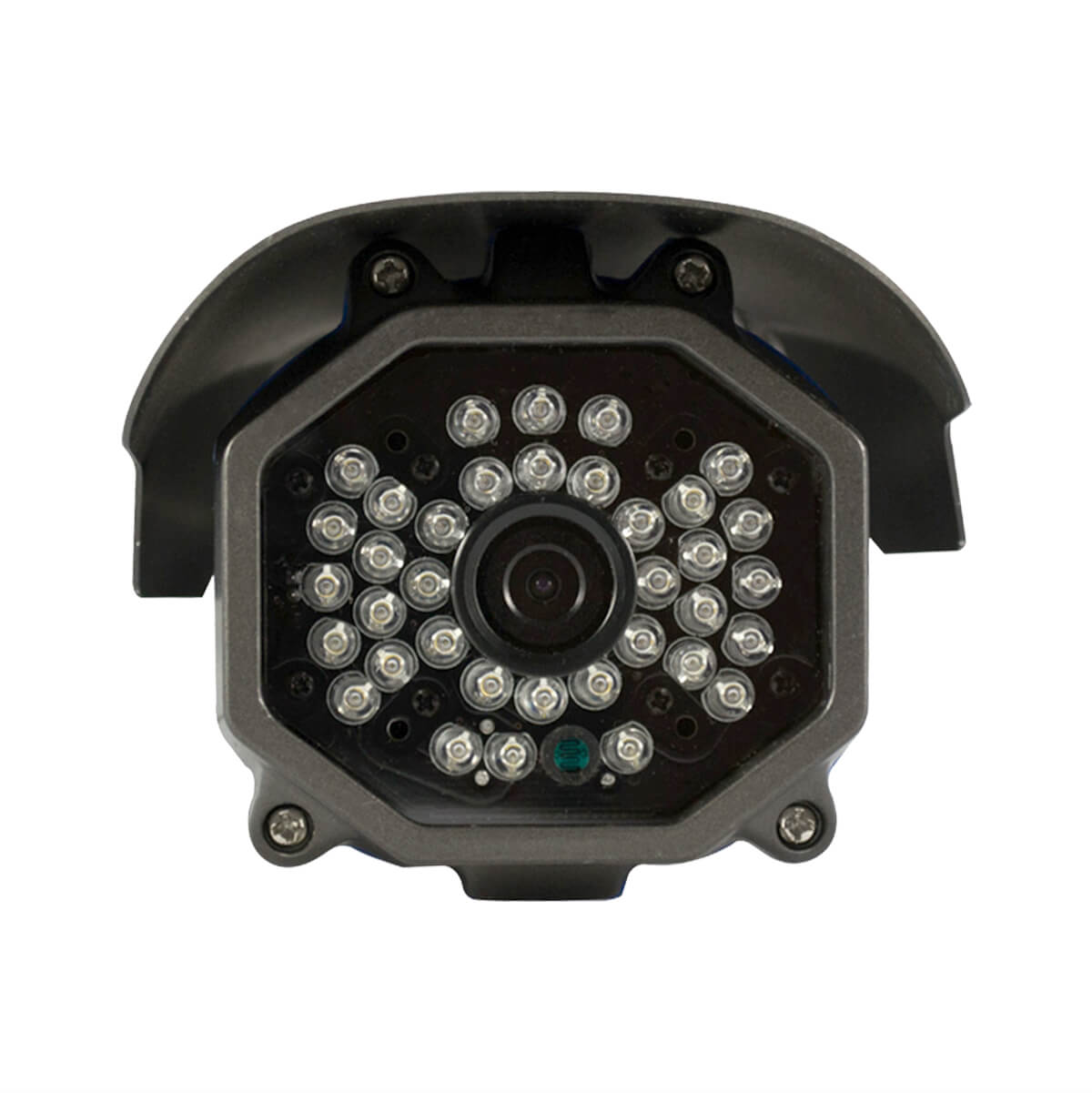

  • IR Bullet camera 1/3 SONY CCD 700TVL 3.6mm lens 36 LEDs 98fts IR IP66 - Image 8
  • IR Bullet camera 1/3 SONY CCD 700TVL 3.6mm lens 36 LEDs 98fts IR IP66 - Image 9
  • IR Bullet camera 1/3 SONY CCD 700TVL 3.6mm lens 36 LEDs 98fts IR IP66 - Image 10
  • - 1/3" SONY CCD Sensor, 700TVL.
  • - UTC function.
  • - Weatherproof: IP66.
  • - Power adapter not included.
  • - 36pcs LED, 98ft IR distance.
  • - 3.6mm lens.
  • Metal IR weatherproof bullet high-resolution camera with a 3.6mm lens, a 92? viewing angle, a 98ft range of infrared night vision, and 36 pieces 5mm LEDs each.

    Top of the line equipment regarding sensor and driver.

    This equipment is designed for outdoors usage and can be easily installed anywhere. Its resolution, sensitivity and wide opening angle are perfect for monitoring stores, offices, shops, warehouses and anywhere with little or no light.

    For best results, regarding image quality, use our servers and digital video recorders (DVR). See this camera online through any of our recording systems.

    Main features:
    - IR Weatherproof Camera.
    - Built-in 3.6 mm Lens.
    - Cable conceal inside of the all-oriented bracket.
    - 36pcs LEDs 5mm each, 98ft IR distance.
    - UTC function support.

    Power adapter not included.
    This camera does not include power supply since it depends on the installer or the consumer on how they will supply power. We sell individual power supply with different amps and centralized power supply. It all depends on the requirements needed for the installation. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.

    UTC function.
    This camera has the UTC function that can be accessed through a UTC control. This camera does not include it. We sell various types of UTC controls if needed. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.
    IR illumination gives your cameras night vision
    IR illumination gives your cameras night vision
    IR illumination provides an extra source of invisible infrared light for surveillance when existing ambient light is either not present or too dim. And it is designed to be easily integrated into the IP network surveillance system and powered by PoE.
    Weatherproof cameras in a year-round protection
    Our outdoor weatherproof cameras feature at least an IP66 weather rating. These outdoor cameras are built to keep out small particles such as dust and water, and are unaffected by a range of weather conditions including heavy rain and snow.
    Weatherproof cameras in a year-round protection
    UTC
    UTC
    The UTC support the camera OSD control via coaxial cable by using remote controller. This coaxtron functions let our end-user enjoy more easy & simple way to install camera and control camera OSD menu.
    Automatic Electronic Shutter (AES)
    To determine the overall video brightness, it is necessary for cameras to be able to measure an actual scene illumination, being auto-iris the most advanced and commonly used method nowadays. In order to get this, the camera measures the light level and then adjusts the motorized iris in the auto-iris Lens.
    Automatic Electronic Shutter (AES)
    Warranty: One (1) Year
  • IR Bullet camera 1/3 SONY CCD 700TVL 3.6mm lens 36 LEDs 98fts IR IP66
    General
    Brand LineMak
    Model LS-VE8052EF-UTC
    Sensor
    Resolution 700TVL
    Sensor 1/3" SONY 960H Exview CCD
    Effective pixels PAL: 960*582
    NTSC: 967*492
    Video
    Video format PAL / NTSC
    Video output 1.0Vp-p 75 ohm BNC
    Lens
    Lens 3.6mm / F1.2
    IR Range 98ft night vision
    LEDs 36pcs (5mm each)
    Minimum illumination 0 Lux (with LED on)
    Viewing angle 92°
    Environment
    Operation temperature -10°C~50°C
    14ºF~122ºF
    Storage temperature -30°C~80°C
    -22ºF~176ºF
    Weatherproof standard IP66 (protection against dust and strong water pressure)
    Power
    Power supply DC 12V
    Power consumption 500mA
    Appearance
    Color Dark gray
    Size 9.45(L) * 3.15(H) * 3.94(W) inches
    Weight 1.7 pounds
    Special function
    Electronic shutter speed (AES) PAL: 1/50~1/100000s
    NTSC:1/60~1/100000s
    Standard
    Synchronizing system Internal
    S/N Ratio >120dB WDR on
  • Instrucción
    File Size: 526.89 Kb
    Languages: Spanish
    File Type: PDF
    Instructions
    File Size: 437.43 Kb
    Languages: English
    File Type: PDF
