Dome camera 1/3 CMOS Pixelplus 1.0Mp/720p 3.6mm 30 LEDs, 82 fts IR
  • Dome camera 1/3 CMOS Pixelplus 1.0Mp/720p 3.6mm 30 LEDs, 82 fts IR - Image 1
  • - Ensure high-quality image transmission.
  • - Long distance transmission.
  • - Low cost.
  • - Power adapter not included.
  • - 1/3" Sensor CMOS Pixelplus, 1.0Mp
  • - 30pcs LEDs, 82ft IR distance.
Products recommendaded to work with this item:
dome camera 1/3 cmos pixelplus 1.0mp/720p 3.6mm 30 leds, 82 fts ir
+
dc12v 1a power adapter specially for security cameras
+
4 channel dvr hdcvi, h.264, bnc/vga/hdmi, audio 4ch in/4ch out
Price for all 3: $155.97

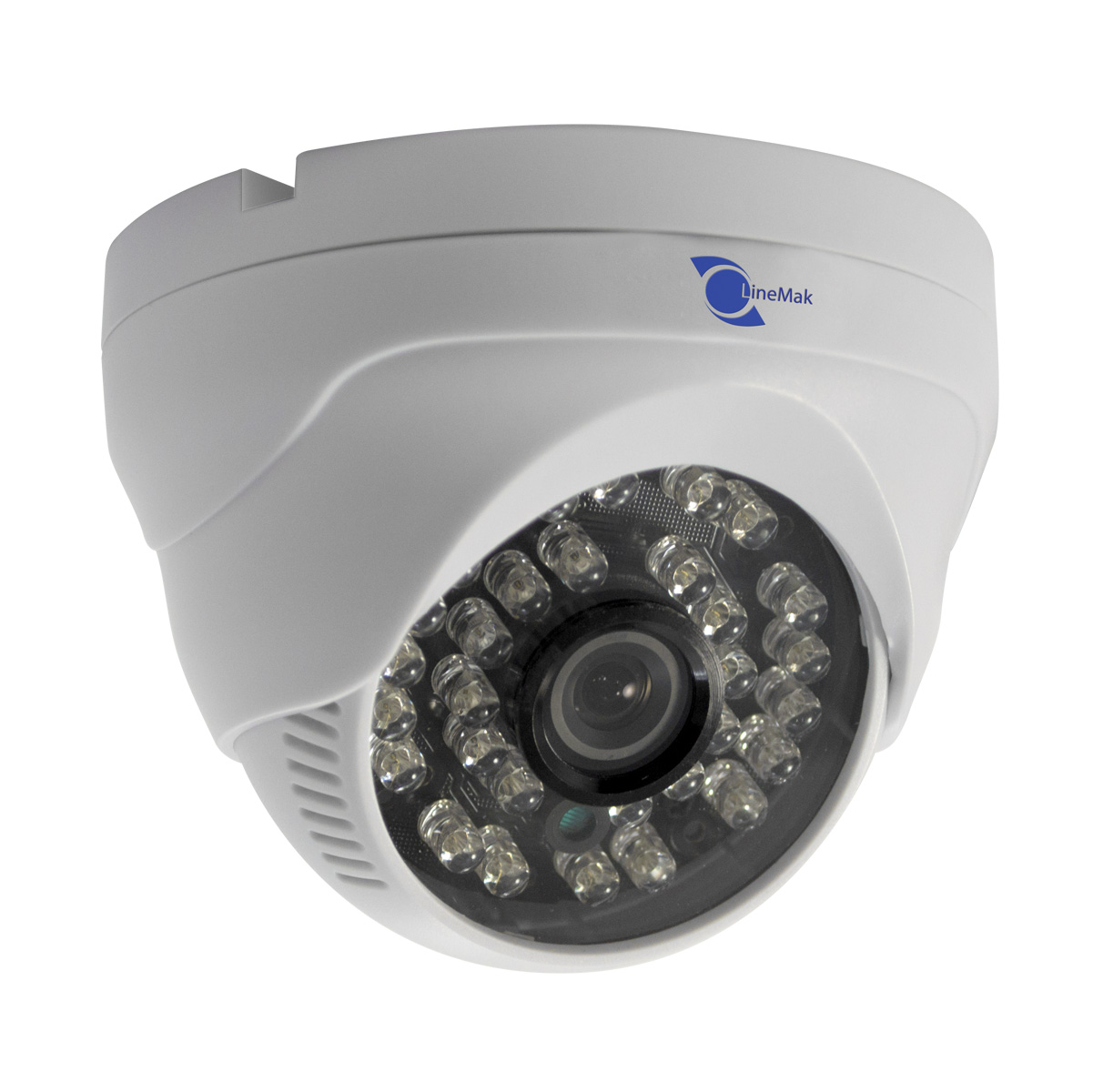

  • Plastic dome camera, with 3.6mm lens and a viewing angle of 92° which has an 82ft range infrared night vision, 30pcs LEDs 5mm each. Available in white.

    Top of the line equipment regarding sensor and driver technology.

    This equipment is designed for indoors usage and can be easily installed anywhere going unnoticed thanks to its size. Due to its slightly tilted crystal, the IR is not reflected on the surface. Its resolution, sensitivity and wide opening angle are perfect for monitoring stores, offices, shops, warehouses and anywhere with little or no light.

    Use any of our servers and Digital Video Recorders (DVR) for best results regarding image quality. See this camera online through any of our recording systems.

    Power adapter not included.
    This camera does not include power supply since it depends on the installer or the consumer on how they will supply power. We sell individual power supply with different amps and centralized power supply. It all depends on the requirements needed for the installation. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.

    Main features:
    - Ensure high-quality image transmission.
    HD-CVI avoids the interference of high frequency wireless electromagnetic radiation from the nature of the technical principle by using the low-frequency analog modulation technology, so that HD-CVI is able to guarantee high-quality image transmission, even under strong interference environment.
    - Long distance transmission.
    Compared to the traditional HD-SDI technology, HD-CVI also can transfer 720P and 1080P effective resolution of high-definition video, but HD-CVI has obvious advantages on the transmission distance, at least 500 meters by using the 75-3 cable with very low signal distortion.
    - Low cost.
    The upgrading of current HD-SDI devices can seamlessly switch to HD-CVI products and achieve full high-definition monitoring by replacing the CCTV camera and DVR.

    HD video
    HD video
    Large areas are covered by a single lens which straight-up great picture quality, design and features.
    True round-the-clock surveillance for illuminant/dark places
    This feature delivers a sharp image in low light and nighttime conditions. There is also real solution to day and night surveillance applications that deliver clear and sharp color images in illuminant areas and black and white images in dark areas using infrared illumination, without the need to refocus the lens.
    True round-the-clock surveillance for illuminant/dark places
    Monitoring 3G
    Monitoring 3G
    Monitors 3G work like a standard baby monitor system with an iOS device serving as a monitor in the baby's room or anywhere else the baby may be and a second device as the parent's listening station. Since having a baby requires constant monitoring, with a baby monitor 3g you will be able to watch over and provide them with safety and happiness
    IR illumination gives your cameras night vision
    IR illumination provides an extra source of invisible infrared light for surveillance when existing ambient light is either not present or too dim. And it is designed to be easily integrated into the IP network surveillance system and powered by PoE.
    IR illumination gives your cameras night vision
    Auto White Balance (AWB)
    Auto White Balance (AWB)
    Function seeking to compensate the backlight events in order to prevent the camera from dazzling with great intensity of light received and so produce an unsatisfactory image. AWB may be entirely sufficient for camera positions with non-traditional environmental illumination changes.
    Automatic Gain Control (AGC)
    Automatic gain control boosts the video signal coming from the imager to amplify and improve scene illumination.
    Automatic Gain Control (AGC)
    Back Light Compensation (BLC)
    Back Light Compensation (BLC)
    In the security cameras, the BLC is a function that seeks to compensate the backlight situations to prevent the camera dazzles with great intensity of light received and produce an unsatisfactory image.
    Automatic Electronic Shutter (AES)
    To determine the overall video brightness, it is necessary for cameras to be able to measure an actual scene illumination, being auto-iris the most advanced and commonly used method nowadays. In order to get this, the camera measures the light level and then adjusts the motorized iris in the auto-iris Lens.
    Automatic Electronic Shutter (AES)
    Warranty: One (1) Year
  • Dome camera 1/3 CMOS Pixelplus 1.0Mp/720p 3.6mm 30 LEDs, 82 fts IR
    General
    Brand LineMak
    Model LS-NCHAIR30HCV100
    Sensor
    Resolution 1.0Mp / 720p
    Sensor 1/3" Pixelplus CMOS
    Effective pixels 1280*720
    Video
    Video format PAL / NTSC
    Video output HD-CVI / 1-Ch BNC (1.0Vp-p, 75ohm)
    Frame rate PAL: 1920*1080@25fps / 1280*720@25fps / 1280*720@50fps
    NTSC: 1920*1080@30fps / 1280*720@30fps / 1280*720@60fps
    Lens
    Lens 3.6mm
    IR Range 82ft night vision
    LEDs 30pcs (5mm each)
    IR-CUT Filter Yes
    Minimum illumination 0.01Lux (F1.2, AGC ON) / 0 Lux (with LED on)
    Viewing angle 92°
    IR Power ON CDS Auto Control
    IR Status Under 10 Lux by CDS
    Environment
    Operation temperature -10°C ~ 45°C
    14ºF ~ 113ºF
    Storage temperature -30°C ~ 60°C
    -22ºF ~ 140ºF
    Working humidity 95% RH
    Power
    Power supply DC 12V
    Power consumption 400mA / 8W Max
    Appearance
    Size 3.55(D) * 2.76(H) inches
    Weight 4.94 ounces
    Special function
    Back Light Compensation (BLC) No
    Auto White Balance (AWB) Yes
    Electronic shutter speed (AES) 4/25s~1/45,000s (Auto)
    1/3s~1/100,000s, supported slow shutter
    Auto Gain Control (AGC) Yes
    Digital Noise Reduction (DNR) Yes
    Wide Dynamic Range (WDR) No
    Adaptive Tone Reproduction (ATR) No
    Mirror No
    High Light Compensation (HLC) No
    Calling routing system (CRS) No
    Standard
    LCD adjusment Sharpness, brightness, contrast, saturation, sharpness inhibition, a chroma suppression, gamma, switch
    Synchronizing system Internal
