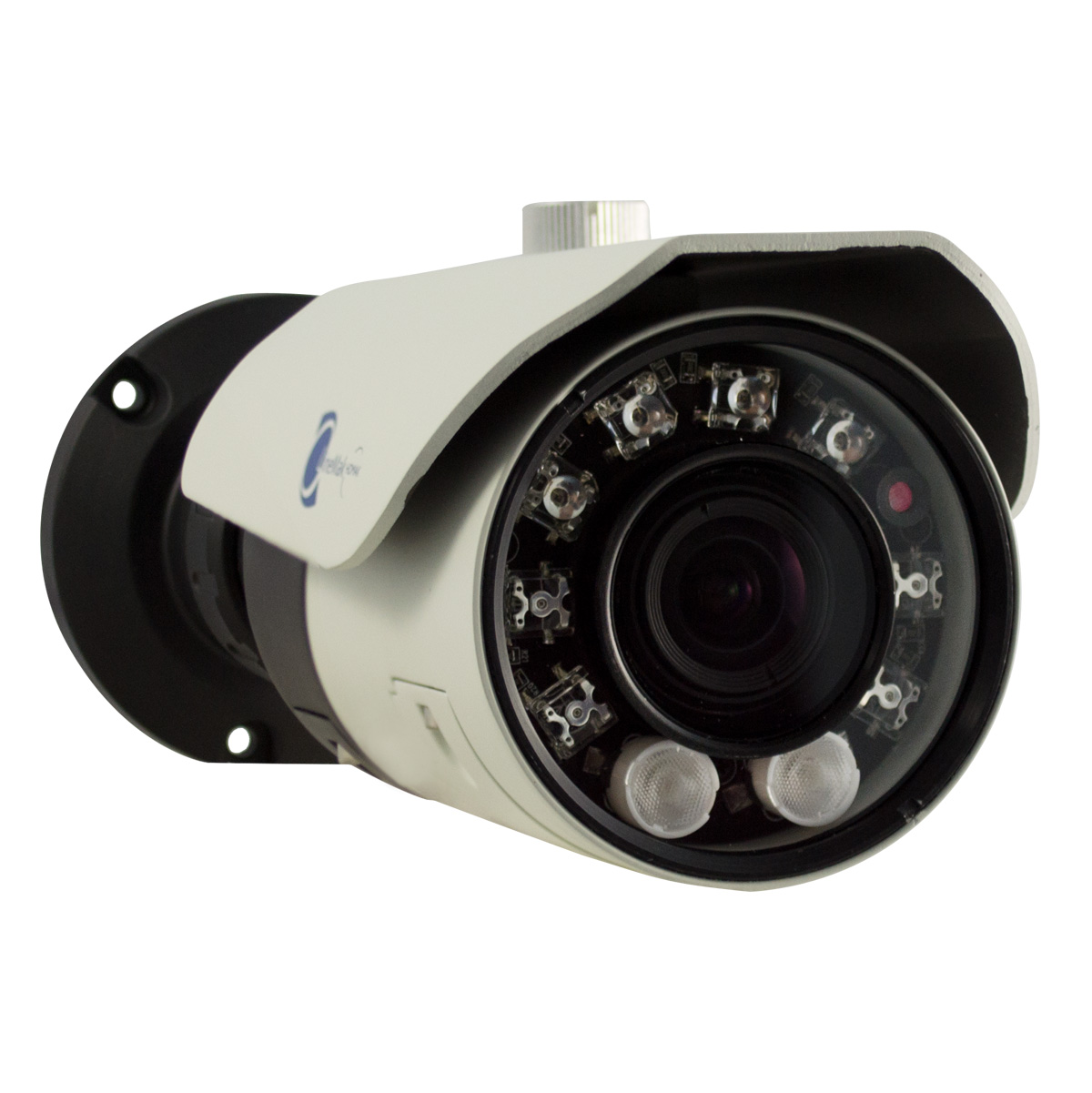

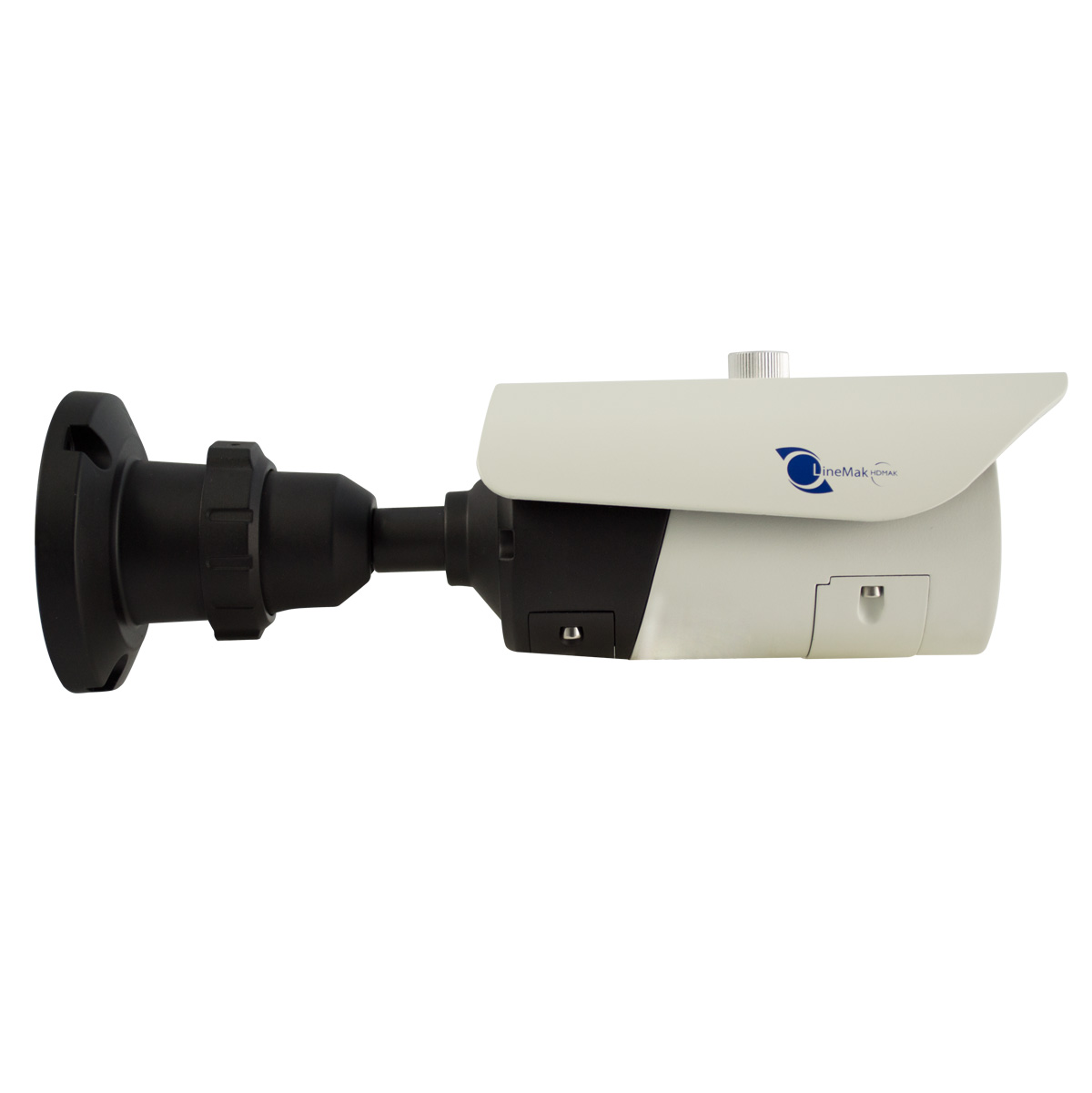

Linemak HD-MAK IP Bullet camera 1/2.8 SONY CMOS 2Mp 8 LED IK5/IP66 PoE
|
|
General
|
|
Brand | LineMak HD-MAK |
Model | LS-IPR54/14APDN |
Sensor
|
|
Resolution | 1080p |
Sensor | 1/2.8" Sony Exmor CMOS |
Effective pixels | 1920*1080 |
Video
|
|
Compression format | H.264 high profile (support baseline profile) / MJPEG |
Video output | Internal Service RCA output for BNC Video with IP Address OSD |
Frame rate | 30fps |
Bit rate | Stream1: 50Kbit/s~12Mbit/sStream2: 10Kbit/s~6Mbit/sStream3 (Fixed) |
Streams | Stream1: Full ResolutionStream2: VGA / D1 / CIF or QCIF selectableStream3: MJPEG |
Audio
|
|
Audio compression | G711 A-Law / G711 U-Law / RAW_PCM |
Audio input/output | Input: 1*RCAOutput: 1*RCA@1v Line Level |
Recording & Playback
|
|
Recording mode | Local Micro SD Memory, Remote FTP server, TCP/UDP CMS, RTSP connection (stream 1,2 or 3) |
Storage & Backup
|
|
SD Card slot | Supports Micro SD/HCSD card max 32G. |
Interface
|
|

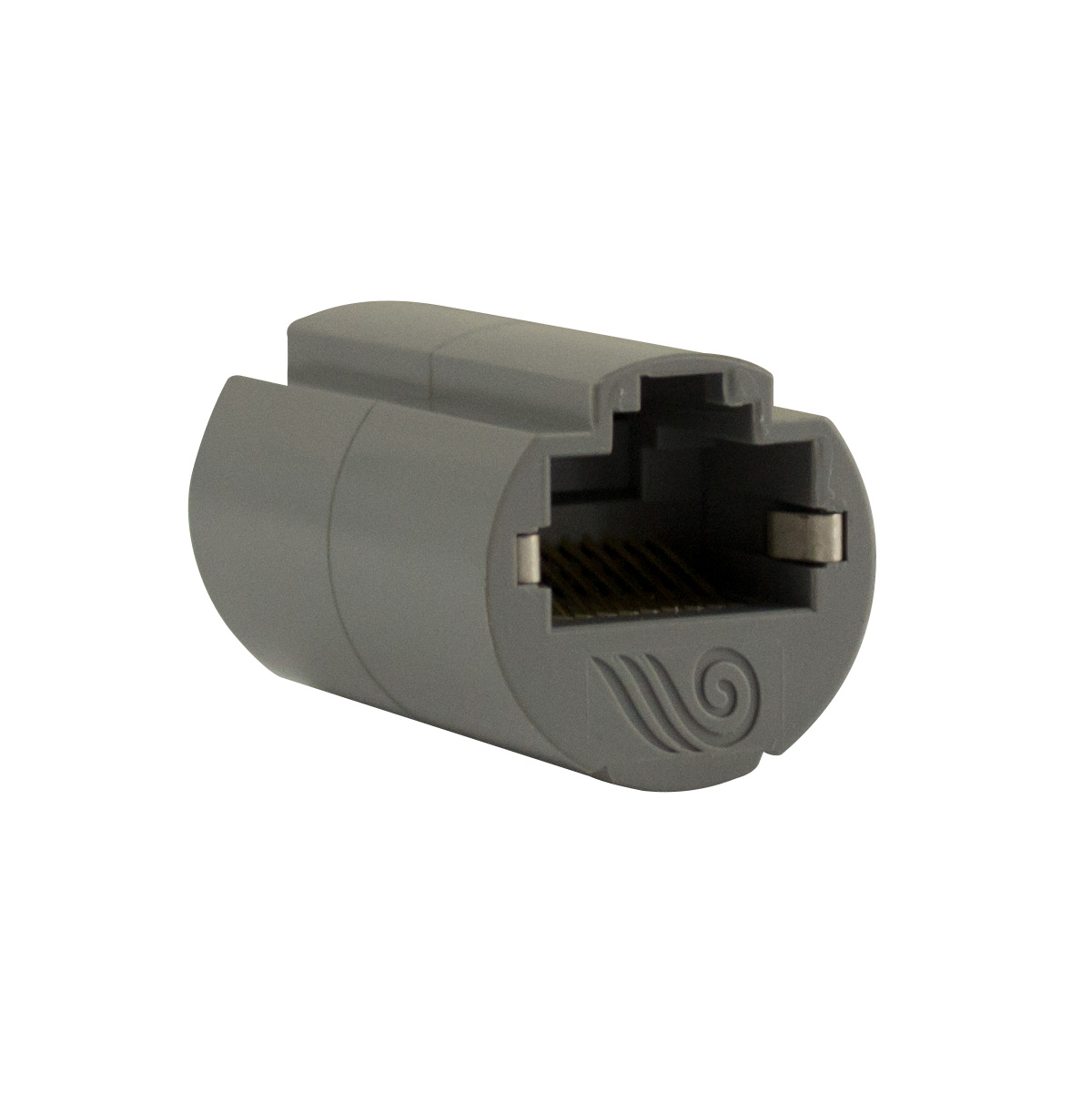

Network interface | 1*RJ45 (10/100 Base-T) |
Network
|
|
Network protocol | HTTP, TCP/IP (IPv4/IPv6 (DHCP/Fixed)), UDP/IP, RTSP, FTP, DHCP, NTP, PoE, NTP. Unicast and Multicast supported. Video streaming from SDK and NVMS / NVR software or #rd party applications. User ports setting for web port, RTSP port, and SDK control port and alarm port. Onvif v2.2 Profile-S listed |
RTSP Video | Standard RFC2326, Support QuickTime / VLC Player. User security authentication (Enabled / Disabled) |
Web lenguage | English, Chinese, Russian, Polish |
Lens
|
|
Lens | 3.3-12mm Varifocal IR Corrected |
IR Range | 65ft ~ 82ft IR night vision |

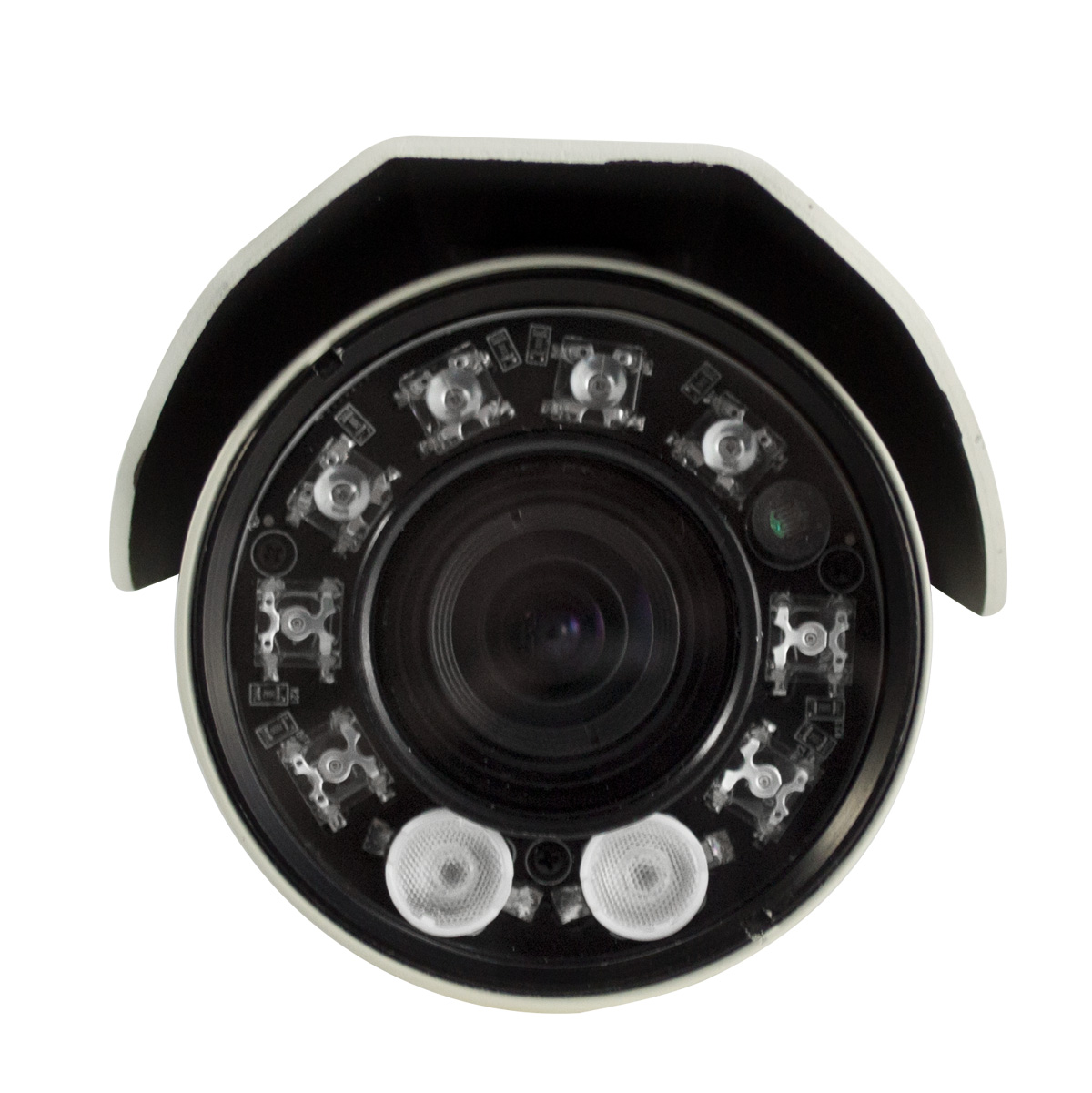

LEDs | 8pcs LEDs Super Flux and 2pcs LEDs Array. |
IR-CUT Filter | Yes |
Infrared wavelength | 850nm |
Minimum illumination | 0.1Lux/F1.2 (Color) (0 Lux IR LED On) |
Field view | 79.3° ~ 29.8° |
Viewing angle | 25° ~ 115° |
Security
|
|
Privacy mask | 5 User defined masking areas < 8% of total picture |
Environment
|
|
Operation temperature | -10°C ~ 55°C 14ºf ~ 131ºF |
Storage temperature | -20°C ~ 60°C -4ºF ~ 140ºF |
Weatherproof standard | IP66 (protection against dust and strong water pressure) |
Working humidity | 10% - 85% RH |
Vandalproof Resistance | IK5 |
Power
|
|
Power supply | DC 12V |
Power consumption | 560mA (IR LED on) |
PoE | Class 3 of Ethernet |
Appearance
|
|
Size | 10.24 (L) * 3.15 (H) * 2.76 (W) inches |
Weight | 1.87 pounds |
Special function
|
|
Electronic shutter speed (AES) | 1/5~1/50,0000, 50/60Hz software selectable |
Auto Gain Control (AGC) | Yes |
Standard
|
|
Brightness | Variable 0~100 |
Quality Setting | 1~9 (9 Highest) |
Orientation | Horizontal Mirror / Vertical Flip |
Text Overlay | Time / Date / Camera / Custom OSD |
Sharpness | Variable 0~100 |
Approvals | CE / FCC / RoHS Compliant |
